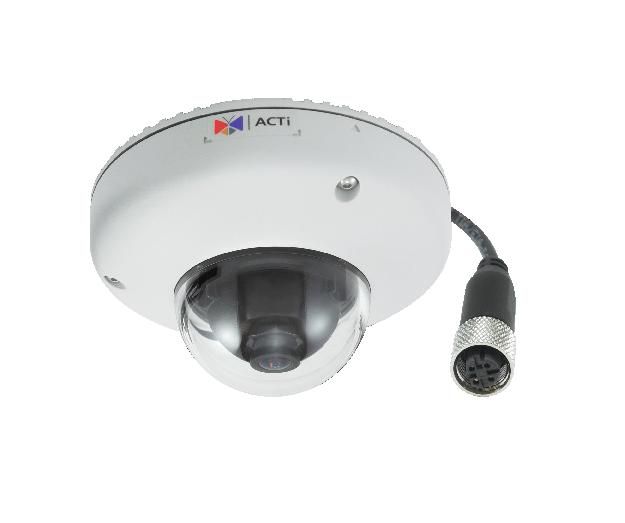

ACTi E936M 2 Megapixel Day/Night Outdoor Mini Dome Camera, M12, 2.55 mm Lens
SKU
E936M
Model No
E936M
$387.45
Product Highlights
- 2 Megapixel with 1080p
- Superior Low Light Sensitivity
- Fixed Lens with f2.55 mm / F2.2
- Extreme WDR (145 dB)
- 60 fps at 1920x1080
Speak to an expert
The E936M from ACTi is a 2MP outdoor mini dome camera designed for high-performance surveillance in various lighting conditions. With its exceptional low light sensitivity and extreme Wide Dynamic Range (WDR), this camera ensures clear images even in challenging environments. The compact design and robust build quality make it ideal for outdoor use, featuring weatherproof and vandal-proof specifications alongside built-in analytics for enhanced functionality.
ACTi E936M Camera Features
- 2 Megapixel Resolution: Offers high-definition 1080p video for clear and detailed surveillance.
- Superior Low Light Sensitivity: Captures high-quality images in low-light conditions, ensuring reliable performance at night.
- Fixed Lens: Equipped with a 2.55 mm lens that provides a wide field of view, perfect for expansive area coverage.
- Extreme WDR (145 dB): Delivers balanced images in high-contrast scenes, effectively managing glare and shadow.
- 60 fps at 1920x1080: Supports high frame rates for smooth video playback, ideal for capturing fast-moving subjects.
- Super Wide Angle: Maximizes surveillance area without compromising image quality.
- Robust Weatherproofing: Rated IP68 for water and dust resistance, IK10 rating for anti-vandal protection, and EN50155 compliance for vibration stability, ensuring durability in various environments.
- Built-in Analytics: Provides advanced monitoring features for improved security management.
ACTi E936M Detailed Camera Specifications
| Camera Type | 2 Megapixel Day/Night Mini Dome |
| Lens | Fixed 2.55 mm, F2.2 |
| Resolution | 1080p (1920x1080) |
| WDR | Extreme Wide Dynamic Range (145 dB) |
| Frame Rate | 60 fps at 1920x1080 |
| Field of View | Super Wide Angle |
| Ingress Protection | IP68 Weatherproof |
| Vandal Resistance | IK10 |
| Shock Resistance | EN50155 (M12 Connector) |
| Analytics | Built-in analytics for advanced monitoring |
SKU  | E936M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.55mm |
| Mount Type | Ceiling, Wall |
| Compression Method | M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 110 mm x 60 mm (4.3" x 2.4") |
| Electronic Shutter | 1/5 - 1/32,000 sec (manual mode); 1/5 - 1/32,000 sec (auto mode) |
| Image Device | 1/2.8 " Progressive Scan CMOS |
| Image Pixels-Effective | 1944 (H) x 1224 (V) (2.38 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.2 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 3.92W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 56 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 110.3° |
| Automatic White Balance | Automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
