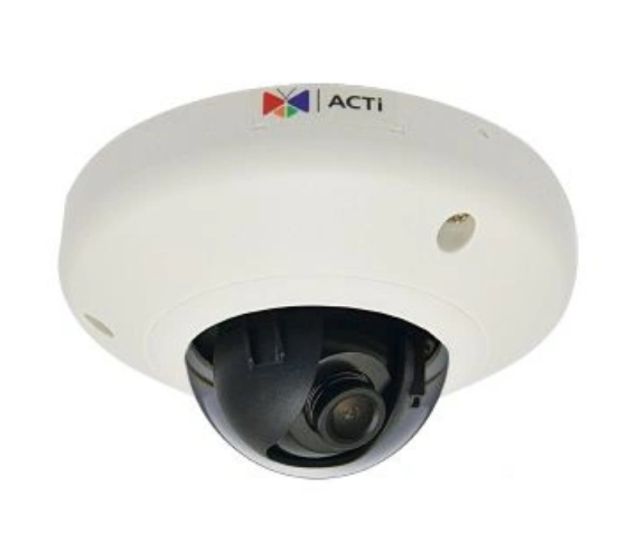

ACTi E914 5 Megapixel Indoor Mini Dome Camera, 1.27mm Lens
SKU
E914
Model No
E914
$473.85
Product Highlights
- 5 Megapixel
- f1.27 mm / F2.1
- Superior Low Light Sensitivity
- Extreme WDR (120 dB)
- 30 fps at 2592 x 1944
Speak to an expert
The ACTi E914 5 Megapixel Indoor Mini Dome Camera with a 1.27mm lens is designed for superior surveillance performance and flexibility. With its high-resolution imaging, exceptional low light sensitivity, and advanced features, this camera is perfect for securing indoor environments while ensuring you capture every detail.
ACTi E914 Camera Features
- 5 Megapixel: Provides crystal clear images, enabling detailed identification of subjects.
- f1.27 mm / F2.1 Lens: Offers a wide field of view, making it ideal for monitoring larger indoor spaces.
- Superior Low Light Sensitivity: Ensures clear images in low light conditions, allowing for 24/7 surveillance.
- Extreme WDR (120 dB): Balances lighting in high-contrast environments, preventing overexposure or underexposure.
- 30 fps at 2592 x 1944: Delivers smooth video playback with high resolution, ensuring you capture fast-moving subjects clearly.
- Built-in Analytics: Automates monitoring tasks, improving security efficiency with real-time alerts and intelligent video analysis.
ACTi E914 Detailed Specifications
| Feature | Details |
|---|---|
| Model | ACTi E914 |
| Resolution | 5 Megapixels |
| Lens | 1.27mm, F2.1 |
| Low Light Sensitivity | Superior |
| Wide Dynamic Range | 120 dB |
| Frame Rate | 30 fps at 2592 x 1944 |
| Analytics | Built-in |
SKU  | E914 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.27mm |
| Mount Type | Ceiling, Pendant, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 110 x 58 mm (4.33" x 2.28") |
| Electronic Shutter | 1/5" ~ 1/64000" (manual mode), 1/5" ~ 1/64000" (auto mode) |
| Image Device | 1/2.9" Progressive Scan CMOS |
| Image Pixels-Effective | 3096 (H) x 2202 (V) (6.82 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.1 (30 IRE, 2400 K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | 3.42 W |
| Privacy Zone | 8 Configurable Regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1x |
| S/N Ratio | 56Â dB |
| Video Output | RJ-45 |
| Digital Noise Reduction | 2DÂ +Â 3DÂ DNR |
| Angle of View | Horizontal Viewing Angle: 184°, Vertical Viewing Angle: 184° |
| Motion Detection Tracking | 10 regions |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
