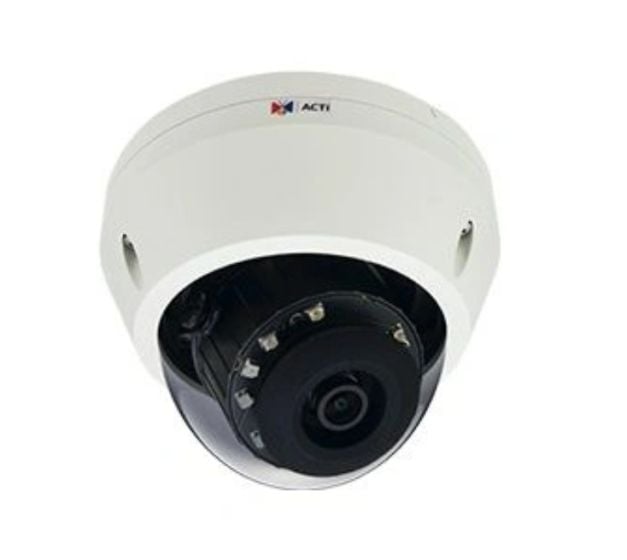

ACTi E79 5 Megapixel Outdoor IR Network Dome Camera, 2.1mm Lens
Model No
E79
$588.60
Product Highlights
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.1mm/F1.8
- Extreme WDR
- H.265 Compression
Speak to an expert
The E79 from ACTi is a powerful 5 megapixel outdoor IR network dome camera equipped with a 2.1mm lens, designed to deliver high-quality imaging and superior performance in various lighting conditions.
ACTi E79 Camera Features
- 5 Megapixel: Delivers high-resolution images for clear and detailed surveillance.
- Day & Night with Superior Low Light Sensitivity: Ensures optimal visibility in low light environments with adaptive IR LED for enhanced night vision.
- Fixed Lens (f2.1mm/F1.8): Provides a wide field of view, allowing for comprehensive monitoring of your surroundings.
- Extreme WDR: Wide Dynamic Range technology balances lighting differences, ensuring clear images in high-contrast scenes.
- H.265 Compression: Reduces bandwidth and storage requirements while maintaining image quality, ideal for extensive surveillance systems.
- Wide Angle: Covers a larger area for maximum surveillance efficiency, making it suitable for monitoring large spaces.
- Event Trigger, Response, and Notification: Customizable options to automate actions and receive alerts for critical events, enhancing security management.
ACTi E79 Detailed Camera Specifications
| Camera Type | Outdoor IR Network Dome |
| Megapixels | 5 MP |
| Lens | 2.1mm Fixed Lens |
| Low Light Sensitivity | Yes, with Adaptive IR LED |
| Wide Dynamic Range | Extreme WDR |
| Video Compression | H.265 |
| Field of View | Wide Angle |
| Event Management | Trigger, Response, and Notification Features |
SKU  | E79 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Mount Type | Ceiling, Pendant, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Electronic Shutter | 1/5-1/64000 second (manual mode, 60 Hz)? 1/5-1/64000 second (auto mode, 60 Hz) |
| Image Device | 1/2.9" Progressive Scan CMOS |
| Image Pixels-Effective | 3096(H)Â XÂ 2202(V)Â (6.82Â MP) |
| IR Wavelength | 700-1100nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400 K)? B/W: 0 lux at F1.8 (IR LED on) |
| Operating Humidity | 10%Â -Â 85%Â RH |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 11 W (PoE, IR on), 10.5 W (DC, IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| S/N Ratio | 56Â dB |
| Video Output | RJ-45 |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2DÂ +Â 3DÂ DNR |
| Angle of View | Horizontal Viewing Angle: 94.7°, Vertical Viewing Angle: 72.1° |
| Motion Detection Tracking | 10 included and excluded polygons regions |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
