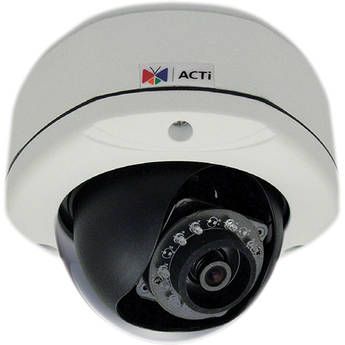

ACTi E73A 5 Megapixel IR Outdoor Day/Night Dome Camera, 2.93mm Lens
SKU
E73A
Model No
E73A
$372.60
Product Highlights
- 5MP image sensor capable of recording in up to 1920 x 1080 at 30 fps and up to 2592 x 1944 at 15 fps
- f2.93 mm / F2.0 fixed lens
- Day/Night mode with 10 IR LEDs
- 2-Way audio support 1
- Mechanical IR cut filter
Speak to an expert
The ACTi E73A 5 Megapixel IR Outdoor Day/Night Dome Camera is a high-performance surveillance solution designed to deliver crystal-clear images in both day and night conditions. With its robust 5MP sensor, impressive low-light capabilities, and durable weatherproof design, this camera ensures reliable monitoring in various environments while offering features like 2-way audio support and basic WDR for enhanced visibility.
ACTi E73A Camera Features
- 5MP Image Sensor: Capable of recording in resolutions up to 1920 x 1080 at 30 fps, ensuring high-quality images for effective surveillance.
- Fixed Lens: Featuring a 2.93mm / F2.0 lens for a wide field of view and optimal image clarity.
- Day/Night Mode: Equipped with 10 IR LEDs, allowing for clear night-time recordings with illumination levels as low as 0.1 lux.
- 2-Way Audio Support: Enables real-time communication, enhancing interaction and security control.
- Mechanical IR Cut Filter: Automatically switches for optimal color accuracy during day and night.
- Basic WDR: With 69 dB, it improves image quality in scenes with high contrast lighting.
- Weatherproof and Vandal Proof: Rated IP66 and IK10 for maximum durability in challenging conditions.
Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | ACTi E73A |
| Resolution | Up to 2592 x 1944 at 15 fps; 1920 x 1080 at 30 fps |
| Image Sensor | 5 Megapixel |
| Lens | 2.93mm / F2.0 fixed lens |
| IR LEDs | 10 for night vision up to 49.2’ (15m) |
| Low Light Performance | 0.1 lux for color recording |
| Audio Support | 2-Way Audio Communication |
| Weatherproof Rating | IP66 |
| Vandal Resistance Rating | IK10 |
| Basic WDR | 69 dB |
SKU  | E73A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.93mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 150 mm x 117 mm (5.9" x 4.6") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| IR LEDs | 10 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 6.31 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP66 |
| Angle of View | Horizontal Viewing Angle: 82.3° |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 30m |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
