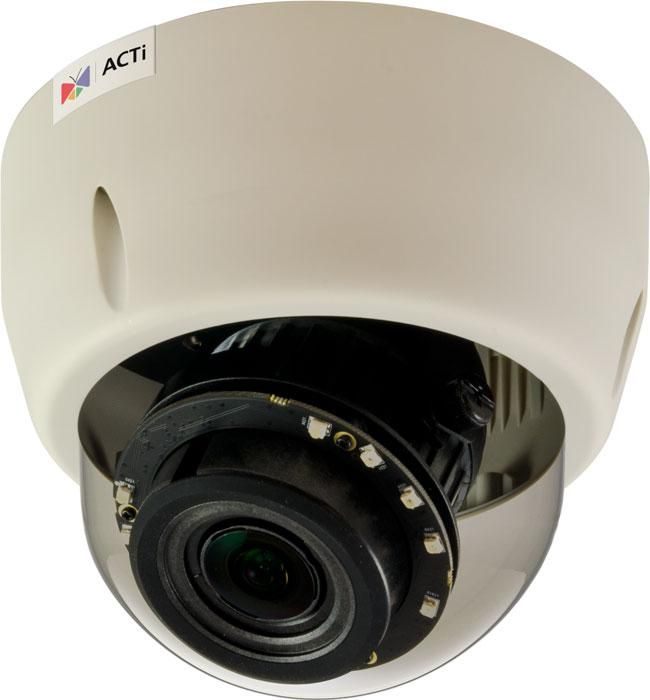

ACTi E618 3 Megapixel Indoor IR Network Vandal Dome Camera, 3.1-13.3mm Lens
SKU
E618
Model No
E618
$1,397.25
Product Highlights
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- 4.3x Zoom Lens with f3.1 - 13.3mm / F1.4 - 4.0, P-Iris, Auto Focus (for Installation)
- Superior WDR (110 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The E618 from ACTi is a 3Mp 4.3x Indoor Adaptive IR Network Vandal Dome, designed for high-performance indoor surveillance with exceptional image quality and durability.
ACTi E618 Camera Features
- 3 Megapixel Resolution: Delivers crystal clear images at 1080p, ensuring detailed monitoring in various lighting conditions.
- Day & Night Functionality: Equipped with Adaptive IR LED, this camera provides optimal performance during low-light situations.
- 4.3x Zoom Lens: Featuring a f3.1 - 13.3mm lens with P-Iris and Auto Focus, allowing for precise image framing and clarity at various distances.
- Superior Wide Dynamic Range (WDR): With a WDR of 110 dB, this camera can handle challenging lighting environments, capturing details in bright and dark areas simultaneously.
- High Frame Rate: Captures video at 30 fps at 1920 x 1080 resolution, ensuring smooth and clear video playback.
- Vandal Resistant: Built to IK09 standards, this camera can withstand impact, making it ideal for high-risk areas.
Detailed Camera Specifications for ACTi E618
| Feature | Details |
|---|---|
| Camera Type | Indoor Vandal Dome |
| Image Sensor | 3 Megapixel |
| Lens Type | 4.3x Zoom (f3.1 - 13.3mm) |
| Adaptive IR LED | Yes |
| WDR | 110 dB |
| Max Frame Rate | 30 fps (1920 x 1080) |
| Vandal Resistance | IK09 |
SKU  | E618 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 4.3X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 146 mm x 123.5 mm (5.7'' x 5.0'') |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3'' Progressive Scan CMOS |
| Image Pixels-Effective | 2048 (H) x 1536 (V) (3.15 MP) |
| IR LEDs | 10 LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 7.84 W (built-in heater and IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony Visca, Pelco-D, Pelco-P |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D+3D |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold and manual |
| IR Distance | 30 meter |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
