ACTi E616 5 Megapixel Indoor IR Network Vandal Dome Camera, 3.1-13.3mm
SKU
E616
Model No
E616
$584.55
Product Highlights
- 5 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- 4.3x Zoom Lens with f3.1 - 13.3mm / F1.4 - 4.0, P-Iris, Auto Focus (for Installation)
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
Speak to an expert

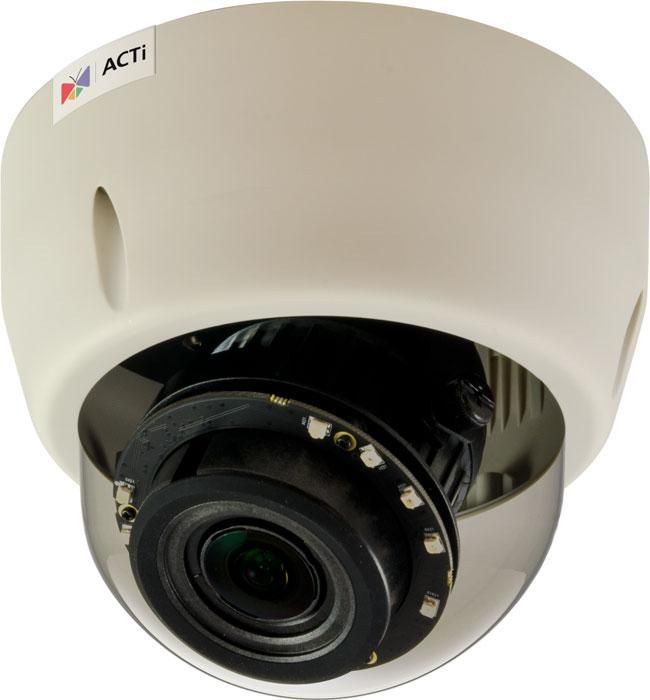

The E616 from ACTi is a 5Mp 4.3x Indoor Adaptive IR Network Vandal Dome that combines high-resolution imaging with durable design, perfect for indoor security applications.
ACTi E616 Camera Features
- 5 Megapixel with 1080p: Provides crystal-clear image quality, ensuring detailed surveillance footage for enhanced monitoring.
- Day & Night with Adaptive IR LED: This feature allows the camera to capture high-quality images even in low light conditions, ensuring 24/7 security.
- 4.3x Zoom Lens: The f3.1 - 13.3mm lens with P-Iris and Auto Focus enhances flexibility in various installation scenarios, allowing for customizable field of view.
- Basic WDR (74 dB): Wide Dynamic Range capability ensures better image quality in challenging lighting conditions, effectively managing bright and dark areas in the same scene.
- 30 fps at 1920 x 1080: Offers smooth video playback, which is crucial for identifying and reviewing incidents as they occur.
- Vandal Resistant (IK09): Designed to withstand physical impact, making it a reliable choice for high-security environments.
ACTi E616 Detailed Specifications
| Camera Type | Vandal Dome |
| Resolution | 5 Megapixel |
| Field of View | Varifocal 4.3x (f3.1 - 13.3mm) |
| Low Light Performance | Adaptive IR LED |
| Digital WDR | Basic WDR (74 dB) |
| Frame Rate | 30 fps at 1920 x 1080 |
| Impact Resistance | IK09 |
| Dimensions | Not specified |
SKU  | E616 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 4.3X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 146 mm x 123.5 mm (5.7'' x 5.0'') |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2'' Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) x 1944 (V) (5.04 MP) |
| IR LEDs | 10 LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | PoE Class 3 (IEEE802.3af) / 7.28 W (built-in heater and IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony Visca, Pelco-D, Pelco-P |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D+3D |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold and manual |
| IR Distance | 30 meter |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
