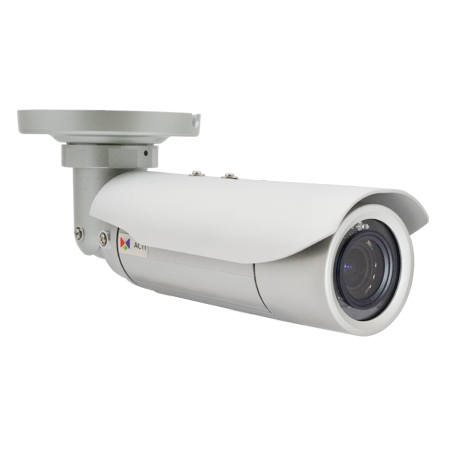

ACTi E46 3MP Full HD IR Superior WDR IP Vandal Bullet Camera, 2.8-12mm
Model No
E46
$770.85
Product Highlights
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Vari-focal Lens with f2.8-12mm/ F1.4
- Superior WDR (110 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The ACTi E46 3MP Full HD IR Superior WDR IP Vandal Bullet Camera offers outstanding image quality and versatile features, making it ideal for any surveillance setup. With a robust design tailored for both indoor and outdoor use, this camera combines high-resolution imaging with advanced infrared capabilities, ensuring clear footage day and night.
ACTi E46 Camera Features
- 3 Megapixel with 1080p: Captures high-resolution images for better clarity and detail, vital for identifying faces and license plates.
- Day & Night with Adaptive IR LED: Delivers excellent low-light performance, allowing for round-the-clock monitoring without sacrificing quality.
- Vari-focal Lens with f2.8-12mm / F1.4: Provides the flexibility to adjust the field of view according to specific surveillance needs, ensuring optimal coverage.
- Superior WDR (110 dB): Enhances image quality in challenging lighting conditions, balancing bright and dark areas for clearer footage.
- 30 fps at 1920 x 1080: Ensures smooth video playback, crucial for tracking fast-moving objects.
- Weatherproof (IP68) and Vandal Proof Metal Casing (IK10): Guarantees durability and protection against harsh environmental conditions and vandalism, making it suitable for diverse locations.
Detailed Specifications for ACTi E46
| Camera Type | Bullet Camera |
| Image Sensor | Progressive Scan CMOS |
| Max Resolution | 2048 x 1536 pixels |
| Lens Type | Vari-focal, f2.8-12mm / F1.4 |
| Infrared Range | Adaptive IR LED for night vision |
| WDR | Superior WDR (110 dB) |
| Frame Rate | 30 fps at 1920 x 1080 |
| Weather Resistance | IP68 Rated |
| Vandal Resistance | IK10 Rated |
SKU  | E46 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 66 mm x 291 mm (2.6" x 11.5") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3" Progressive Scan CMOS |
| IR LEDs | 15 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40 °C ~ 50 °C (-40 °F ~ 122 °F) |
| Power Consumption | 4.8 W (IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP68 |
| Angle of View | 70.5?~28.8? |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 30m |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
