ACTi E42B 3 Megapixel IR Outdoor Day/Night Bullet Camera, 2.8-12mm Lens
SKU
E42B
Model No
E42B
$396.90
Product Highlights
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Vari-focal Lens with f2.8-12mm/ F1.4
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
Speak to an expert

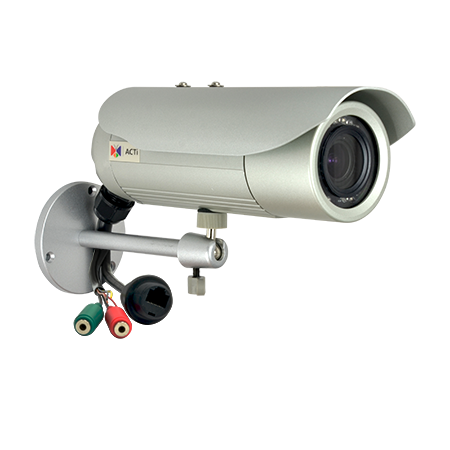

The ACTi E42B is a cutting-edge 3 Megapixel IR outdoor bullet camera equipped with a vari-focal lens, optimized for both day and night surveillance. Its adaptive IR technology and basic WDR ensure superior image quality in varying lighting conditions, making it an excellent choice for comprehensive security monitoring.
ACTi E42B Camera Features
- 3 Megapixel Resolution: Captures high-quality 1080p video, allowing for detailed surveillance footage.
- Day & Night Functionality: Features Adaptive IR LEDs for clear vision in the dark, ensuring 24/7 monitoring capabilities.
- Vari-focal Lens: Offers a focal range of 2.8-12mm, providing flexibility in field of view and zoom capabilities.
- Basic WDR (Wide Dynamic Range): With 74 dB, it improves image quality in scenes with high contrast lighting.
- High Frame Rate: Delivers up to 30 frames per second at 1920 x 1080 resolution for smooth video playback.
- Durability: IP68 weatherproof and IK10 vandal-proof metal casing ensures long-lasting performance in harsh conditions.
ACTi E42B Detailed Camera Specifications
| Camera Type | 3 Megapixel IR Bullet Camera |
| Resolution | 1920 x 1080 (1080p) |
| Lens Type | Vari-focal 2.8-12mm F1.4 |
| Day/Night Function | Yes, with Adaptive IR |
| WDR | Basic WDR (74 dB) |
| Frame Rate | 30 fps |
| Weatherproof Rating | IP68 |
| Vandal Proof Rating | IK10 |
SKU  | E42B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Corner, Pole, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 77 mm x 218 mm (3.03" x 8.58") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| IR LEDs | 15 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40 °C ~ 50 °C (-40 °F ~ 122 °F) |
| Power Consumption | 4.32 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP68 |
| Angle of View | 70.5° ~ 28.2° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 30m |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
