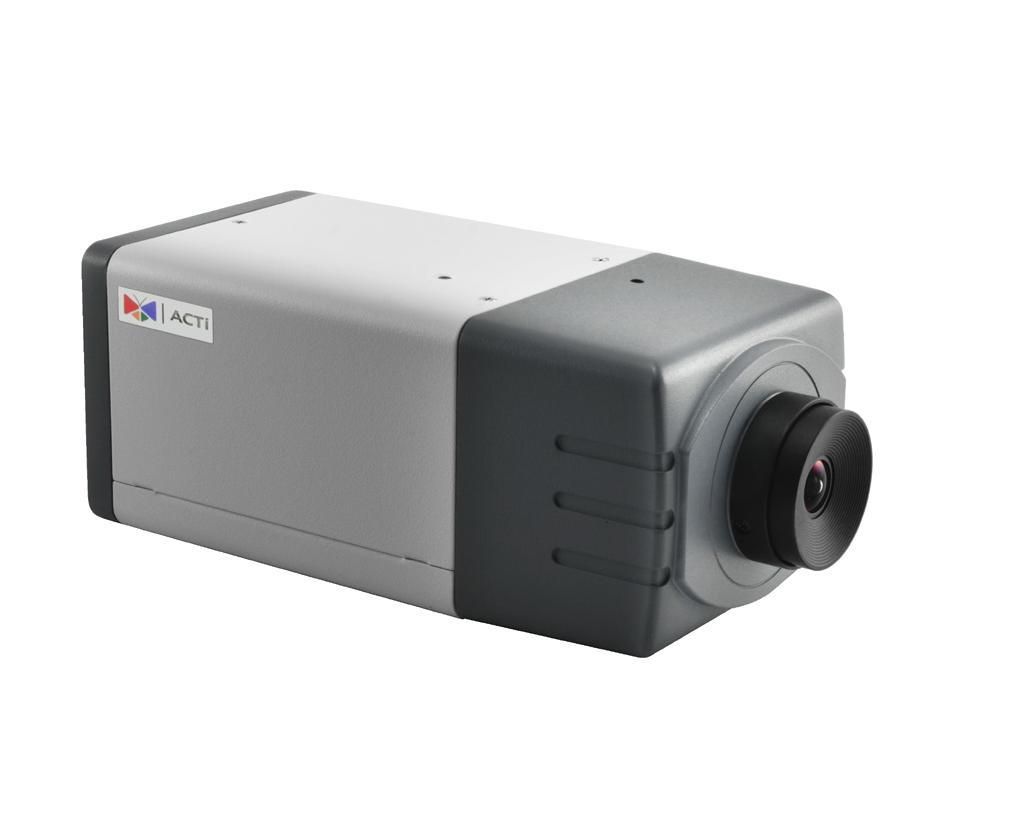

ACTi E217 2 Megapixel Day/Night Indoor/Outdoor Box Camera, 2.93mm Lens
SKU
E217
Model No
E217
$585.90
Product Highlights
- 2 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity
- Fixed Lens with f2.93mm / F2.0, Fixed Iris, Manual Focus
- Extreme WDR (145 dB)
- 60 fps at 1920 x 1080
Speak to an expert
The E217 from ACTi is a 2MP box day/night camera featuring extreme Wide Dynamic Range (WDR) and superior low light sensitivity, equipped with built-in analytics for enhanced surveillance capabilities.
ACTi E217 - Key Features
- Resolution: 2 Megapixel with 1080p - Provides high-resolution images for clear and detailed surveillance footage.
- Day & Night Performance: Superior Low Light Sensitivity - Ensures reliable performance in varying lighting conditions, perfect for 24/7 monitoring.
- Lens Specifications: Fixed Lens with f2.93mm / F2.0, Fixed Iris, Manual Focus - Offers flexibility in focus adjustment to capture the desired field of view.
- WDR Technology: Extreme WDR (145 dB) - Effectively captures details in high-contrast lighting situations, minimizing glare and shadow.
- Video Playback: 60 fps at 1920 x 1080 - Delivers smooth video playback at high frame rates, ideal for dynamic environments.
- Field of View: Super Wide Angle - Enables a broader view, reducing the number of cameras needed for extensive coverage.
- Analytics Integration: Built-in Analytics - Adds value with advanced features such as motion detection and tampering alerts for enhanced security.
ACTi E217 - Detailed Specifications
| Resolution | 2 Megapixel (1920 x 1080) |
| Lens Type | Fixed Lens (2.93mm / F2.0) |
| Low Light Performance | Superior low light sensitivity |
| WDR | Extreme WDR (145 dB) |
| Frame Rate | 60 fps |
| Field of View | Super Wide Angle |
| Analytics | Built-in Analytics |
SKU  | E217 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.93mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 142mm x 67mm x 65mm (5.6" x 2.6" x 2.6") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/2.8'' Progressive Scan CMOS |
| Image Pixels-Effective | 1944 (H) x 1224 (V) (2.38 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 7W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 101.3° |
| Motion Detection Tracking | 10 regions |
| Automatic White Balance | Automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
