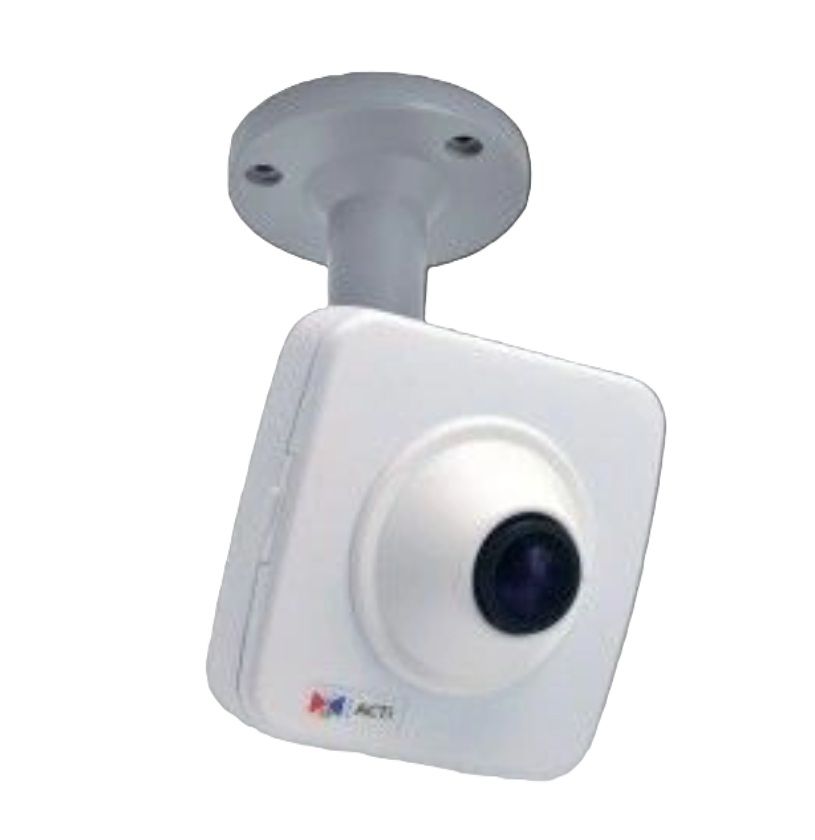

ACTi E16 10 Megapixel Indoor Fisheye Cube Camera, 1.37mm Lens
Model No
E16
$471.15
Product Highlights
- 10 Megapixel
- Fixed Lens with f1.37mm / F2.0
- Basic WDR (70 dB)
- 7 fps at 3648 x 2736
- 180/360° Fisheye View
Speak to an expert
The ACTi E16 10 Megapixel Indoor Fisheye Cube Camera delivers stunning visuals with its advanced features that cater to various indoor surveillance needs. With a compact design and a powerful 10MP resolution, this camera ensures clear and detailed imagery, making it perfect for monitoring large areas with minimal blind spots.
ACTi E16 Camera Features
- 10 Megapixel: Capture high-resolution images that provide exceptional clarity, ensuring every detail is visible for enhanced security.
- Fixed Lens with f1.37mm / F2.0: The fixed lens provides a wide field of view, allowing for effective monitoring without the need for complex setups.
- Basic WDR (70 dB): Offers improved visibility in varying lighting conditions, reducing glare and ensuring accurate image quality.
- 7 fps at 3648 x 2736: Supports smooth video playback and recording capabilities, suitable for capturing fast-moving subjects.
- 180/360° Fisheye View: Enables comprehensive surveillance by covering expansive areas, reducing the number of cameras needed for effective monitoring.
ACTi E16 Detailed Camera Specifications
| Model | ACTi E16 |
| Resolution | 10 Megapixel |
| Lens Type | Fixed Lens |
| Aperture | f1.37mm / F2.0 |
| WDR | Basic WDR (70 dB) |
| Frame Rate | 7 fps at 3648 x 2736 |
| Field of View | 180/360° Fisheye View |
SKU  | E16 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 10 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.37mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 96 mm x 96 mm x 45 mm (3.8" x 3.8" x 1.8") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/2.3" Progressive Scan CMOS |
| Image Pixels-Effective | 3856 (H) x 2764 (V) (10.66 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | 3.84 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 180° (overview area), 109.8° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
