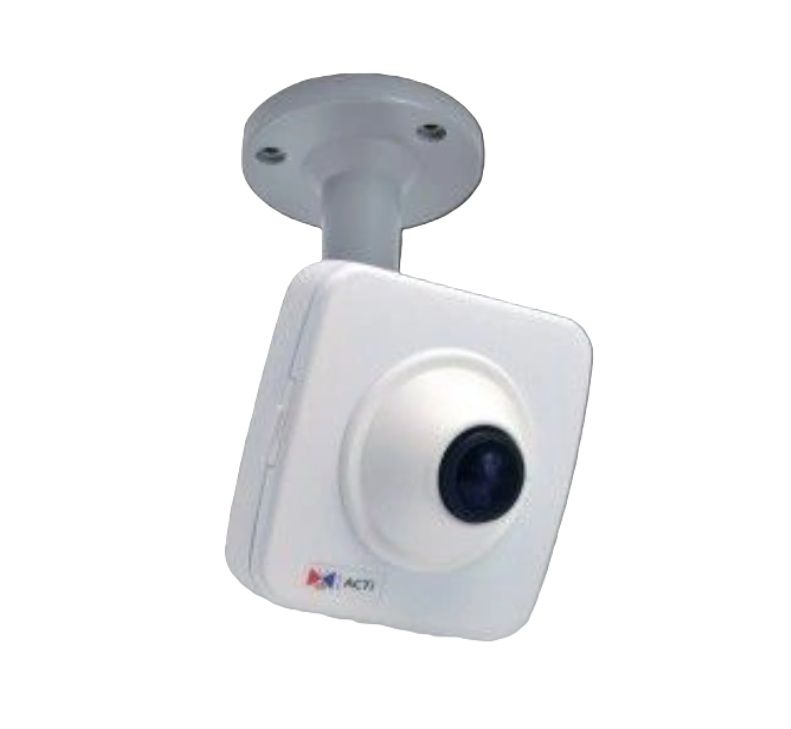

ACTi E15 5 Megapixel Indoor Fisheye Cube Camera, 1.19mm Lens
Model No
E15
$286.20
Product Highlights
- 5 Megapixel
- Fixed Lens with f1.19mm / F2.0
- Basic WDR (74 dB)
- 15 fps at 2592 x 1944
- 180/360° Fisheye View
Speak to an expert
The ACTi E15 5 Megapixel Indoor Fisheye Cube Camera offers exceptional image quality and a unique wide-angle perspective with its 180/360° fisheye view, making it an ideal choice for indoor surveillance. With features like Basic WDR and 15 fps performance, this camera ensures clarity in various lighting conditions, perfect for monitoring large areas effectively.
ACTi E15 5MP Fisheye Camera Features
- 5 Megapixel: Captures high-resolution images for clear identification and detail.
- Fixed Lens: The 1.19mm lens with f2.0 aperture allows for a wide field of view while maintaining image quality.
- Basic WDR: With a wide dynamic range of 74 dB, it enhances visibility in challenging light conditions.
- 15 fps at 2592 x 1944: Provides smooth video performance, ensuring motion is captured clearly without lag.
- 180/360° Fisheye View: Offers comprehensive coverage of indoor spaces, reducing the number of cameras needed for monitoring.
ACTi E15 Detailed Camera Specifications
| Resolution | 5 Megapixel (2592 x 1944) |
| Lens Type | Fixed, 1.19mm / F2.0 |
| WDR Capability | Basic WDR, 74 dB |
| Frame Rate | 15 fps |
| Field of View | 180/360° Fisheye |
SKU  | E15 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.19mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 96 mm x 96 mm x 45 mm (3.8" x 3.8" x 1.8") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) x 1944 (V) (5.04 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | 3.55 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 180° (overview area), 109.8° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
