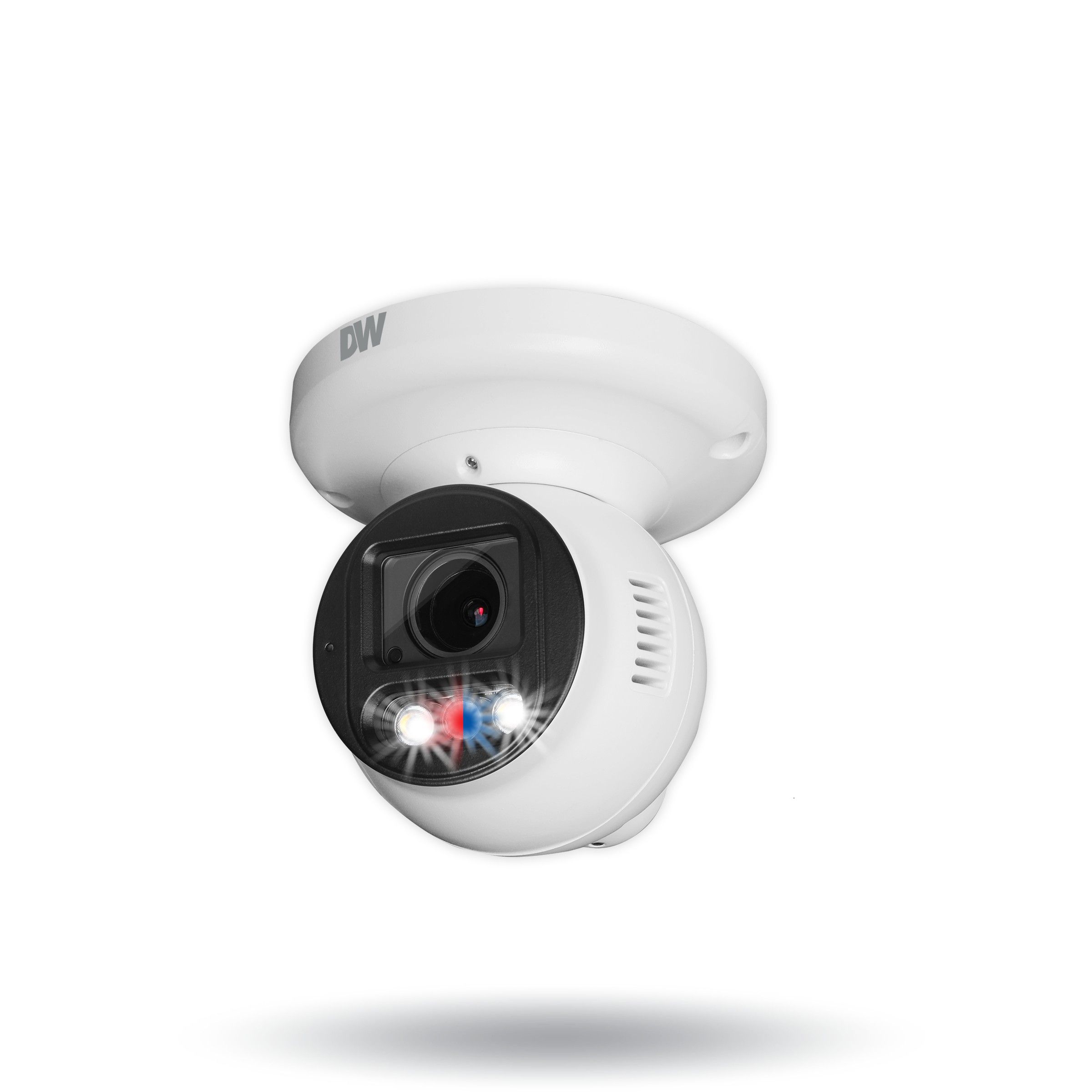

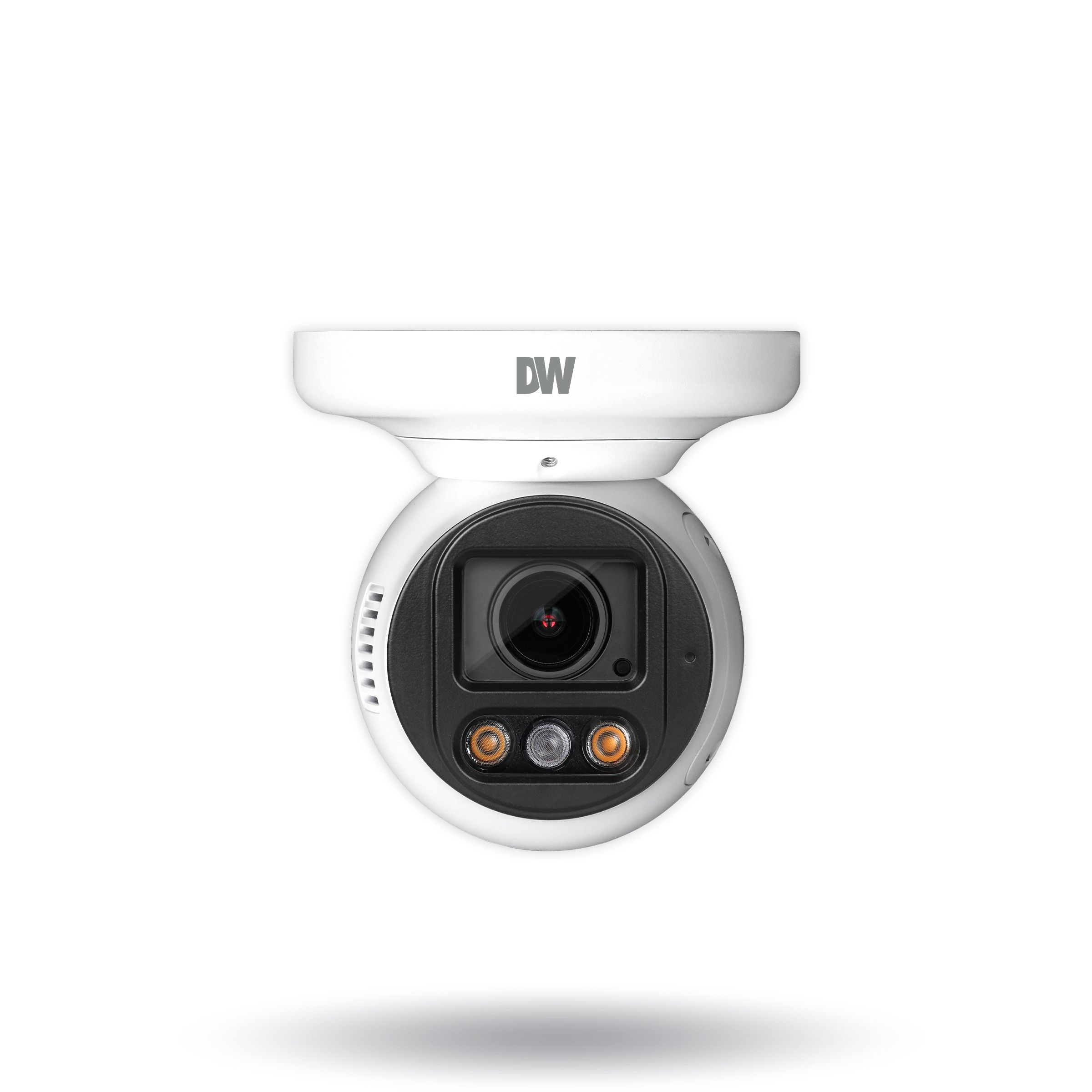

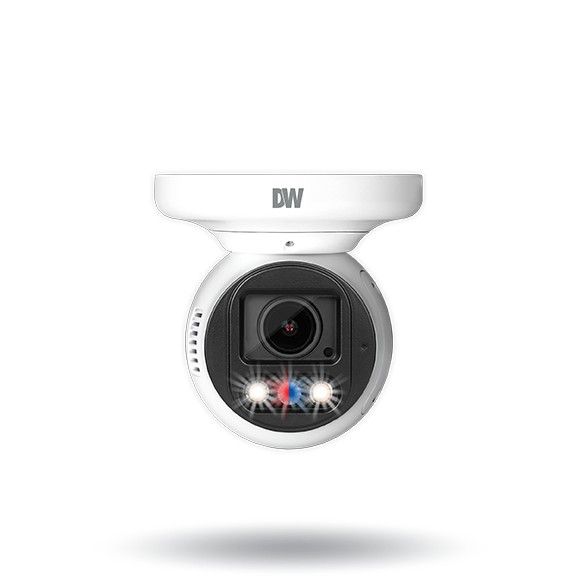

Digital Watchdog DWC-XSTD05MF 5 Megapixel Network IR Outdoor Dome Camera with 2.7 -12mm Lens
SKU
DWC-XSTD05MF

Digital Watchdog Model DWC-XSTD05MF

Digital Watchdog DWC-XSTD05MF 5 Megapixel Network IR Outdoor Dome Camera with 2.7 -12mm Lens

  • 5MP
  • 2.7–12mm
  • AI
  • Night Vision
  • Outdoor
Free shipping
Model No
DWC-XSTD05MF
$1,054.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5MP sensor at real-time 30fps
  • Star-Light Plus™color in near-total darkness technology
  • AI Deep Learning object detection
  • Create up to 40 separate detection zones.
  • Easy setup with no analytics calibration

Overview

The Digital Watchdog DWC-XSTD05MF is a cutting-edge 5 Megapixel Network IR Outdoor Dome Camera designed for high-performance surveillance. Featuring advanced AI technology, this camera captures detailed footage with exceptional color accuracy even in low-light conditions. With its robust design and usability, it serves as a comprehensive security solution, deterring crime while providing reliable evidence capture.

Digital Watchdog DWC-XSTD05MF Camera Features

  • 5MP sensor at real-time 30fps: Ensures high-quality video capture for detailed surveillance.
  • Star-Light Plus™ color in near-total darkness technology: Provides vibrant color images in low-light scenarios, enhancing visibility.
  • AI Deep Learning object detection: Automatically identifies and classifies objects for smarter surveillance management.
  • Create up to 40 separate detection zones: Offers customizable monitoring areas to focus on high-risk spots.
  • Easy setup with no analytics calibration: Simplifies installation, saving time and reducing complexity.
  • Seamless integration and control with DW Spectrum® IPVMS: Enhances system efficiency with streamlined management.
  • Reduce false alarms with multiple detection zones and logical rules: Increases reliability by minimizing unnecessary alerts.
  • Increase your recording storage with smart recording and no false alarms: Optimizes storage usage, enhancing system longevity.
  • 90' white light illumination and red/blue flash LEDs: Provides effective deterrence and visibility in the same unit.
  • Vari-focal p-iris lens with motorized zoom and autofocus: Allows for precise control of image focus, enhancing monitoring capabilities.
  • True Wide Dynamic Range (WDR): Captures clear images in challenging lighting conditions, improving incident review.
  • Simultaneous streaming and multiple codec options: Manages bandwidth effectively for versatile streaming needs.
  • Smart DNR™ 3D digital noise reduction: Enhances image clarity during low-light conditions, reducing ghosting artifacts.
  • Privacy zones cover sensitive areas: Protects locations from being captured in footage, ensuring confidentiality.
  • Two-way audio with built-in microphone and speaker: Facilitates direct communication and enhances monitoring capability.
  • Local SD card slot for local recording: Ensures data capture even during network failures, safeguarding evidence.
  • Alarm sensor input and relay output: Integrates with access control systems for comprehensive security solutions.
  • Web server built-in: Allows for easy management from any browser, improving user accessibility.
  • High-power PoE and DC12V: Simplifies installation with a single cable, reducing setup complexity.
  • NDAA/TAA compliant: Meets government standards for federal projects, enhancing reliability.
  • IP67- and IK10-rated camera housing: Designed to withstand harsh conditions, ensuring long-term durability.

Detailed Specifications for Digital Watchdog DWC-XSTD05MF

Camera Type5 Megapixel Network IR Outdoor Dome
Lens2.7 - 12mm vari-focal p-iris lens
Video Resolution5MP
Frame RateReal-time 30fps
Illumination90' white light and red/blue flash LEDs
AudioTwo-way audio with built-in speaker and microphone
InstallationHigh-power PoE and DC12V
StreamingSimultaneous streaming with multiple codec options
Housing RatingIP67 and IK10 rated
DimensionsStandard dome camera size
ComplianceNDAA/TAA compliant

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Flickerless
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF

Specifications

SKU  DWC-XSTD05MF
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  4.92" x 4.79" (125 x 121.7 mm)
Electronic Shutter    1/15 ~ 1/32000
Image Device    5MP 1/2.8" CMOS sensor, Star-Light Plus™ sensor
Minimum Scene Illumination  0 lux (white light), 0.03 lux (color)
Operating Humidity    10-90% (non-condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Power Consumption  DC12V: max 12W, 1A, PoE: max 15.8W, 287mA
Privacy Zone    16 programmable privacy masks
Protocols  DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Scanning System    Progressive scan
Weatherproof    IP67
Digital Noise Reduction    3D
Angle of View    89.9° - 31.5°
IR Distance  27m/90ft
