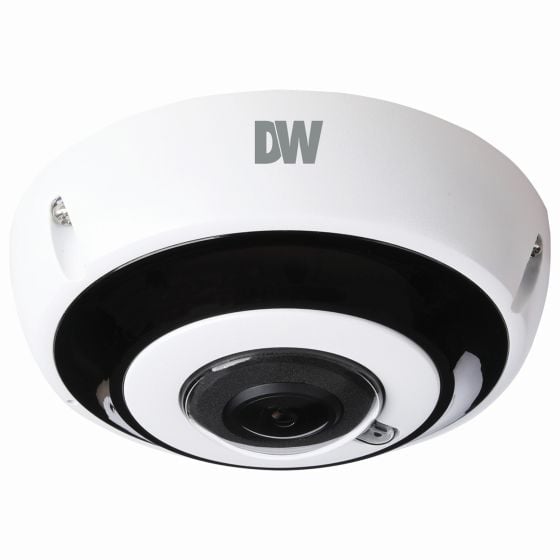

Digital Watchdog DWC-XFFA12Ai 12 Megapixel Network IP Indoor/Outdoor AI Fisheye Camera with 1.5mm Lens
SKU
DWC-XFFA12Ai
Model No
DWC-XFFA12Ai
$1,816.00
Product Highlights
- 12MP Ultra-HD Video – Capture crystal-clear images with exceptional detail for easier identification and investigation
- 360° Room Coverage – Monitor an entire area with a single camera, eliminating blind spots while reducing hardware costs
- AI People Detection \& Tracking – Accurately detect and follow people while minimizing nuisance alarms
- Intelligent Video Analytics – Receive actionable alerts for intrusion, line crossing, loitering, counting, and more
- Excellent Low-Light Performance – Capture clear video day or night with Star-Light Plus technology and Smart IR
Speak to an expert
The Digital Watchdog DWC-XFFA12Ai is a state-of-the-art 12 Megapixel Network IP indoor/outdoor AI fisheye camera designed to provide unmatched surveillance capabilities. With its ultra-HD video quality, comprehensive coverage, and advanced AI features, this camera ensures superior performance for all your security needs.
Digital Watchdog DWC-XFFA12Ai - Camera Features
- 12MP Ultra-HD Video: Capture crystal-clear images with exceptional detail for easier identification and investigation, ensuring security personnel have the information they need.
- 360° Room Coverage: Monitor an entire area with a single camera, eliminating blind spots and allowing for reduced hardware costs.
- AI People Detection & Tracking: Accurately detect and follow people while minimizing nuisance alarms, enhancing overall surveillance accuracy.
- Intelligent Video Analytics: Receive actionable alerts for intrusion, line crossing, loitering, counting, and more, improving response times and security management.
- Excellent Low-Light Performance: Capture clear video day or night with Star-Light Plus technology and Smart IR, ensuring reliable monitoring in various lighting conditions.
Digital Watchdog DWC-XFFA12Ai - Detailed Camera Specifications
| Camera Resolution | 12 Megapixels |
| Lens Type | 1.5mm Fisheye Lens |
| Viewing Angle | 360 Degrees |
| AI Capabilities | People Detection & Tracking |
| Video Compression | H.265/H.264 |
| Night Vision | Star-Light Plus with Smart IR |
| Analytics Features | Intrusion Detection, Line Crossing, Loitering Alerts, Counting |
| Indoor/Outdoor Capability | Yes |
| Power Source | PoE (Power over Ethernet) |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
SKU  | DWC-XFFA12Ai |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 4.92” x 2.28” (125 x 58mm) |
| Electronic Shutter | 1/15 ~ 1/32000 |
| Image Device | 1/2.3” 12.93MP Star-Light Plus sensor |
| Image Pixels Total | 4073(H) X 3176(V) |
| Minimum Scene Illumination | 0.52 lux (color), 0 lux (B/W) |
| Operating Humidity | 10–90% RH, (non–condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Power Consumption | 12V DC: 10.2W, 850mA, PoE: 11.5W, 239mA |
| Privacy Zone | 16 programmable privacy masks |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
| S/N Ratio | 50dB |
| Weatherproof | IK10, IP67 |
| Digital Noise Reduction | Smart DNR™ 3D-DNR |
| Angle of View | (HFoV/ VFoV) 185°/ 185° |
| IR Distance | 21m/70ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
DWC-XFFA12Ai-Specsheet DWC-XFFA12Ai-User-Manual
