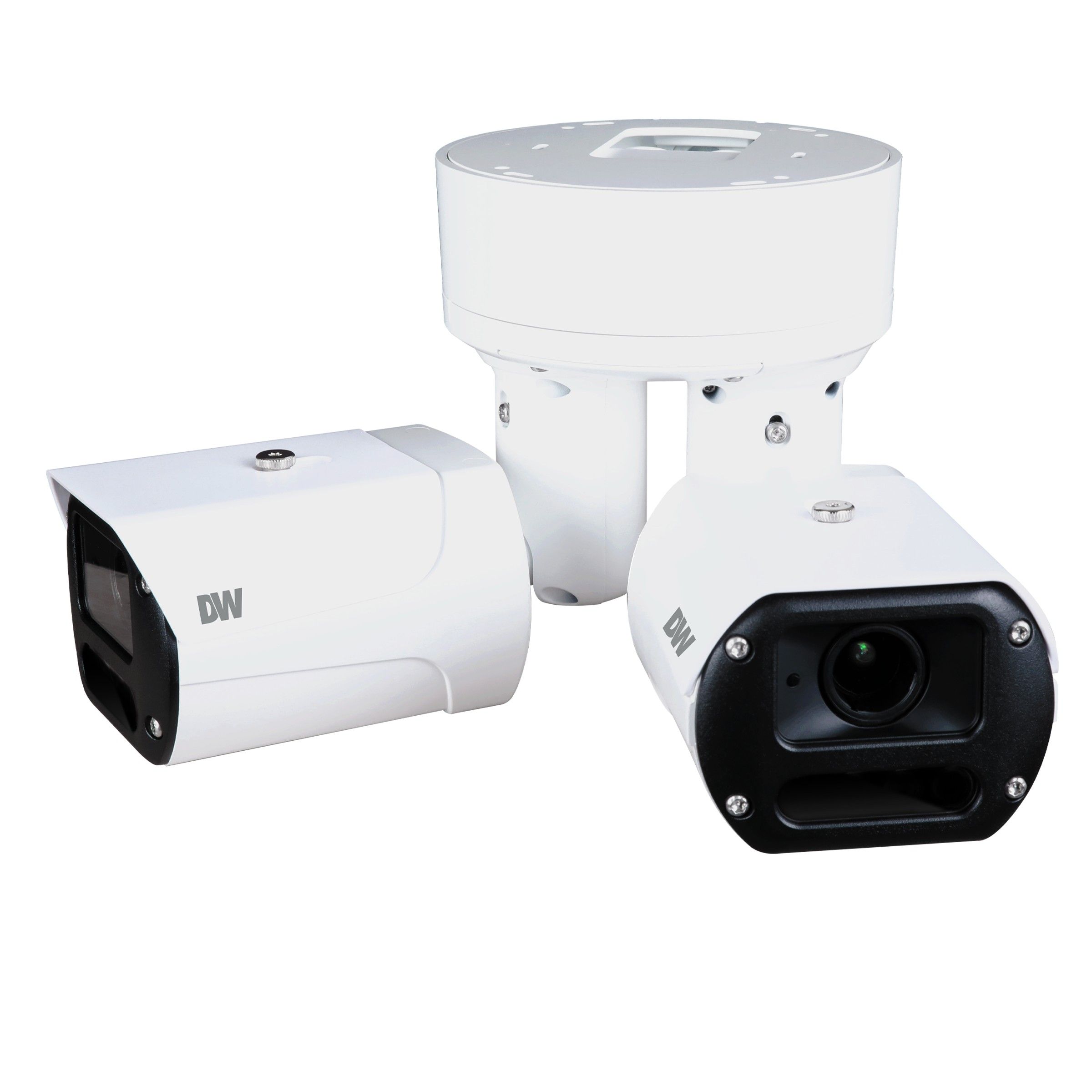

Digital Watchdog DWC-XDBJ10Mi 5 Megapixel Network IP MEGApix AI Dual Bullet Camera with 2.7-13.5mm Lens
SKU
DWC-XDBJ10Mi
Model No
DWC-XDBJ10Mi
$3,104.00
Product Highlights
- A dual-bullet IP camera with two independently adjustable 5MP cameras in one compact housing
- Flexible coverage: Supports 180° hallway views, 90° corner views or two targeted fields of view from a single installation
- Smart detection: Edge-based AI detects people and vehicles, supports customizable detection zones and helps reduce false alarms
- Clear video: Star-Light Plus color-in-near-darkness technology, true WDR, Smart DNR and 110’ Smart IR deliver usable images in challenging lighting
- Installer efficiency: Built-in junction box, PoE or DC12V power and single-device coverage help simplify cabling, setup and camera placement
Speak to an expert
The Digital Watchdog DWC-XDBJ10Mi is a revolutionary dual bullet camera equipped with cutting-edge 5 megapixel technology and advanced AI capabilities. This compact device delivers exceptional versatility and clarity, making it ideal for a variety of security applications while ensuring easy installation and minimal maintenance.
Digital Watchdog DWC-XDBJ10Mi Camera Features
- Dual-Bullet Design: A dual-bullet IP camera with independent 5MP cameras allows for customizable coverage without the need for multiple installations.
- Flexible Coverage Options: Supports 180° hallway views, 90° corner views, or two targeted fields of view, providing comprehensive surveillance from one camera.
- Smart Detection Technology: Edge-based AI recognizes people and vehicles, enabling customizable detection zones that help to minimize false alarms and enhance security.
- Advanced Video Clarity: Star-Light Plus color-in-near-darkness technology, true WDR, Smart DNR, and 110’ Smart IR ensure high-quality images even in challenging lighting conditions.
- Installer-Friendly Features: Integrated junction box and dual power options (PoE or DC12V) make installation straightforward and efficient, reducing setup time.
Digital Watchdog DWC-XDBJ10Mi Detailed Specifications
| Camera Type | 5 Megapixel Dual Bullet IP Camera |
| Lens | 2.7-13.5mm |
| Field of View | 180° Hallway, 90° Corner, Dual Target Views |
| AI Detection | Edge-based AI for People and Vehicle Detection |
| IR Range | 110 feet with Smart IR Technology |
| Installation | Built-in Junction Box, PoE/DC12V Power Options |
SKU  | DWC-XDBJ10Mi |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 12.83” x 6.73” (325.9 x 171.1mm) |
| Electronic Shutter | 1/15 ~ 1/32000 |
| Image Device | 1/2.8” 5.17M Star-Light Plus™ sensors (x2) |
| Image Pixels Total | 2608(H) X 1984(V) (x2) |
| Minimum Scene Illumination | 0.04 lux (color), 0 lux (B/W) |
| Operating Humidity | 10–90% RH, (non–condensing) |
| Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Power Consumption | 12V DC: max 17.4W, 1.45A, PoE: max 20.6W, 429mA |
| Privacy Zone | 16 programmable privacy masks |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
| S/N Ratio | 50dB |
| Weatherproof | IK10, IP67 |
| Digital Noise Reduction | Smart DNR™ 3D-DNR |
| Angle of View | HFoV: 31.6°~98.3° (x2) / VFoV: 23.5°~70.8° (x2) |
| Automatic White Balance | Auto |
| IR Distance | 34m/110ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
