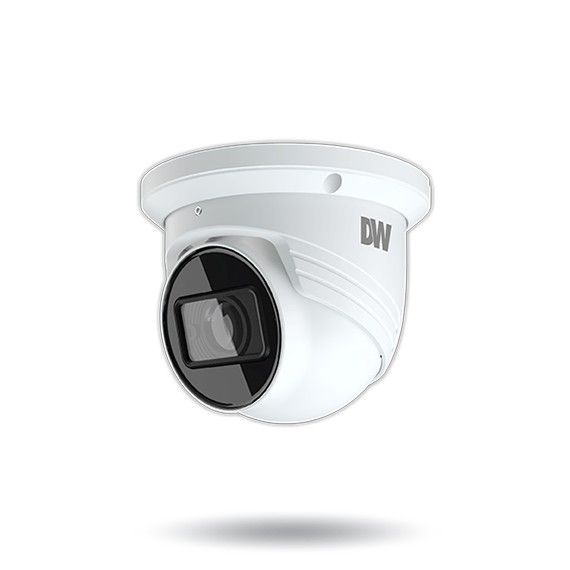

Digital Watchdog DWC-VSTB04Mi 4 Megapixel Network Outdoor IR Dome Camera with 2.8-12mm Lens
SKU
DWC-VSTB04Mi
Model No
DWC-VSTB04Mi
was $190.50 Special Price $186.69
Product Highlights
- 4MP 1/3″ image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
Speak to an expert
The Digital Watchdog DWC-VSTB04Mi is a high-performance 4 Megapixel Network Outdoor IR Dome Camera designed to enhance security without compromising image quality. Featuring a robust IP67 rating, this camera is perfect for outdoor use, ensuring durability against environmental elements. The 2.8-12mm vari-focal lens with motorized zoom allows for flexible viewing angles, while intelligent video analytics enhance surveillance capabilities, providing comprehensive monitoring to safeguard your property effectively.
Digital Watchdog DWC-VSTB04Mi Camera Features
- 4MP Resolution: Offers clear, high-definition images at real-time 30fps for comprehensive surveillance.
- 2.8~12mm Vari-Focal Lens: Equipped with motorized zoom and auto-focus, allowing for customized field of view.
- True Wide Dynamic Range: Balances extreme lighting conditions, ensuring optimal image quality in challenging environments.
- Multiple Codecs Support: Supports H.265, H.264, and MJPEG formats with dual-stream capabilities for flexibility in video management.
- Smart IR™ Technology: Provides 164ft infrared illumination for clear night vision, enhancing security after dark.
- Advanced Video Analytics: Includes line crossing, perimeter intrusion, and video tampering detection for proactive security alerts.
- Smart DNR™ 3D Noise Reduction: Minimizes noise for clearer images, especially in low-light conditions.
- True Day/Night Function: Incorporates a mechanical IR cut filter for accurate color reproduction in various lighting.
- Programmable Privacy Zones: Allows users to obscure sensitive areas within the camera’s view for added privacy.
- Weather Resistant: Rated IP67, ensuring dust-tight protection and waterproof up to 3 feet, ideal for outdoor deployments.
- Impact Resistant: IK 10-rated for protection against vandalism and impacts, enhancing durability.
- Power over Ethernet: Class 3 PoE and DC12V compatibility simplifies installation and reduces cabling complexity.
Detailed Specifications for Digital Watchdog DWC-VSTB04Mi
| Feature | Details |
| Image Sensor | 4MP 1/3” sensor |
| Frame Rate | Real-time 30fps |
| Lens | 2.8~12mm vari-focal, motorized zoom |
| Dynamic Range | True Wide Dynamic Range (WDR) |
| IR Range | 164ft Smart IR™ |
| Video Analytics | Line crossing, perimeter intrusion, and multiple tampering detections |
| Noise Reduction | Smart DNR™ 3D digital noise reduction |
| Storage | Micro SD/SDHC/SDXC class 10 card slot (card not included) |
| Operating Conditions | IP67 dust-tight and waterproof, IK 10-rated impact-resistant |
| Compliance | NDAA compliant, ONVIF conformant, profile S |
SKU  | DWC-VSTB04Mi |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 5.16" x 4.29" (131.1 x 109 mm) |
| Electronic Shutter | 1/30 ~ 1/100000 |
| Image Device | 4MP 1/3" CMOS sensor (x4) |
| Image Pixels Total | 2560 (H) x 1440 (V) |
| Minimum Scene Illumination | 0.0 lux (B/W), 0.005 lux (color) |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Power Consumption | DC12V: max 8.0W, 666.6mA, PoE: max 8.0W |
| Privacy Zone | 8 programmable privacy masks |
| Protocols | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Weatherproof | IP67 |
| Digital Noise Reduction | Smart DNR™ 3D Digital Noise Reduction |
| Angle of View | 92°~31° |
| IR Distance | 49m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
