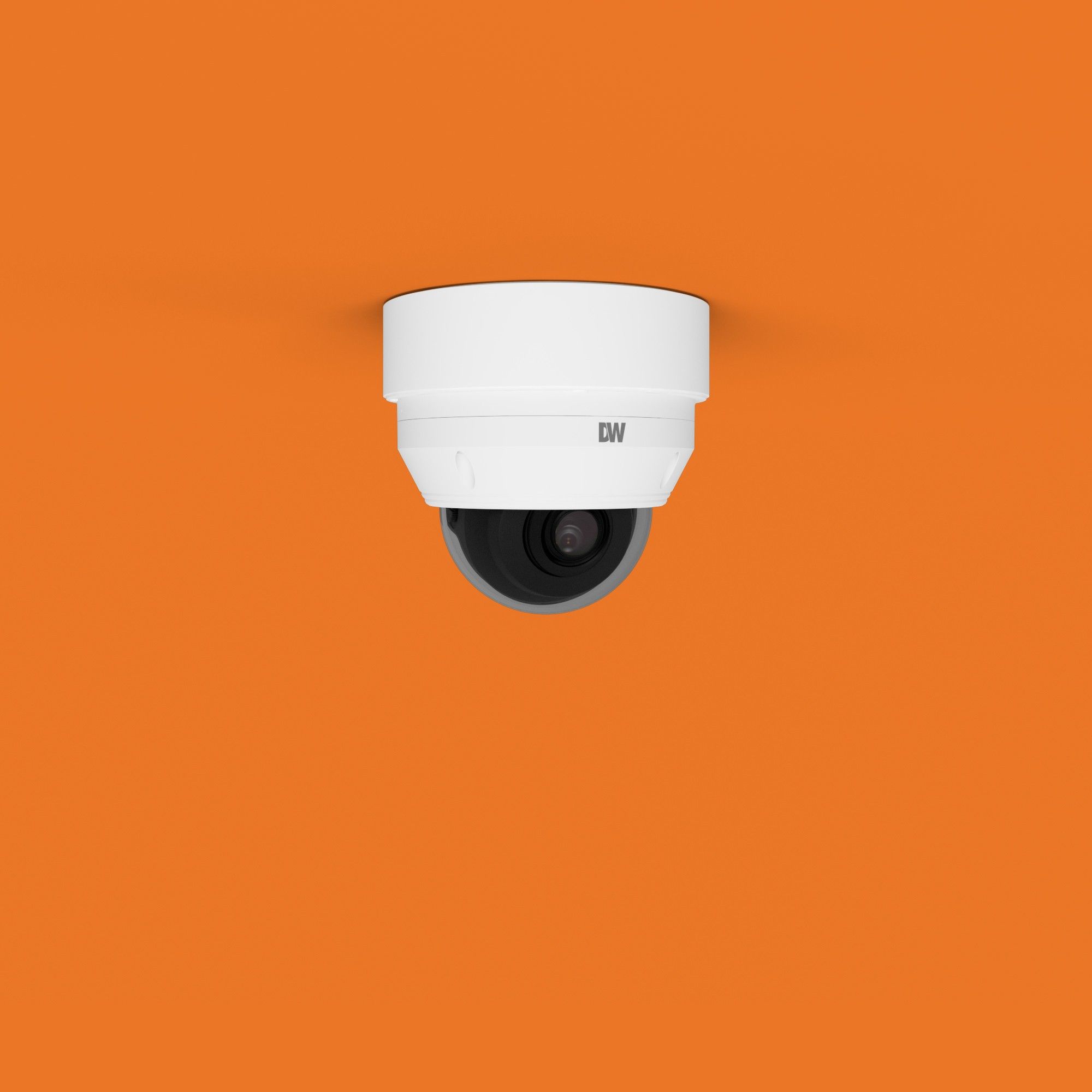

Digital Watchdog DWC-VSDG04Bi 4 Megapixel Network Outdoor IR Dome Camera with 2.8mm Lens
SKU
DWC-VSDG04Bi
Model No
DWC-VSDG04Bi
was $135.00 Special Price $132.30
Product Highlights
- 4MP 1/3″ image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR™
Speak to an expert
Introducing the Digital Watchdog DWC-VSDG04Bi, a 4 Megapixel Network Outdoor IR Dome Camera designed for superior surveillance with advanced features. This camera offers crystal clear imaging at 4MP resolution and real-time 30fps, making it ideal for capturing detailed footage in a variety of conditions. Its robust construction provides IP67-rated waterproofing and IK10 impact resistance, making it resilient for outdoor use. With built-in intelligence for video analytics, including line crossing and perimeter intrusion detection, this camera ensures maximum security for your premises.
Digital Watchdog DWC-VSDG04Bi Camera Features
- 4MP Image Sensor: Delivers high-resolution images for clear monitoring, ensuring no detail is missed in real-time at 30fps.
- 2.8mm Fixed Lens: Provides wide coverage for expansive areas, enhancing your ability to monitor larger spaces efficiently.
- True Wide Dynamic Range (WDR): Optimizes visibility in varying light conditions, allowing clarity in both bright and dark scenes.
- Multiple Codecs: Supports H.265, H.264, and MJPEG with simultaneous dual-stream, ensuring flexibility and better storage efficiency.
- Smart IR™: 100ft range ensures effective night vision capabilities, enhancing surveillance during low-light conditions.
- Intelligent Video Analytics: Includes line crossing, perimeter intrusion, and tampering detection, enhancing security through proactive alerts.
- Smart DNR™: 3D digital noise reduction technology improves image clarity in varied lighting, reducing graininess.
- True Day/Night Functionality: Mechanical IR cut filter allows seamless transition between day and night modes for continuous monitoring.
- Weather Resistance: With IP67 rating, the camera is dust-tight and waterproof, suitable for outdoor installations in diverse climates.
- IK10 Impact Resistance: Built to withstand harsh environments and vandalism, ensuring long-lasting durability.
- ONVIF Compliance: Ensures compatibility with various open platform solutions, facilitating flexible system integration.
- NDAA Compliance: Gives peace of mind knowing it adheres to national security standards.
- Power over Ethernet (PoE): Simplifies installation with a single cable for power and data, reducing wiring complexity.
Digital Watchdog DWC-VSDG04Bi Detailed Specifications
| Feature | Details |
| Image Sensor | 4MP 1/3” image sensor |
| Frame Rate | Real-time 30fps |
| Lens | 2.8mm fixed lens |
| WDR | True Wide Dynamic Range |
| Night Vision | Smart IR™ 100ft range |
| Audio Input | Built-in microphone |
| Storage | Micro SD/SDHC/SDXC class 10 card slot (card not included) |
| Power Supply | PoE class 2 and DC12V |
| Weather Rating | IP67 dust-tight and waterproof |
| Impact Resistance | IK 10-rated impact-resistant |
| Compliance | ONVIF conformant, NDAA compliant |
SKU  | DWC-VSDG04Bi |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 4.59" x 3.54" (116.6x 90 mm) |
| Electronic Shutter | 1/30 ~ 1/100000 |
| Image Device | 4MP 1/3" CMOS sensor (x4) |
| Image Pixels Total | 2560 (H) x 1440 (V) |
| Minimum Scene Illumination | 0.0 lux (B/W), 0.005 lux (color) |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Power Consumption | DC12V: max 4.5W, 375mA, PoE: max 4.5W |
| Privacy Zone | 8 programmable privacy masks |
| Protocols | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Weatherproof | IP67 |
| Digital Noise Reduction | Smart DNR™ 3D Digital Noise Reduction |
| Angle of View | 94° |
| IR Distance | 49m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
