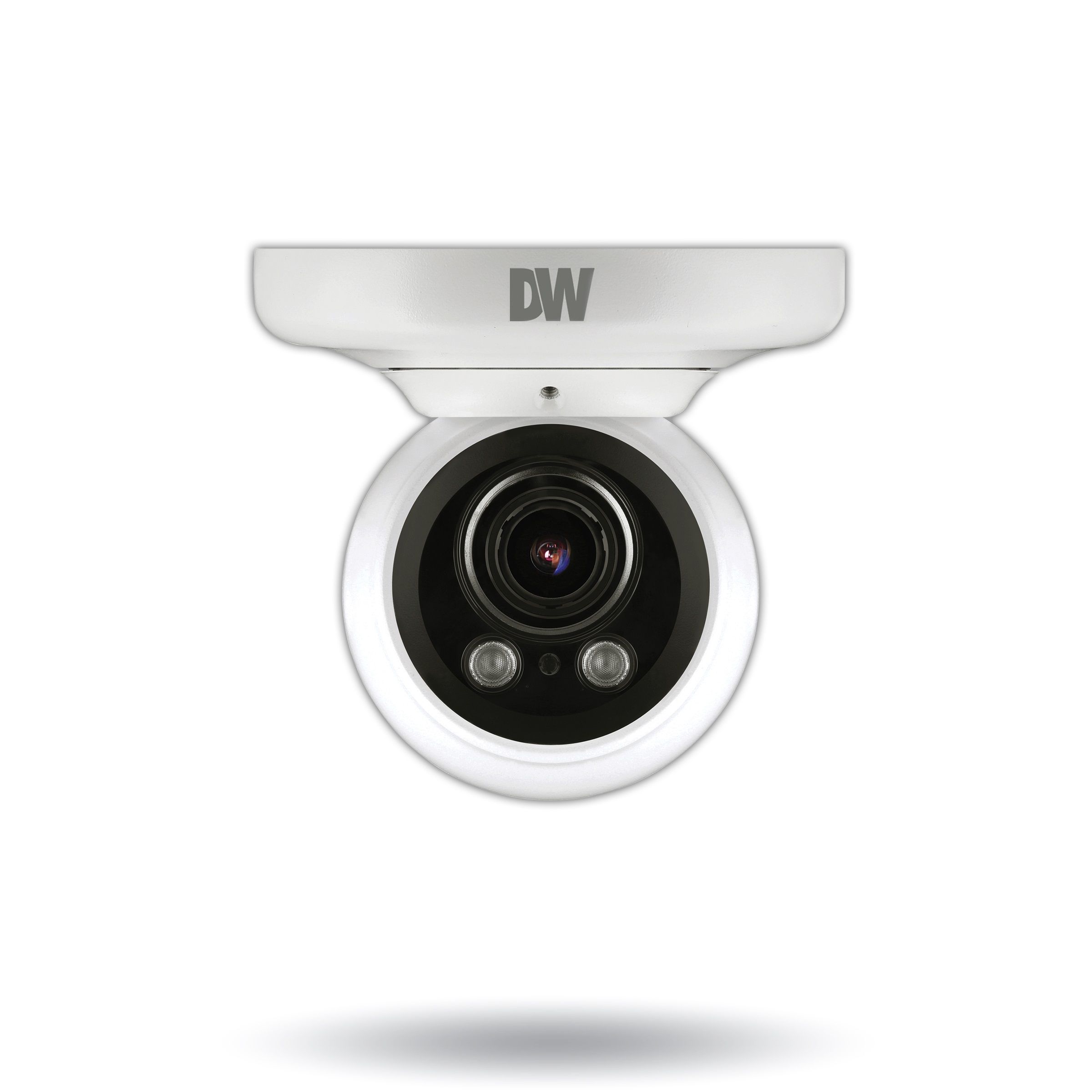

Digital Watchdog DWC-VA883WTIR 4K HD-TVI/CVI/Analog IR Vandal Ball Camera, 3.6-10mm Lens
SKU
DWC-VA883WTIR
Model No
DWC-VA883WTIR
was $294.50 Special Price $288.61
Product Highlights
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
Speak to an expert
Introducing the Digital Watchdog DWC-VA883WTIR 4K HD-TVI/CVI/Analog IR Vandal Ball Camera, a highly advanced surveillance solution that combines cutting-edge technology with robust design. Featuring Star-Light Plus™ technology for exceptional color clarity in near-total darkness, this camera delivers impressive 4K resolution over coax cables, supporting a variety of signal formats. Its durable, weather-resistant construction ensures reliable performance even in challenging conditions, making it an ideal choice for both indoor and outdoor surveillance needs.
Digital Watchdog DWC-VA883WTIR Camera Features
- Universal HD over Coax® technology: Compatible with HD-Analog, HD-TVI, HD-CVI, and legacy analog signals, providing versatility for existing systems.
- Star-Light™ technology: Delivers vibrant color images in near-total darkness, enhancing security during low-light conditions.
- 1/1.8" image sensor: Captures high-resolution images for clear surveillance footage.
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps: Offers flexible recording options to meet various surveillance requirements.
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens: Provides adjustable focal lengths for optimal coverage and detail in any environment.
- True wide dynamic range (WDR): Ensures balanced exposure in scenes with both bright and dark areas.
- OSD control via coaxial (UTC): Simplifies camera management by using existing coax cabling.
- 80' Smart IR™: Intelligent infrared illumination improves night vision performance without glare.
- Smart DNR™ 3D digital noise reduction: Reduces image noise for clearer footage in challenging lighting.
- True day/night mechanical IR cut filter: Automatically switches filters for optimal image quality during day and night.
- De-Fog™ extreme weather image compensation: Enhances image clarity in foggy or misty conditions.
- Auto sensing 24VAC/12VDC with line lock: Facilitates easy installation with versatile power options.
- Easy icon driven OSD menu: User-friendly interface simplifies setting adjustments.
- Programmable privacy zones: Allows customization to block specific areas from recording.
- Auto gain control (AGC): Optimizes image brightness in varying light conditions.
- Backlight compensation (BLC): Corrects exposure to ensure details are visible in backlit scenes.
- Auto white balance (AWB): Maintains color accuracy under different lighting conditions.
- IP67 dust-tight and water-proof: Provides reliability against the elements, supporting operation in harsh conditions.
- IK 10-rated impact-resistant: Designed to withstand vandalism, making it perfect for high-risk areas.
Digital Watchdog DWC-VA883WTIR Detailed Specifications
| Feature | Details |
|---|---|
| Resolution | 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps |
| Lens | 3.6 ~ 10mm vari-focal motorized zoom p-iris |
| Image Sensor | 1/1.8" sensor |
| Night Vision | Star-Light™ technology with 80' Smart IR™ |
| Dynamic Range | True WDR |
| Power | Auto sensing 24VAC/12VDC with line lock |
| Weather Resistance | IP67 rated |
| Impact Resistance | IK 10-rated |
| Connection | Coaxial for OSD control (UTC) |
SKU  | DWC-VA883WTIR |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 3840 X 2160 |
| Sensor Option | 1/1.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 3.6-10mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1/30-1/30,000, Auto |
| Gamma Correction | 0.45 |
| Image Device | 4K 1/1.8" CMOS |
| IR Distance | 24.384m/80ft |
| Minimum Scene Illumination | 0.09 lux (color), 0 lux (B/W) |
| Operating Humidity | 10–90% RH (non–condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Dimensions (W x H) | 4.92" x 4.8" (125 x 122 mm) |
| Power Consumption | DC12V (LED off): 5.517W, 460mA; DC12V (LED on): 8.98W, 748mA; AC24V (LED off): 5.06W, 358mA; AC24V (LED on): 8.03W, 552mA |
| Scanning System | Progressive scan |
| Video Output | 4K @ 15 fps, 4MP/1440p @ 30 fps, 2.1MP/1080p @ 30 fps |
| Weatherproof | IP67 |
| Synchronization | Internal |
| Digital Noise Reduction | 3D/2D DNR |
| Angle of View | FoV: 98.4 - 45.7° |
| Auto Gain Control | Max 60dB |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
