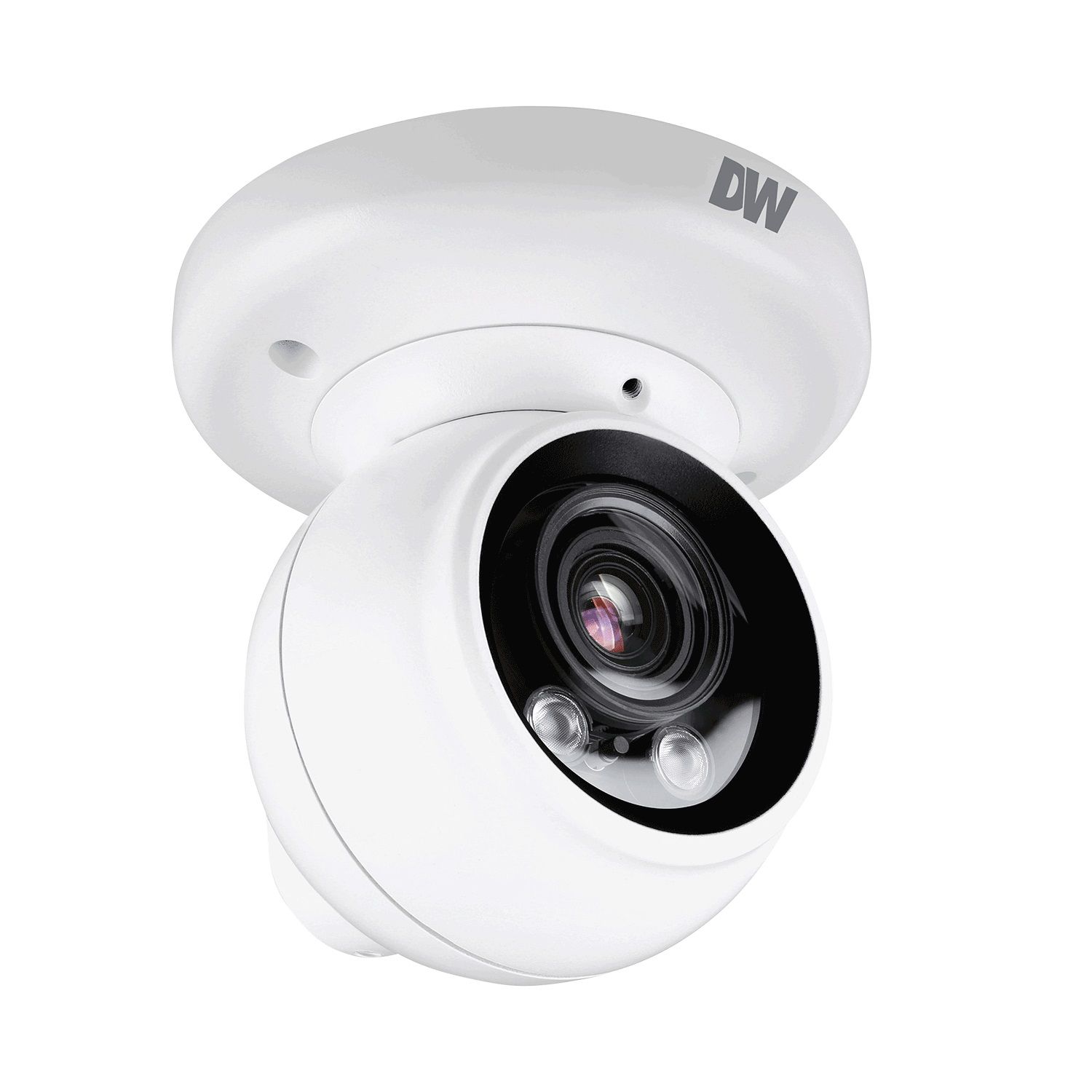

Digital Watchdog DWC-VA583WTIR 5 Megapixel Outdoor IR Vandal Ball Camera, 2.7 -13.5mm Lens
SKU
DWC-VA583WTIR
Model No
DWC-VA583WTIR
was $273.00 Special Price $208.25
Product Highlights
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm varifocal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
Speak to an expert
Introducing the Digital Watchdog DWC-VA583WTIR 5 Megapixel Outdoor IR Vandal Ball Camera, designed to provide unparalleled surveillance performance with advanced features. This camera offers exceptional clarity even in darkness with Star-Light Plus™ technology, making it perfect for all lighting conditions. With its robust IP66 weather resistance and vandal-proof design, it ensures reliable operation in challenging environments, all while supporting various HD over Coax® signals for flexible installation options.
Digital Watchdog DWC-VA583WTIR Key Features
- Universal HD over Coax® technology: Supports HD-Analog, HD-TVI, HD-CVI, and all legacy analog signals to maximize compatibility with your existing system.
- Star-Light Plus™ technology: Enables vibrant color images in low light conditions, enhancing visibility and security.
- 1/2.8" image sensor: Produces high-quality 5MP images at 20fps and 4MP at real-time 30fps for smooth video playback.
- Varifocal motorized zoom lens: The 2.7~13.5mm lens with auto-focus allows for flexible field of view adjustments, ensuring that every angle is covered.
- True wide dynamic range (WDR): Enhances image quality in high-contrast scenes, ensuring clarity in both highlights and shadows.
- Coaxial OSD control (UTC): Simplifies setup by allowing control functions to be administered through the coax cable.
- Smart IR™ technology: Provides up to 80 feet of infrared illumination for clear night vision, adapting seamlessly to changing light conditions.
- Smart DNR™ 3D digital noise reduction: Reduces noise levels in video recordings, ensuring cleaner footage during low light.
- True day/night IR cut filter: Automatically switches between color and monochrome modes for optimal viewing conditions 24/7.
- De-Fog™ technology: Compensates for image distortion in extreme weather, maintaining clear imagery.
- Versatile power options: Auto-sensing 24VAC/12VDC with line lock for easy integration into power supplies.
- User-friendly interface: Easy icon-driven OSD menu with an integrated joystick for convenient camera adjustments.
- Programmable privacy zones: Protects sensitive areas in the surveillance field, ensuring user privacy.
- Advanced imaging controls: Features like auto gain control (AGC), backlight compensation (BLC), and auto white balance (AWB) help maintain optimal image quality.
- Rugged design: IP67 environmental-rated dust-tight and water-resistant, coupled with IK 10-rated impact resistance for durability.
Digital Watchdog DWC-VA583WTIR Detailed Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Video Resolution | 5MP at 20fps, 4MP at 30fps |
| Lens Type | Varifocal motorized zoom, 2.7~13.5mm |
| IR Distance | Up to 80 feet |
| Weather Rating | IP67 |
| Impact Rating | IK 10 |
| Power Supply | 24VAC/12VDC (auto sensing) |
| Dimensions | 4.5 x 4.5 x 5.8 inches |
| Weight | 2.6 lbs |
| Operating Temperature | -22°F to 140°F |
SKU  | DWC-VA583WTIR |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
Camera Signal  | HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2592 X 1944 |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1/30-1/30,000 |
| Gamma Correction | 0.45 |
| Image Device | 5MP 1/2.8" CMOS |
| IR Distance | 24.38m/80ft |
| Minimum Scene Illumination | 0.08 lux (color), 0 lux (B&W) |
| Operating Humidity | 10–90% RH (non–condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Dimensions (W x H) | 4.92" x 4.8" (125 x 122 mm) |
| Power Consumption | DC12V (LED OFF): 4.36W (363mA) DC12V (LED ON): 7.6W (638mA), AC24V (LED OFF): 4.5W (278mA) AC24V (LED ON): 6.27W (456mA) |
| Scanning System | Progressive scan |
| Video Output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps, HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 720p @ 30fps, Analog CVBS: Up to 960H @ 30fps |
| Weatherproof | IP67 |
| Synchronization | Internal |
| Digital Noise Reduction | 3D/2D DNR |
| Angle of View | 85° - 32° |
| Auto Gain Control | Max 72dB |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
