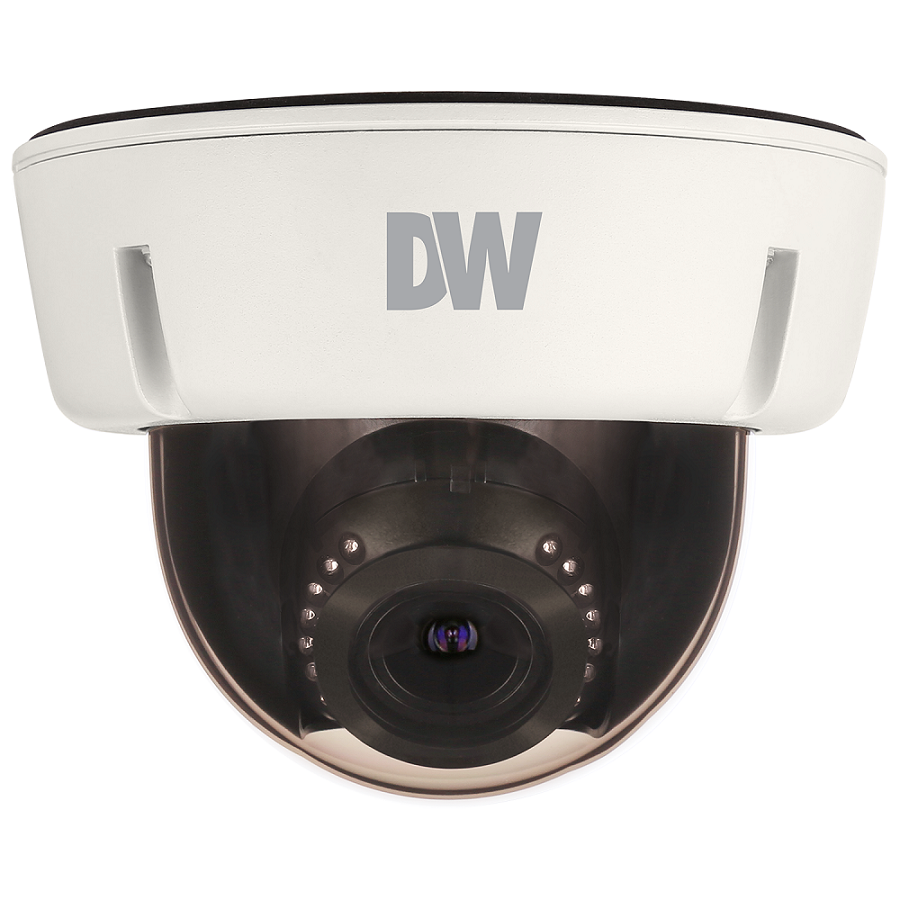

Digital Watchdog DWC-V6263WTIR 1080p Analog HD-AHD/TVI/CVI Outdoor Dome Camera, 2.8 -12mm Lens
SKU
DWC-V6263WTIR
Model No
DWC-V6263WTIR
$313.30
Product Highlights
- Universal HD over Coax® Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3” Image Sensor at Real-time 30fps
- 2.8~12mm Varifocal P-Iris Lens
- True Wide Dynamic Range (WDR)
STAR-LIGHT 2.1MP Universal HD over COAX® cameras deliver crystal clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The vandal dome cameras are IP66 rated and include Clean View™ dome treatment, that repels water, dust and grime. STAR-LIGHT™ Universal HD over COAX® cameras are engineered to work with our VMAX A1™ Universal HD over COAX® DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Features
- Universal HD over Coax® Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3” Image Sensor at Real-time 30fps
- 2.8~12mm Varifocal P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Clean View™ Hydrophobic Dome Coating Repels Water
- Dust and Grease
- 100’ Smart IR™ with Intelligent Camera Sync
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- IP66 Certified Weather and Tamper Resistant
- IK-10 Impact Rated
SKU  |
DWC-V6263WTIR |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Digital Watchdog |
| NDAA | Compliant |
Camera Signal  |
Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution |
1080p |
| Sensor Option |
1/3" CMOS |
| Lens Type |
Varifocal |
| Lens Size |
2.8-12mm |
| Infrared Distance |
61~100 Feet |
| Durability |
Indoor, Vandal Resistant, Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC, 24vAC, Dual Voltage |
| Electronic Shutter |
1/30 – 1/30,000 |
| Gamma Correction |
0.45 ~ 0.75 |
| Image Device |
2.1MP 1/3” CMOS Sensor |
| Minimum Scene Illumination |
F1.4 (30IRE): 0.03 Lux (Color), F1.4 (30IRE): 0 Lux (B/W) |
| Operating Humidity |
Less than 90% (Non-Condensing) |
| Operating Temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
| Dimensions (W x H) |
5.7 X 4.28 in (145 x 108.8 mm) |
| Power Consumption |
DC12V (LED OFF): 2.94W, DC12V (LED ON): 5.22W,AC24V (LED OFF): 2.5W,AC24V (LED ON): 4.35W |
| Privacy Zone |
16 Privacy Zones |
| S/N Ratio |
55dB |
| Scanning System |
Progressive Scan |
| Video Output |
HD-Analog, HD-TVI, HD-CVI 2.1MP 1080p CVBS Analog up to 960H |
| Weatherproof |
IP66 |
| Synchronization |
Internal |
| Digital Noise Reduction |
3D, Off, Low, Middle, High |
| Automatic White Balance |
Auto / Auto-Ex / Preset / Manual |
| Auto Gain Control |
Max 60dB |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Mirror |
Yes |
| On Screen Display Menu |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Motion Detection Tracking |
Yes |
