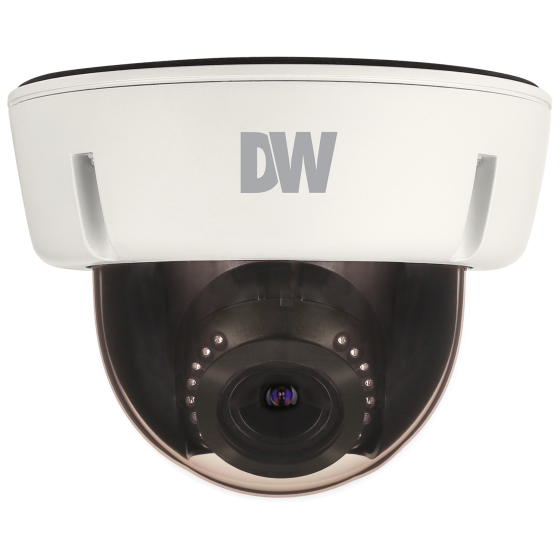

Digital Watchdog DWC-V6263TIR 1080p HD-CVI/SDI/AHD Indoor/Outdoor Dome Camera, 2.8 -12mm Lens
SKU
DWC-V6263TIR
Model No
DWC-V6263TIR
was
$245.00
Special Price
$209.50
Product Highlights
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Star-Light™ super low light technology
- 2.1MP/1080p 1/2.7” image sensor at real-time 30fps
- 2.8~12mm varifocal p-iris lens
- Digital wide dynamic range (D-WDR)
Star-Light™ 2.1MP Universal HD over Coax® cameras deliver crystal clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The vandal dome cameras are IP66 rated and include CleanView™ dome treatment, that repels water, dust and grime. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Star-Light™ super low light technology
- 2.1MP/1080p 1/2.7” image sensor at real-time 30fps
- 2.8~12mm varifocal p-iris lens
- Digital wide dynamic range (D-WDR)
- OSD control via Coaxial (UTC)
- CleanView™ hydrophobic dome coating repels water, dust and grease
- 100’ Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Highlight masking exposure (HME)
- Programmable Privacy Zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- IP66 certified weather and tamper resistant
- IK-10 impact rated
SKU  |
DWC-V6263TIR |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Digital Watchdog |
| NDAA | Compliant |
Camera Signal  |
HD-AHD, HD-CVI, HD-SDI |
| Resolution |
1080p |
| Lens Type |
Varifocal |
| Infrared Distance |
61~100 Feet |
| Durability |
Indoor, Vandal Resistant, Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC |
| Electronic Shutter |
1/30-1/30,000 |
| Image Device |
2.1MP/1080p 1/2.7” CMOS |
| IR Distance |
30.48m/100ft |
| Minimum Scene Illumination |
0. 2 lux (color), 0 lux (B&W) |
| Operating Humidity |
10–90% RH (non–condensing) |
| Operating Temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
| Dimensions (W x H) |
5.7” x 4.26” (145 x 108.3 mm) |
| Power Consumption |
DC12V (LED OFF): 1.86W, DC12V (LED ON): 3.6W |
| Privacy Zone |
4 programmable privacy zones |
| S/N Ratio |
55dB |
| Scanning System |
Progressive scan |
| Weatherproof |
IP66 |
| Synchronization |
Internal |
| Digital Noise Reduction |
3D, Off, low, middle, high |
| Angle of View |
95.5 - 30.8° |
| Backlight Compensation |
On, off |
| Automatic White Balance |
Auto / push / ATW / manual |
| Auto Gain Control |
0~15 |
| Back Light Compensation |
Yes |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Mirror |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Auto Gain Control |
Yes |
| Motion Detection Tracking |
Yes |
