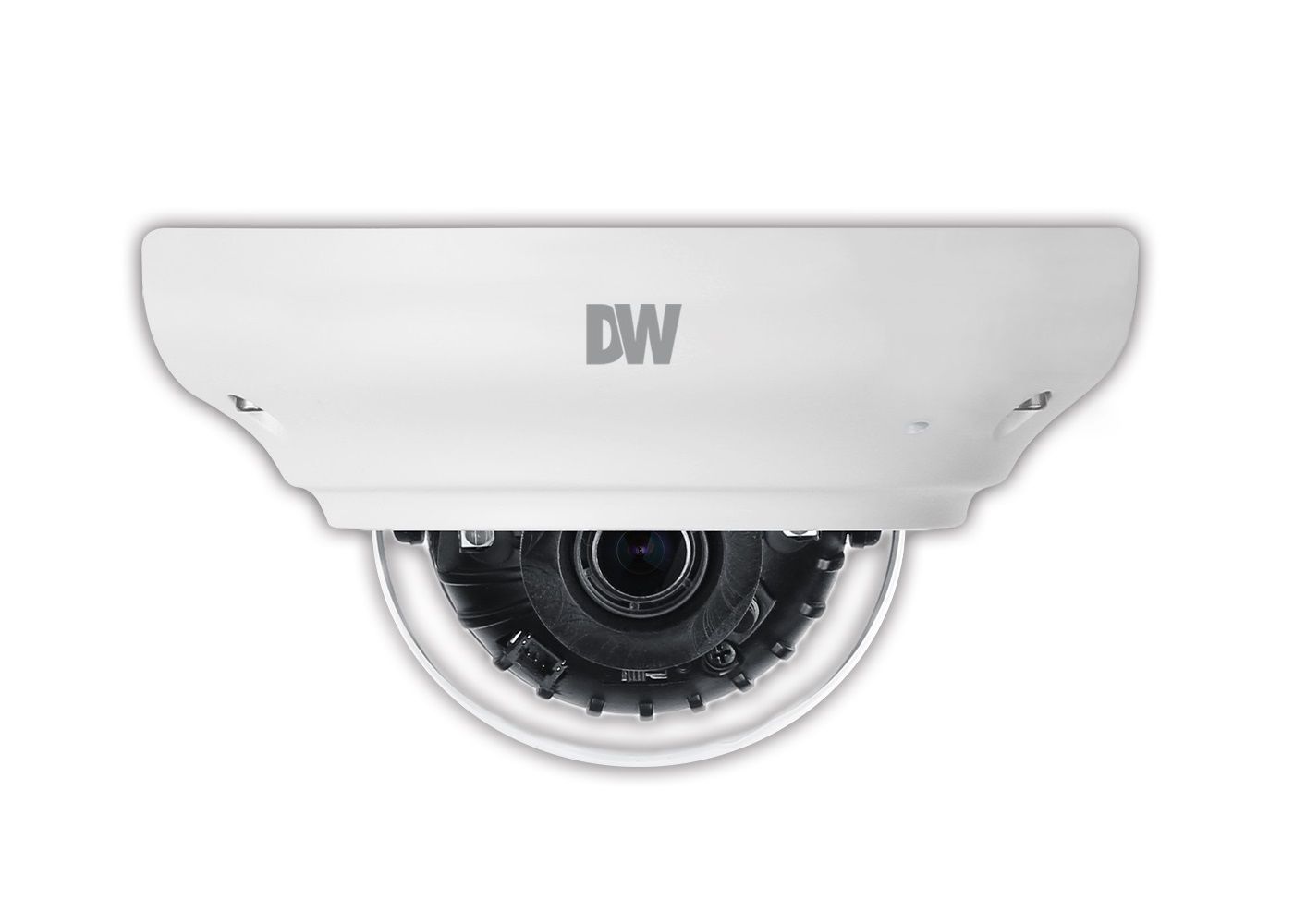

Digital Watchdog DWC-MV72Di4TW 2.1 Megapixel Outdoor IR Vandal Dome IP Camera, 4mm Lens

SKU
DWC-MV72Di4TW
Model No
DWC-MV72Di4TW
$288.80
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2.1MP/1080p 1/2.9" image sensor at real-time 30fps
  • 4.0mm fixed lens
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • Digital Wide Dynamic Range (D-WDR)
  • 80' Smart IR™with intelligent camera sync

The Digital Watchdog DWC-MV72Di4TW is a state-of-the-art 2.1 Megapixel Outdoor IR Vandal Dome IP Camera designed to deliver high-quality surveillance in a compact form. With a stunning 1080p resolution at real-time 30fps, it features a durable housing that withstands harsh environments while providing advanced functionalities like Smart IR™ and 3D digital noise reduction. This IP camera is perfect for various outdoor applications, ensuring reliable security and seamless integration with existing systems.

Digital Watchdog DWC-MV72Di4TW Camera Features

  • 2.1MP/1080p Resolution: Achieves crystal-clear images at real-time 30fps, enhancing surveillance effectiveness and detail.
  • 4.0mm Fixed Lens: Provides a balanced field of view, ideal for a range of applications while keeping the camera profile discreet.
  • Triple Codecs: Supports H.265, H.264, and MJPEG for simultaneous streaming, optimizing data storage and bandwidth.
  • Digital Wide Dynamic Range (D-WDR): Improves visibility in both bright and dark areas for better image clarity.
  • 80' Smart IR™: Facilitates clear night vision with intelligent sync to the camera for enhanced low-light performance.
  • Ultra Low-Profile Design: The vandal dome camera housing remains unobtrusive while ensuring robust protection.
  • Smart DNR™ 3D Digital Noise Reduction: Minimizes noise levels in low-light conditions, resulting in clearer images.
  • True Day/Night Functionality: Features a mechanical IR cut filter, providing optimized performance at any hour.
  • Programmable Privacy Zones: Allows you to block out specific areas in the camera's view to protect privacy.
  • Auto Gain Control (AGC): Automatically adjusts camera sensitivity in varying light conditions for consistent performance.
  • Backlight Compensation (BLC): Helps to improve image quality when subjects are partially obscured by bright lighting.
  • Auto White Balance (AWB): Ensures accurate color representation across varying lighting conditions.
  • Motion Detection: Triggers alerts and recording when motion is detected, enhancing security vigilance.
  • Built-in Web Server: Enables easy access and configuration from any web-enabled device.
  • Power over Ethernet (PoE) Class 2 and DC12V: Flexibility in power options simplifies installation and reduces cabling requirements.
  • ONVIF Conformant: Ensures compatibility with any open platform solution, enhancing integration capabilities.
  • NDAA/TAA Compliant: Meets governmental compliance standards for purchasing and usage.
  • IP67 Rating: Offers dust-tight and waterproof protection up to 3 feet, ensuring reliable outdoor use.
  • IK-10 Impact Resistance: The camera is rated to withstand impacts, providing durability in high-risk environments.

Digital Watchdog DWC-MV72Di4TW Detailed Specifications

Image Sensor1/2.9" 2.1MP CMOS
Maximum Resolution1920 x 1080
Frame Rate30fps at 1080p
Lens TypeFixed 4.0mm
Night Vision RangeUp to 80 feet
Video CompressionH.265, H.264, MJPEG
Dimensions4.8" Diameter x 3.6" Height
Weight1.5 lbs
Operating Temperature-22°F to 140°F
Power SupplyDC12V or PoE Class 2
ComplianceONVIF Profile S, NDAA/TAA
Environmental RatingIP67, IK-10
SKU  DWC-MV72Di4TW
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Digital Watchdog
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    4mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  4.13" x 2.4" (105 x 61mm)
Electronic Shutter    Auto, manual, anti-flicker, slow shutter (1/30 ~ 1/32,000)
Image Device    2.1MP/1080p 1/2.9” CMOS
Image Pixels Total2001 (H) × 1121 (V)
Minimum Scene Illumination  0.16 lux (color), 0.0 lux (B/W)
Operating Humidity    10-90% (non-condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Power Consumption  DC12V: max 3.7W, PoE: max 5.4W
Privacy Zone    16 programmable privacy masks
Protocols  TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Angle of View    FoV: 84°
IR Distance  24m/80ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
