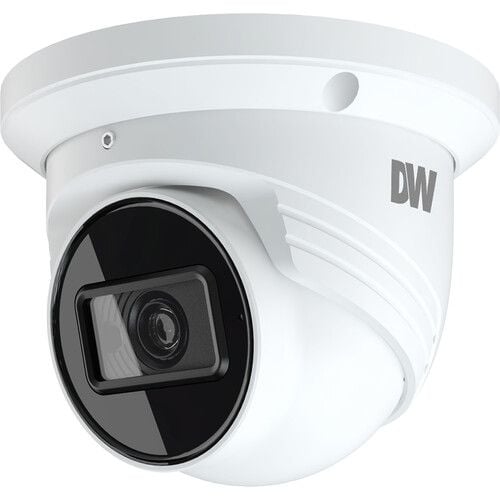

Digital Watchdog DWC-MT95Wi36TW 5MP Outdoor Network IR Turret Camera with 3.6mm Lens

SKU
DWC-MT95Wi36TW
Model No
DWC-MT95Wi36TW
was $243.50 Special Price $238.63
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5MP 1/2.7″ image sensor at real-time 30fps
  • 3.6mm fixed lens
  • True Wide Dynamic Range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • 100ft range Smart IR

This MEGApix IP camera is NDAA compliant and delivers crystal-clear images at 5MP resolution and real-time 30fps. The IP67-rated turret camera features a 3.6mm fixed lens and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection, and object classification. All MEGApix cameras are ONVIF conformant, assuring successful integration with any open platform solution on the market.

Digital Watchdog DWC-MT95Wi36TW Camera Features

  • 5MP Resolution: Enable detailed image capture for enhanced surveillance accuracy.
  • 3.6mm Fixed Lens: Offers a wide field of view for comprehensive monitoring.
  • True Wide Dynamic Range (WDR): Balances light in varying conditions, improving image quality in high-contrast environments.
  • Multiple Codecs: Supports H.265, H.264, and MJPEG for efficient video streaming and storage.
  • Smart IR: Provides effective night vision up to 100ft, ensuring visibility in darkness.
  • Object Classification Analytics: Automatically identifies and classifies objects for enhanced security management.
  • Line Crossing Analytics: Alerts users when a designated line is crossed, bolstering perimeter security.
  • Perimeter Intrusion Analytics: Detects unauthorized access attempts along defined perimeters.
  • Video Tampering Detection: Notifies users of scene changes or obstructions that could affect security.
  • Smart DNR: Reduces digital noise for clearer images in low-light scenarios.
  • True Day/Night Functionality: Utilizes a mechanical IR cut filter for accurate surveillance around the clock.
  • Programmable Privacy Zones: Customize areas of the image that should not be monitored, ensuring privacy compliance.
  • Auto Gain Control: Enhances image brightness in lower light, ensuring clear visuals.
  • Backlight Compensation: Improves visibility of subjects against bright backgrounds.
  • De-Fog Capability: Compensates for foggy conditions, ensuring clear image quality.
  • Auto White Balance: Adjusts color temperature for true color rendering in varying environments.
  • Motion Detection: Alerts users to movement in monitored areas, ensuring timely response.
  • Audio Input: Built-in microphone for audio monitoring capabilities.
  • Micro SD/SDHC/SDXC Card Slot: Supports local storage for recordings (card not included).
  • Built-in Web Server: Facilitates remote access and management of the camera.
  • PoE Class 3 and DC12V: Offers flexible power options for easy installation.
  • ONVIF Conformance: Ensures compatibility with a wide range of open-platform solutions.
  • NDAA Compliance: Meets U.S. government standards for surveillance products.
  • IP67 Rating: Dust-tight and waterproof up to 3 feet, making it ideal for outdoor use.
  • IK 10 Rating: Impact-resistant design to withstand challenging environments.

Digital Watchdog DWC-MT95Wi36TW Detailed Specifications

ModelDWC-MT95Wi36TW
Image Sensor5MP 1/2.7”
Resolution5MP
Frame Rate30fps
Lens Type3.6mm Fixed
IR Range100ft
Weather ResistanceIP67
Impact RatingIK10
Power SupplyPoE Class 3 / DC12V
Video CompressionH.265, H.264, MJPEG
StorageMicro SD/SDHC/SDXC (not included)
AnalyticsObject classification, motion detection, tampering detection
ComplianceNDAA, ONVIF Profile S
SKU  DWC-MT95Wi36TW
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Fixed
Lens Size    3.6mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  4.66” x 3.58” (118.6 x 91 mm)
Electronic Shutter    1/30s ~ 1/100000s
Image Device    5MP 1/2.7” CMOS
Image Pixels Total2592 (H) x 1944 (V)
Minimum Scene Illumination  0.02 lux (color), 0.0 lux (B/W)
Operating Humidity    95% RH (non–condensing)
Operating Temperature    -22°F ~ 140°F (-30°C ~ 60°C)
Power Consumption  7W
Privacy Zone    4 programmable privacy masks
Protocols  UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
S/N Ratio  50dB
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Angle of View    81.4°
IR Distance  30.48m/100ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
