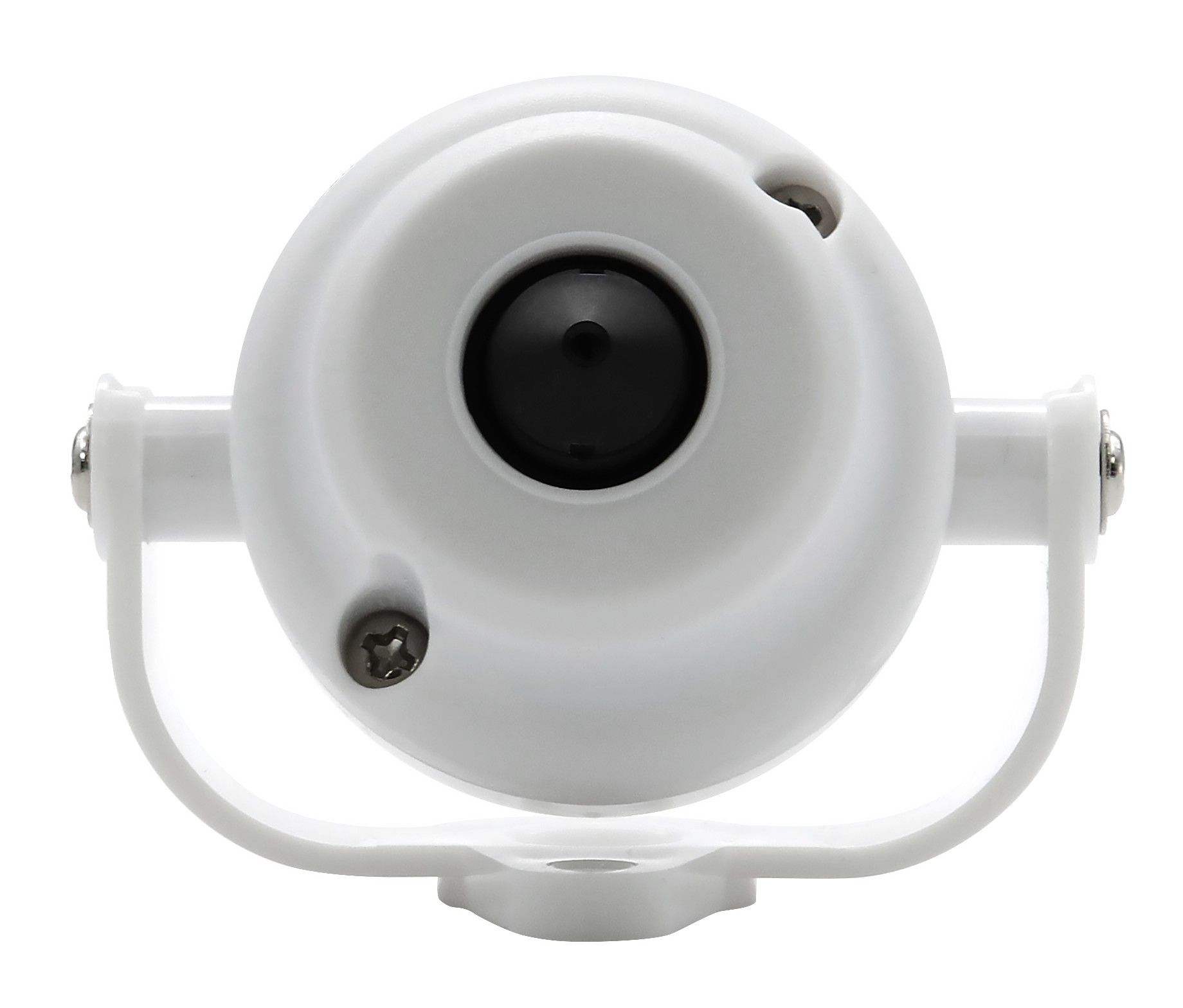

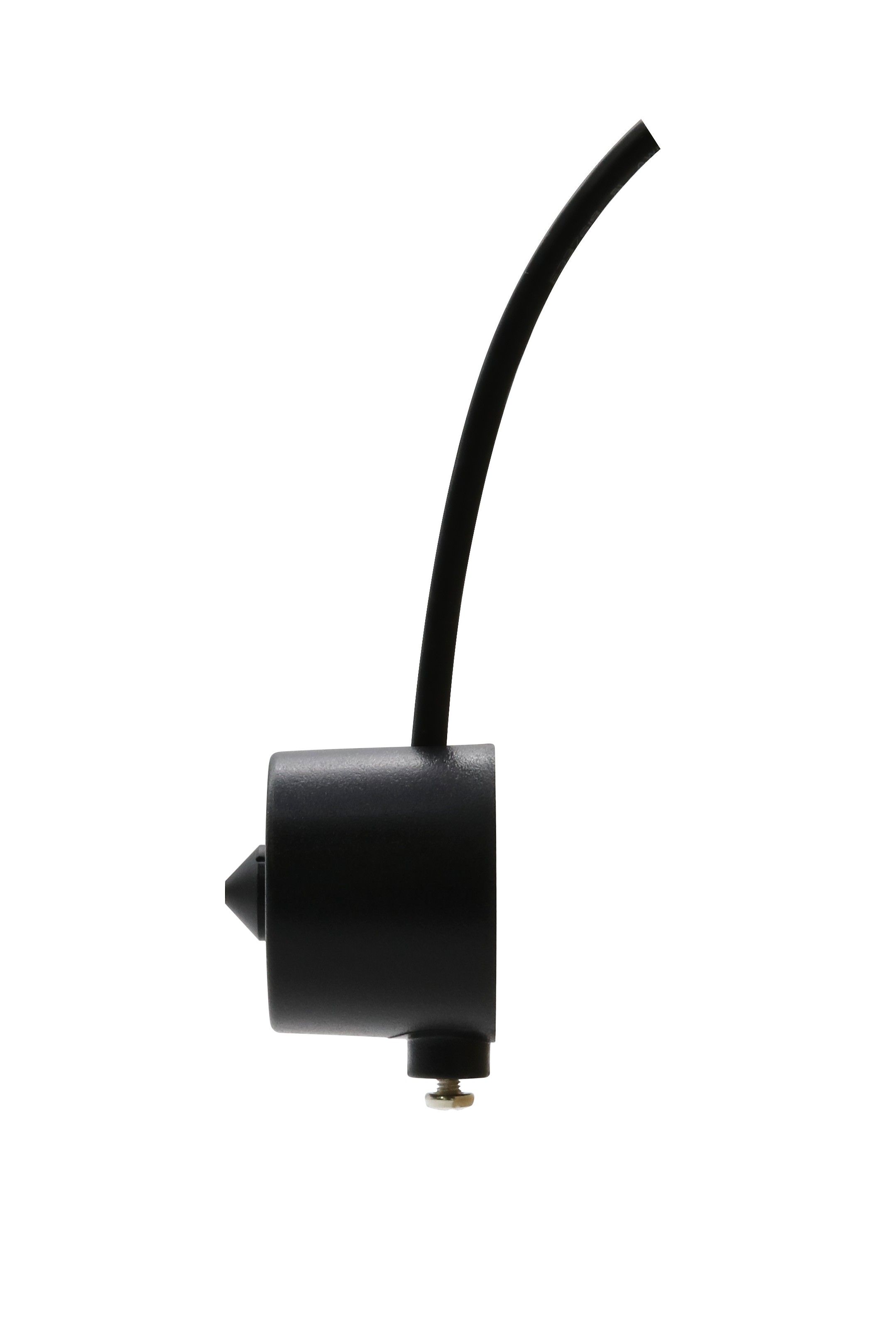

Digital Watchdog DWC-MPH2W28TW 2.1 Megapixel Mini Board Camera with 2.8mm Lens
SKU
DWC-MPH2W28TW
Model No
DWC-MPH2W28TW
was $582.99 Special Price $490.00
Product Highlights
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms

Speak to an expert
The Digital Watchdog DWC-MPH2W28TW 2.1 Megapixel Mini Board Camera is a state-of-the-art surveillance solution designed for optimal performance and versatility. With a compact pinhole design and advanced features such as a 2.8mm fixed lens and True Wide Dynamic Range, this camera ensures high-quality video capture under various lighting conditions. You can rely on its Intelligent Video Analytics and multiple codec support to enhance your security setup with ease and efficiency.
Digital Watchdog DWC-MPH2W28TW Camera Features
- 2.1MP Resolution: Delivers 1080p quality at real-time 30fps for clear and detailed images.
- Intelligent Video Analytics: Provides advanced analytics to optimize monitoring and reduce false alarms.
- Seamless Integration: Easily integrates with DW Spectrum® IPVMS for effective surveillance management.
- True Wide Dynamic Range: Ensures balanced lighting in both bright and dark environments for enhanced image quality.
- Triple Codecs: Supports H.265, H.264, and MJPEG for versatile streaming options.
- Smart DNR: Employs 3D digital noise reduction to enhance video clarity in low-light conditions.
- Programmable Privacy Zones: Allows customization to protect sensitive areas from view.
- Web Server Built-in: Offers remote access and configuration directly through a web interface.
- PoE and DC12V Support: Provides flexible power options for easier installation.
- ONVIF Compliant: Ensures compatibility with a variety of security systems and devices.
- NDAA Compliance: Meets regulatory standards for secure installation in sensitive areas.
- UL Listed: Certified for safety and reliability.
Detailed Specifications for DWC-MPH2W28TW
| Image Sensor | 1/2.8" 2.1 Megapixel |
| Lens | 2.8mm Fixed Lens |
| Resolution | 1080p at 30fps |
| Dynamic Range | True WDR |
| Codec Support | H.265, H.264, MJPEG |
| Recording Features | Smart DNR, Motion Detection, Privacy Zones |
| Storage | Micro SD/SDHC/SDXC Class 10 (card not included) |
| Power Options | PoE Class 3 and DC12V |
| Compliance | ONVIF Profile S, NDAA compliant |
| Additional Features | Alarm In/Relay Out, Web Server Built-in |
| Certification | UL Listed |
