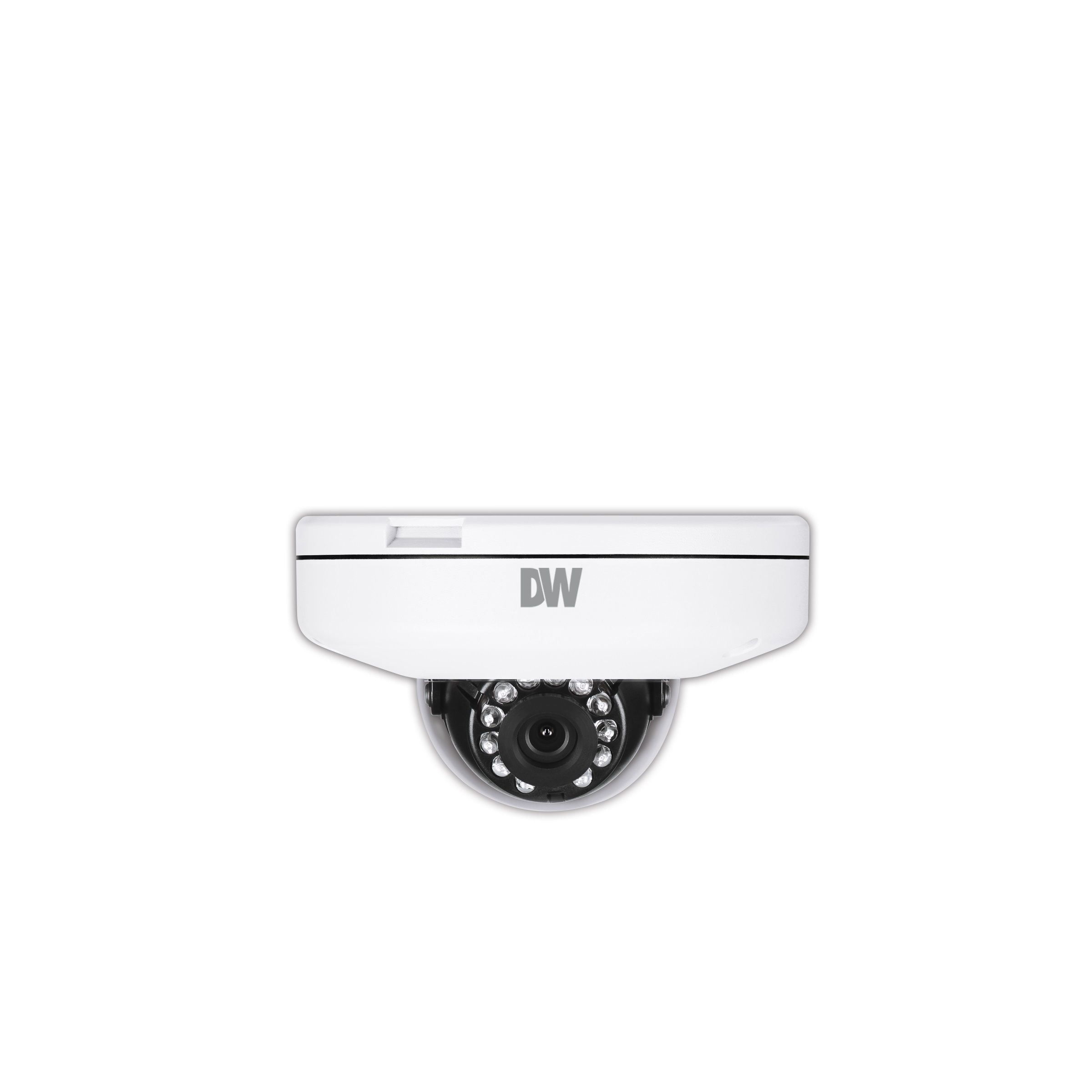

Digital Watchdog DWC-MPF2Wi28TW 2.1 Megapixel/1080p Ultra-Low Profile Vandal Dome IP Camera with IVA+, 2.8mm Lens
SKU
DWC-MPF2Wi28TW
Model No
DWC-MPF2Wi28TW
was
$393.53
Special Price
$373.50
Product Highlights
- 2.1MP/1080p 1/2.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens
This MEGApix® IVA+™ IP camera is your gateway to powerful video analytics features. It is NDAA/TAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera includes 2.8mm and 4.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features
- 2.1MP/1080p 1/2.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50’ Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
SKU  |
DWC-MPF2Wi28TW |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Digital Watchdog |
| NDAA | Compliant |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
0~60 Feet |
| Resolution |
2 Megapixel |
| Lens Type |
Fixed |
| Lens Size |
2.8mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Vandal Resistant, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto |
| Dimensions (W x H) |
4.9” x 2.9” (125 x 74.3 mm) |
| Electronic Shutter |
1/15 ~ 1/32000 |
| Image Device |
2.1MP/1080p 1/2.8“ CMOS |
| Image Pixels Total | 1945 (H) X 1109 (V) |
| Minimum Scene Illumination |
0.25 lux (color), 0.0 lux (B/W) |
| Operating Humidity |
10-90% (non-condensing) |
| Operating Temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
| Power Consumption |
DC12V: max 4W, PoE: max 5.5W |
| Privacy Zone |
16 programmable privacy masks |
| Protocols |
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
| Video Output |
Local video output CVBS 1.0V p-p (75Ω), 16:9 aspect ratio |
| Weatherproof |
IP66 |
| Digital Noise Reduction |
3D-DNR |
| Angle of View |
HFOV / VFOV: 115° / 65° |
| IR Distance |
15.24m/50ft |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
