Digital Watchdog DWC-MF4Wi6WC5 4 Megapixel Network IR Outdoor Dome Camera with 6mm Lens
SKU
DWC-MF4Wi6WC5
Model No
DWC-MF4Wi6WC5
was $733.00 Special Price $559.09
Product Highlights
- All-in-one cameras, no server required
- 4MP 1/3″ image sensor at real-time 30fps
- 4.0mm fixed lens
- Built-in 512GB and 1TB storage options for up to 60 days of retained video*
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation
Speak to an expert
The Digital Watchdog DWC-MF4Wi6WC5 is an advanced 4 Megapixel Network IR Outdoor Dome Camera designed for high-quality surveillance in both indoor and outdoor environments. With its 6mm lens, 50ft infrared capabilities, and true day/night functionality, this camera ensures exceptional image clarity and reliability, making it perfect for various security applications. Its easy deployment with pre-loaded software and impressive retention capabilities offer users peace of mind and robust monitoring solutions.
Digital Watchdog DWC-MF4Wi6WC5 Camera Features
- All-in-one cameras: No server required, allowing for simplified installation and reduced cost.
- 4MP 1/3” image sensor: Provides real-time 30fps video, ensuring high-quality footage for effective monitoring.
- 6mm fixed lens: Delivers optimal field of view for capturing detailed images.
- Built-in storage options: 512GB and 1TB capacities offer up to 60 days of retained video for comprehensive recording needs.
- Pre-loaded DW Spectrum IPVMS: Facilitates easy out-of-the-box operation, saving you installation time.
- 24/7 access: Provides live and recorded video feed availability, ensuring constant surveillance.
- Automatic installation: Simplifies setup with plug-and-play functionality on initial power-up.
- 30 camera connectivity: Capability to connect up to 30 MEGApix CaaS edge cameras, enhancing security coverage.
- True WDR: Wide Dynamic Range ensures quality images in varied lighting conditions.
- Dual recording option: Works with Blackjack NAS appliance for flexible storage solutions.
- Dual codecs: Supports H.264 and MJPEG with simultaneous dual-stream, maximizing compatibility.
- 50’ Smart IR™: Provides intelligent infrared coverage, enhancing night vision capabilities.
- Ultra low-profile design: Aesthetic outdoor vandal dome that blends into the environment.
- Smart DNR™: 3D digital noise reduction enhances image clarity in low-light situations.
- True day/night function: Equipped with a mechanical IR cut filter for quality nighttime imagery.
- Programmable privacy zones: Customize areas for monitoring based on your preferences.
- Auto gain control (AGC): Adjusts gain automatically for optimal image brightness.
- Auto white balance (AWB): Ensures accurate color representation under varying lighting conditions.
- Motion detection: Alerts you to any movement within the camera's field of view.
- Built-in web server: Enables remote access and configuration via a web browser.
- PoE class 3 and DC12V support: Offers flexible power options for installations.
- Waterproof cabling: Ensures durability and reliability in outdoor settings.
- UL listed: Meeting safety standards for electronic equipment.
- ONVIF conformant: Profile S support guarantees interoperability with other devices.
- NDAA compliant: Meets regulatory requirements for government and industry standards.
- IP66 rating: Dust-tight and water-resistant, suitable for harsh weather environments.
- IK 10-rated protection: Impact-resistant housing offers enhanced durability against vandalism.
Detailed Camera Specifications for DWC-MF4Wi6WC5
| Camera Type | Dome, Outdoor |
| Resolution | 4 Megapixel (2560x1440 @ 30fps) |
| Sensor | 1/3” CMOS Sensor |
| Lens | 6mm Fixed Lens |
| IR Range | 50ft Smart IR™ |
| Storage | Built-in 1TB memory |
| PoE | Yes, Class 3 |
| Environmental Rating | IP66 (Dust-tight and Water-resistant) |
| Impact Rating | IK 10 |
| Warranty | 5 Years |
SKU  | DWC-MF4Wi6WC5 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 4.9" x 2.9" (125 x 74.3 mm) |
| Electronic Shutter | 1/30~1/32000 |
| Image Device | 4MP 1/3” CMOS |
| Image Pixels Total | 2688(H) x 1520(V) |
| Minimum Scene Illumination | 0.41 lux (color), 0.0 lux (B/W) |
| Operating Humidity | 10–90% RH (non–condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Power Consumption | DC12V: Max 5.6W, PoE: Max 7.4W |
| Privacy Zone | 16 programmable privacy masks |
| Protocols | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Angle of View | 81° |
| IR Distance | 15m/50ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
DWC-MF4Wi6WC5-Specsheet DWC-MF4Wi6WC5-Quick-Start-GuideTools & Calculators
Lens Field of View Calculator

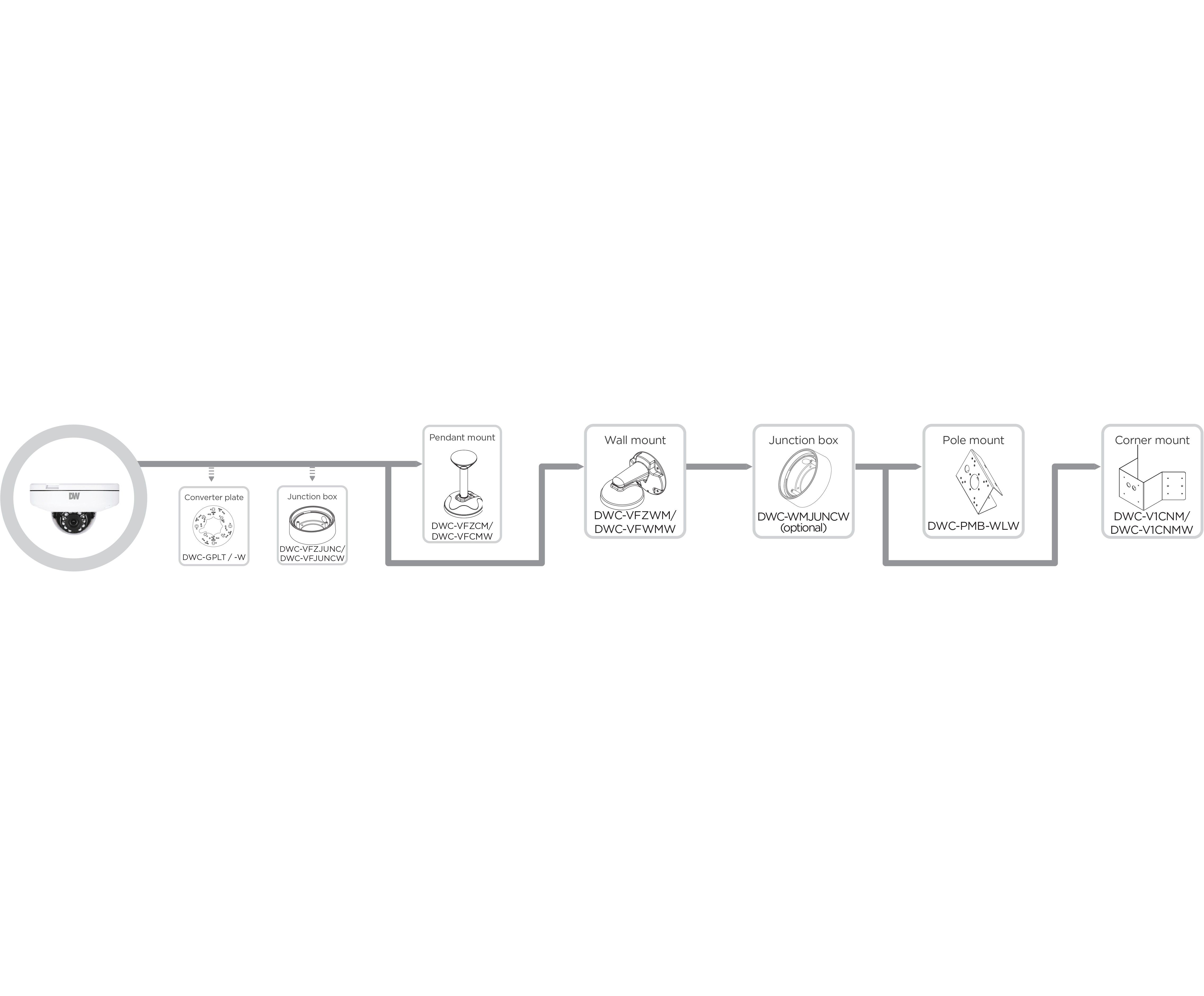

Tools & CalculatorsProduct Accessories
