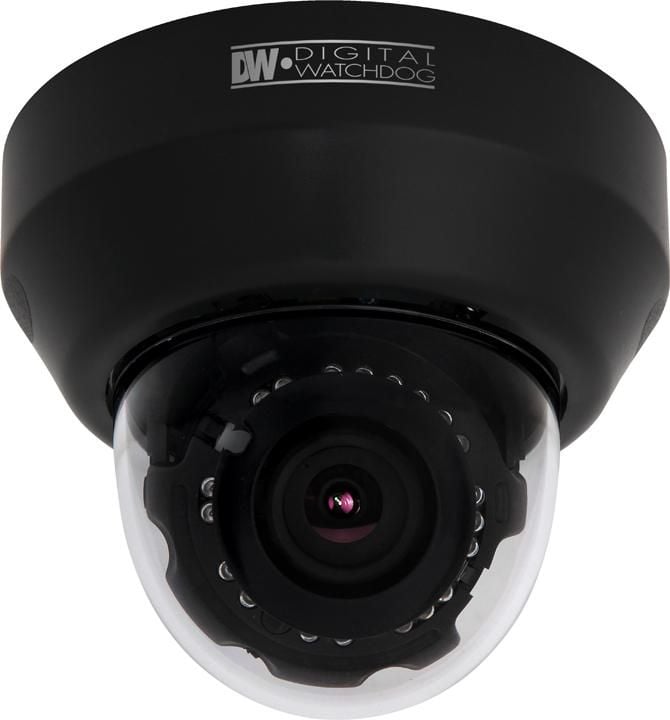

Digital Watchdog DWC-MD421TIRB 2.1MP IR IP Dome Camera
SKU
DWC-MD421TIRB
Model No
DWC-MD421TIRB
$309.75
Product Highlights
- 2.1 Megapixels (1080P, 30fps)
- Triple Codecs (H.264, MJPEG, MPEG4) with Dual-Stream
- 1/2.8" CMOS Sensor (7% Larger Than 1/3" CMOS Sensor)
- 3.5-16mm Auto Focus Lens
- 8X Digital Zoom, 4.5X Optical Zoom
Speak to an expert
The Digital Watchdog DWC-MD421TIRB 2.1MP IR IP Dome Camera delivers unparalleled video quality with its 1080P megapixel resolution at 30 frames per second. Equipped with advanced features like True Day and Night, 3D-DNR, and Double Shutter WDR, this camera is designed to perform optimally in various environmental conditions. Its Power over Ethernet capability facilitates a simple and efficient installation process, allowing remote access and control anytime, anywhere.
Digital Watchdog DWC-MD421TIRB Camera Features
- Resolution: 2.1 Megapixels (1080P, 30fps) - Offers high-definition clarity for detailed surveillance.
- Video Compression: Triple Codecs (H.264, MJPEG, MPEG4) with Dual-Stream - Flexible streaming options for bandwidth management.
- Sensor Size: 1/2.8" CMOS Sensor (7% Larger Than 1/3" CMOS Sensor) - Captures more light for better image quality.
- Lens: 3.5-16mm Auto Focus Lens - Versatile focal range for various surveillance scenarios.
- Zoom Capability: 8X Digital Zoom, 4.5X Optical Zoom - Allows for close-up views of distant subjects.
- Day/Night Functionality: TDN (True Day and Night/TDN5) - Ensures clear images day and night.
- IR Range: 70ft Range IR with Intelligent Camera Sync - Provides clear night vision for extended areas.
- Power Options: Power over Ethernet [PoE] & DC12V - Simplifies installation and reduces wiring requirements.
- Audio Feature: Two-Way Audio - Enables communication via the camera.
- Backup Option: Local SDHC Card Remote Backup - Safeguards recorded footage easily.
- Web Access: Web Server Built-in - Convenient remote access to camera feeds.
- Image Enhancement: Double Shutter WDR (Wide Dynamic Range) - Handles contrasting lighting conditions effectively.
- Noise Reduction: 3D-DNR (3D Digital Noise Reduction) - Minimizes noise for clearer images.
- Privacy Features: Programmable Privacy Zones (30) & Motion Detection - Customize surveillance zones and alerts.
- Design: Black Housing - Sleek and professional appearance.
Digital Watchdog DWC-MD421TIRB Detailed Specifications
| Feature | Detail |
| Resolution | 2.1 Megapixels (1080P) |
| Frame Rate | 30fps |
| Codec | H.264, MJPEG, MPEG4 |
| Sensor Type | 1/2.8" CMOS |
| Lens | 3.5-16mm Auto Focus |
| Zoom | 8X Digital, 4.5X Optical |
| IR Range | 70ft |
| Power Options | PoE & DC12V |
| Audio | Two-Way |
| Backup | SDHC Card |
| Web Access | Built-in Web Server |
| WDR | Double Shutter WDR |
| No. of Privacy Zones | 30 Programmable |
| Housing Color | Black |
SKU  | DWC-MD421TIRB |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 61~100 Feet |
| Resolution | 2.1 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | 0~20 |
| Dimensions (W x H) | 4.25 X 3.8 in |
| Electronic Shutter | Auto, Manual |
| Image Device | 1/2.8” CMOS Sensor (7% Larger Than 1/3” CMOS Sensor) |
| Image Pixels Total | 2016 (H) X 1108 (V) |
| Image Size | 1/2.8” CMOS |
| Minimum Scene Illumination | F1.6 (30IRE): 0.5 Lux [Color], F1.6 (30IRE): 0.0 Lux [B&W] |
| Operating Humidity | Less than 90% (Non-Condensing) |
| Operating Temperature | -10oC ~ 55oC (14oF ~ 131oF) |
| Power Consumption | 7.2W, 600mA / LED ON 8.64W, 720mA |
| Power Requirements | PoE, 12V DC |
| Privacy Zone | 30 |
| Protocols | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast |
| Digital Noise Reduction | 3D-DNR: Off, Low, Middle, High |
| Mirror | Off, On |
| Rotation Angle | 360 |
| Back Light Compensation | Off, On |
| IR Distance | 70ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
