Digital Watchdog DWC-MB45iALPRTW 5 Megapixel Network IR Outdoor License Plate Camera with 6-50mm Lens
SKU
DWC-MB45iALPRTW
Model No
DWC-MB45iALPRTW
$709.29
Product Highlights
- 5MP 1/2.8” image sensor at real-time 30fps
- License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
- Reliable performance under any lighting conditions
- 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
MEGApix Weatherproof LPR Bullet, 5 Megapixel 1/2.8 Image Sensor @ 30fps, 6-50MM Varifocal Motorized Zoom with Autofocus P-Iris Lens, 80ft Smart IR, Triple Codec (H.265, H.264, MJEPG), Smart DNR, AGC, AWB, Programmable Privacy Zones, Two Way Audio, Alarm Input, Relay Output, Web Server Built in, Cold Start -40F(-40C), Micro SD/SDHC/SDXC Class 10 Card Slot (card not included), OnVIF Profile S, IP66. IK9, PoE and 12VDC, 5 Year Warranty, Captures licenses plates up to 50mph with up to 60ft capture range.
Features
- 5MP 1/2.8” image sensor at real-time 30fps
- License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
- Reliable performance under any lighting conditions
- 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Cold start -40°F (-40°C)
- 80’ Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
SKU  |
DWC-MB45iALPRTW |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Digital Watchdog |
| NDAA | Compliant |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
61~100 Feet |
| Resolution |
5 Megapixel |
| Lens Type |
Varifocal |
| Lens Size |
6-50mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Vandal Resistant, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto |
| Dimensions (W x H) |
9.73” x 3.8” (247.2 x 96.7mm) |
| Electronic Shutter |
1/15 ~ 1/32000 |
| Image Device |
5MP 1/2.8“ CMOS |
| Image Pixels Total | 2592 (H) X 1944 (V) |
| Minimum Scene Illumination |
0.0 lux (B/W) |
| Operating Humidity |
10–90% RH (non–condensing) |
| Operating Temperature |
-40°F ~ 122°F (-40°C ~ 50°C) |
| Power Consumption |
DC12V: max 9W, PoE: max 10.5W |
| Privacy Zone |
16 programmable privacy masks |
| Protocols |
TCP/IP, UDP, Auto IP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
| Weatherproof |
IP66 |
| Digital Noise Reduction |
3D |
| Angle of View |
6.9° ~ 40.8° |
| IR Distance |
24m/80ft |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Flickerless |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
There are no related videos.
Downloads & Manuals

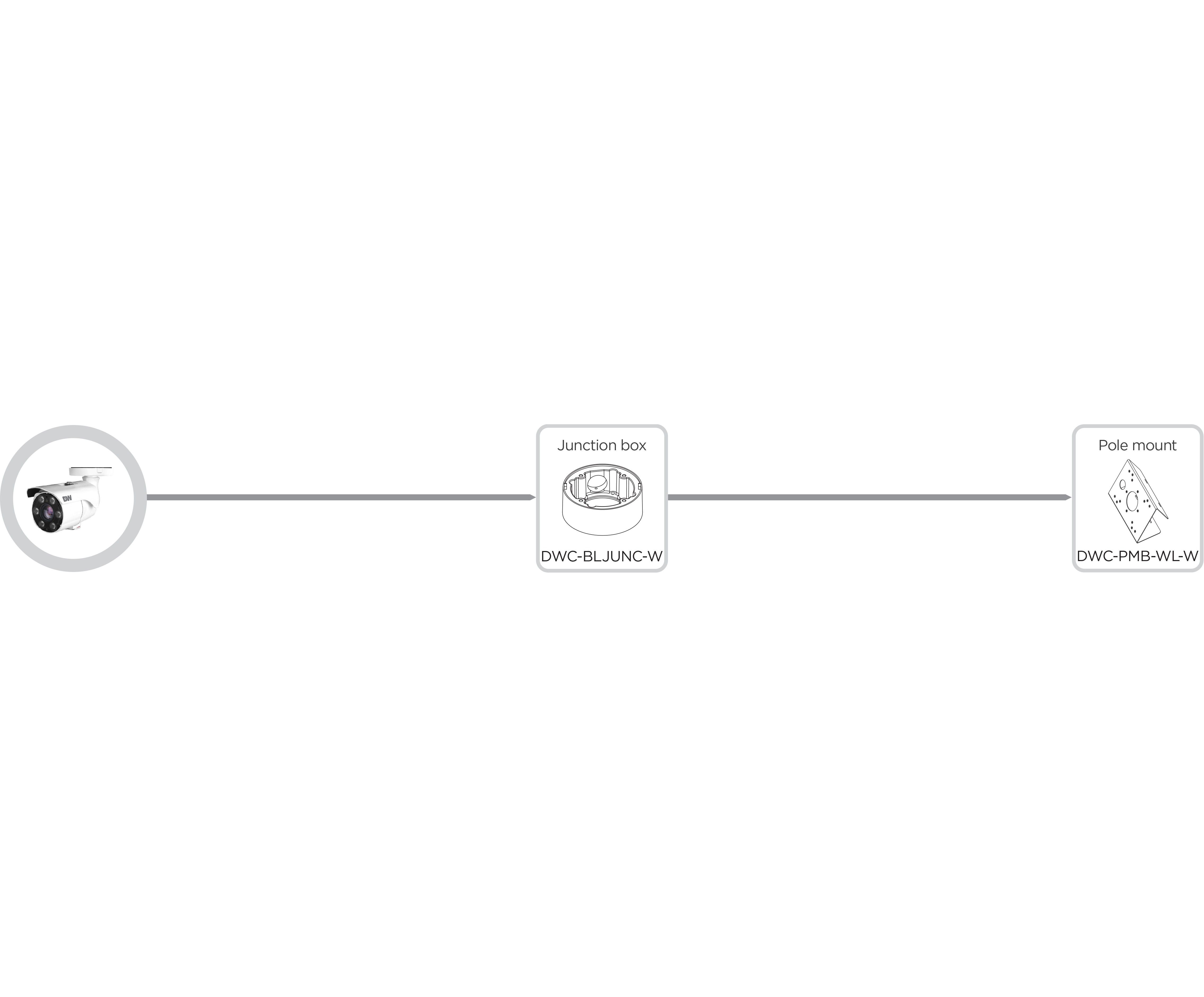

Product Accessories
