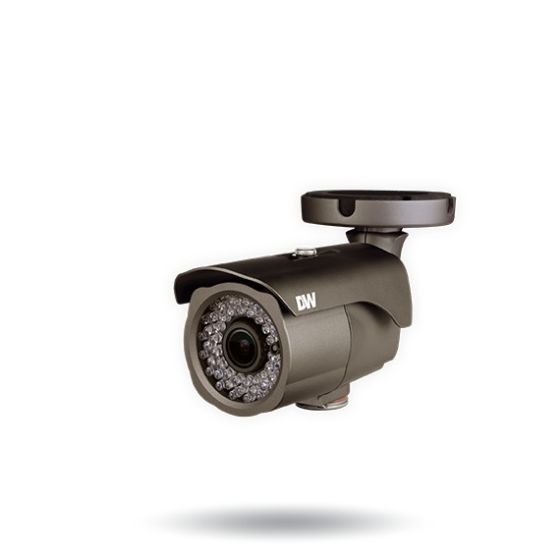

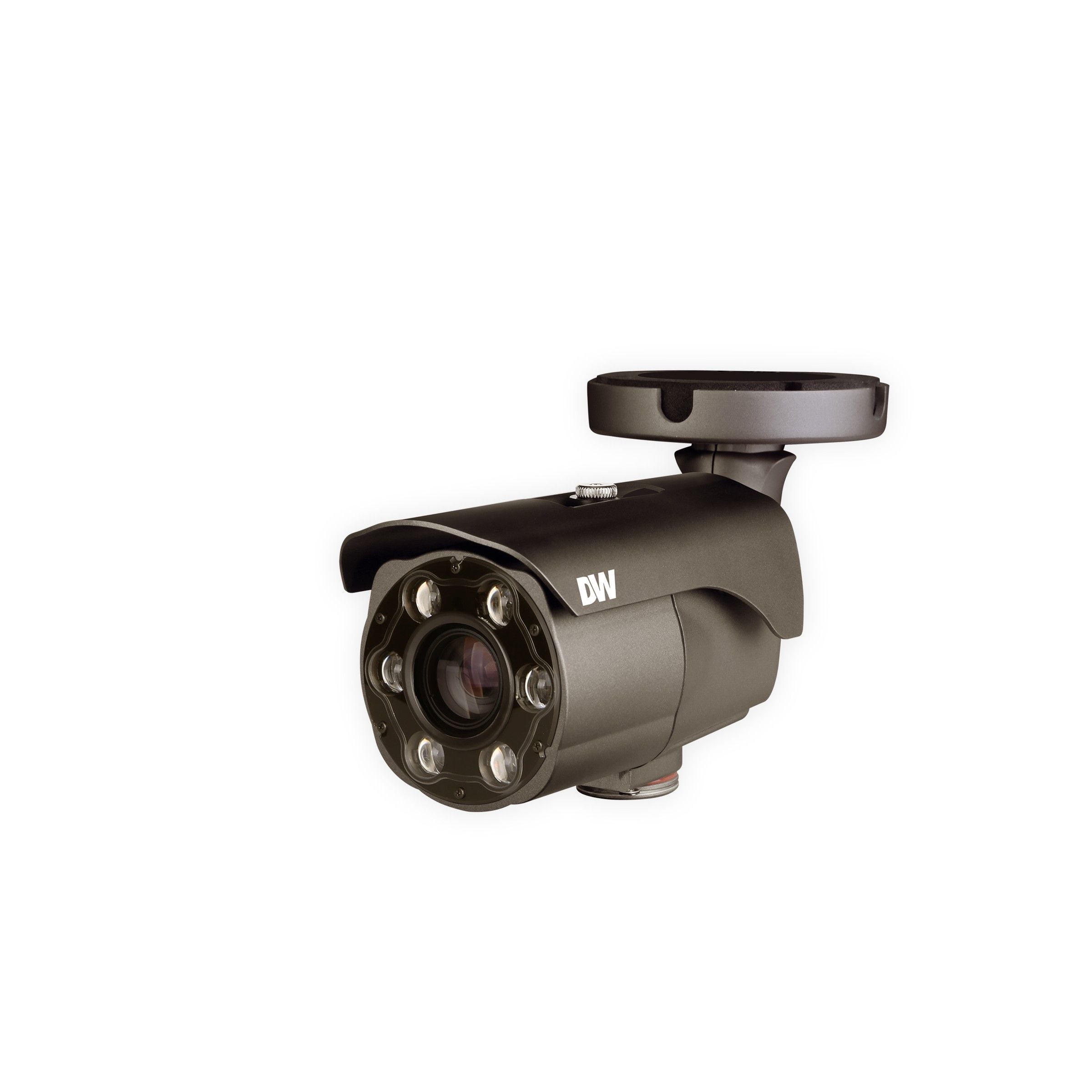

Digital Watchdog DWC-MB44WiAC5 4 Megapixel Network IR Outdoor Bullet Camera with 2.8-12mm Lens
SKU
DWC-MB44WiAC5
Model No
DWC-MB44WiAC5
was $823.35 Special Price $733.53
Product Highlights
- All-in-one cameras, no server required
- 4MP 1/3″ image sensor at real-time 30fps
- 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
- Built-in 256GB, 512GB or 1TB storage for up to 60 days retained video*
- Easy to deploy with pre-loaded DW Spectrum IPVMS for out-of-the box operation
Speak to an expert
The Digital Watchdog DWC-MB44WiAC5 is an advanced outdoor bullet camera that offers exceptional 4 Megapixel resolution and a versatile 2.8-12mm lens. Designed for durability and high performance, this camera is equipped with features such as Smart IR for nighttime visibility, dual codecs for flexible streaming, and built-in two-way audio, making it ideal for comprehensive surveillance in various environments.
Digital Watchdog DWC-MB44WiAC5 Camera Features
- All-in-One Solution: No server required, simplifying installation and maintenance.
- High-Quality Imaging: 4MP 1/3” image sensor provides high-resolution video at real-time 30fps.
- Versatile Lens: 2.8~12mm vari-focal P-iris lens with motorized zoom and auto-focus ensures clear images at various distances.
- Local Storage Options: Built-in storage of 256GB, 512GB or 1TB for up to 60 days of video retention.*
- Easy Setup: Comes pre-loaded with DW Spectrum IPVMS for out-of-the-box operation.
- Remote Access: 24/7 access to live and recorded video streams from anywhere.
- Simplified Installation: Automatic installation and licensing with first power on.
- Scalable System: Connect up to 30 MEGApix CaaS edge cameras for extensive coverage.
- True WDR: True Wide Dynamic Range technology for enhanced image quality in challenging lighting.
- Flexible Recording: Dual recording options available with Blackjack NAS appliance.
- Diverse Codec Support: Dual codecs (H.264, MJPEG) with simultaneous dual-stream for versatile use.
- Cold Start Capability: Operates in extreme cold conditions down to -40°F (-40°C).
- Intelligent IR: 120’ Smart IR™ with intelligent camera sync optimizes night visibility.
- Advanced Noise Reduction: Smart DNR™ technology reduces noise for clear images.
- True Day/Night Functionality: Mechanical IR cut filter enables accurate day/night switching.
- Privacy Control: Programmable privacy zones to enhance security.
- Enhanced Control: Features like auto gain control (AGC) and auto white balance (AWB) improve image quality.
- Motion Activation: Motion detection feature alerts you to potential security breaches.
- Two-Way Audio: Communication capabilities allow for interactive monitoring.
- Alarm Integration: Alarm sensor input and relay output for smart security integration.
- Built-In Web Server: Simplifies remote management and configuration.
- Power Versatility: Supports both PoE class 3 and DC12V for flexible installation options.
- Weather Resistant: IP66 rated for dust-tight and water-resistant operation.
- ONVIF Compliant: Conforms to ONVIF standards, ensuring compatibility with various systems.
- NDAA Compliant: Meets National Defense Authorization Act requirements for security products.
Digital Watchdog DWC-MB44WiAC5 Detailed Specifications
| Camera Type | 4 Megapixel Network IR Outdoor Bullet Camera |
| Resolution | 2560x1440 at 30fps |
| Lens | 2.8-12mm Autofocus Varifocal P-Iris |
| Night Vision | 120ft Smart IR |
| Sensor | 1/3” CMOS |
| Optical Zoom | 4.2X Optical Zoom |
| Power Options | Power over Ethernet [PoE] and DC12V |
| Audio Features | Two-Way Audio |
| Storage | Local SDHC Card Remote Backup |
| Environmental Rating | IP66 Certified |
| Dynamic Range | WDR (120dB) |
| Noise Reduction | 3D-DNR |
| Storage Capacity | 256GB, 512GB, or 1TB options |
| Integration | ONVIF, NDAA compliant |
SKU  | DWC-MB44WiAC5 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 8.77” x 3.07” (223 x 78mm) |
| Electronic Shutter | 1/15~1/32000 |
| Image Device | 4MP 1/3” CMOS |
| Image Pixels Total | 2688 (H) x 1520 (V) |
| Minimum Scene Illumination | 0.2 lux (color), 0.0 lux (B/W) |
| Operating Humidity | 10–90% RH (non–condensing) |
| Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Power Consumption | DC12V: Max 11W, PoE: Max 12.9W |
| Privacy Zone | 16 programmable privacy masks |
| Protocols | Zero config (Auto IP), ONVIF, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/ v3 (MIB-2) |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Angle of View | 87° ~ 32° |
| IR Distance | 36m/120ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
