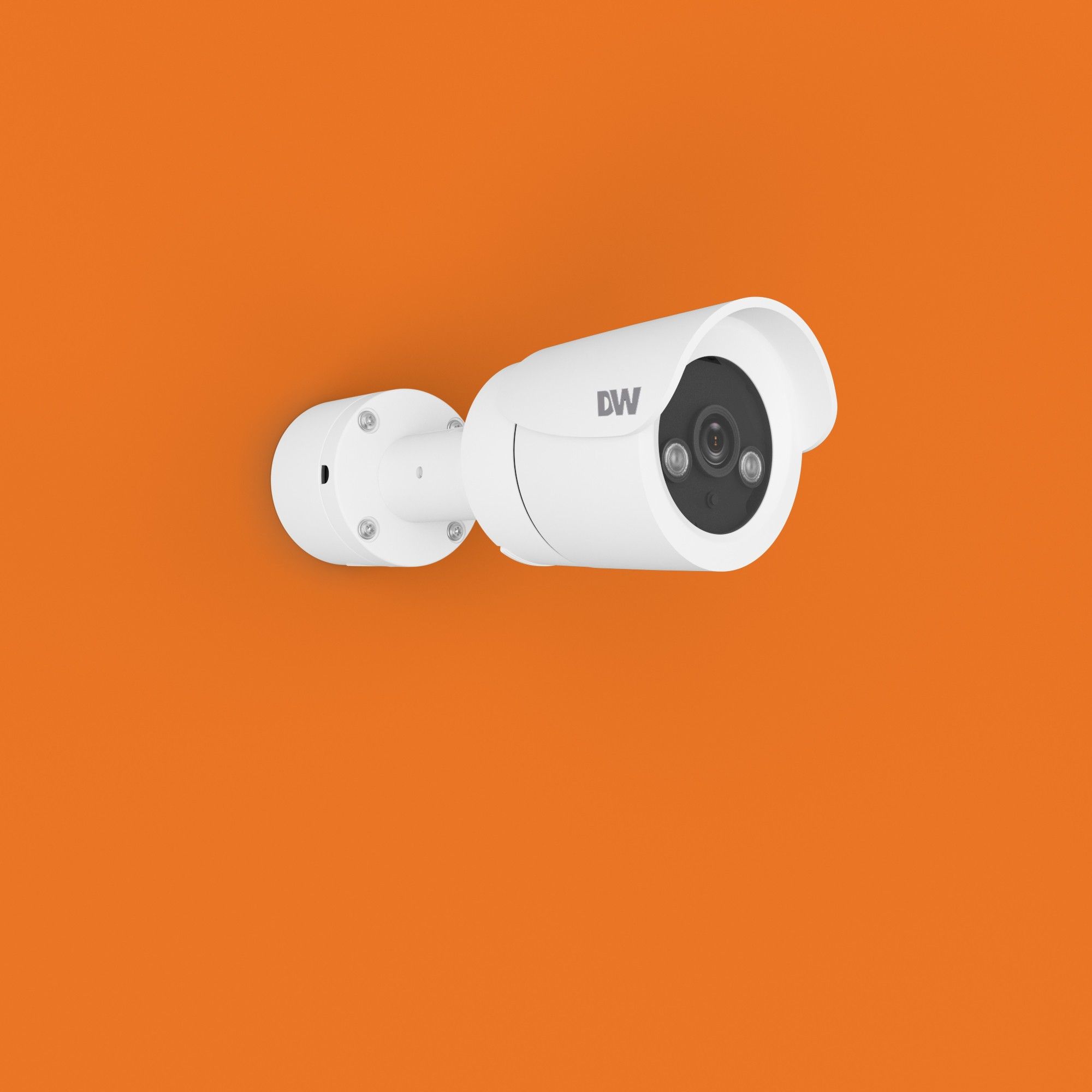

Digital Watchdog DWC-B7553WTIRW 5MP Star-Light Plus UHDoC IR Bullet Camera with 4mm Lens
SKU
DWC-B7553WTIRW
Model No
DWC-B7553WTIRW
was $196.00 Special Price $149.94
Product Highlights
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI
- Star-Light™color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
Speak to an expert
Introducing the Digital Watchdog DWC-B7553WTIRW 5MP Star-Light Plus UHDoC IR Bullet Camera, a cutting-edge surveillance solution designed to provide superior image quality both day and night. With its advanced Star-Light Plus™ technology, it ensures vibrant color images even in near-total darkness, while offering robust support for HD-Analog, HD-TVI, and HD-CVI formats. This durable, weather-resistant camera simplifies installation and operation through Universal HD over Coax® technology, making it a smart choice for any security setup.
Digital Watchdog DWC-B7553WTIRW Key Features
- Universal HD over Coax® technology: Ensures compatibility with HD-Analog, HD-TVI, HD-CVI formats for versatile usage.
- Star-Light™ color in near-total darkness: Delivers color video in low-light conditions for enhanced visibility.
- 1/2.8" image sensor: Provides high-quality imaging for clear and detailed footage.
- 5MP at 20fps, 4MP at real-time 30fps: Offers high-resolution recording speed for effective surveillance.
- 4.0mm fixed lens: Ideal for a broad field of view, ensuring comprehensive monitoring.
- True wide dynamic range (WDR): Enhances image quality in challenging lighting conditions.
- OSD control via coaxial (UTC): Simplifies camera settings and adjustments through coax cabling.
- 70' Smart IR™: Intelligent infrared illumination for night visibility up to 70 feet.
- Smart DNR™ 3D digital noise reduction: Minimizes noise for clearer images in low-light scenarios.
- True day/night mechanical IR cut filter: Ensures optimal performance in varying light conditions.
- De-Fog™ extreme weather image compensation: Enhances visibility in adverse weather conditions.
- Easy icon driven OSD menu: User-friendly interface with built-in joystick for seamless operation.
- Programmable privacy zones: Customizable areas to block off selected sections from monitoring.
- Auto gain control (AGC): Automatically adjusts sensitivity for optimal image quality.
- Backlight compensation (BLC): Improves visibility in backlit environments.
- Auto white balance (AWB): Achieves accurate color reproduction in various lighting.
- UL listed: Ensures safety and reliability for use in various environments.
- IP66 environmental-rated: Dust-tight and water-resistant, suitable for outdoor installations.
- NDAA compliant: Meets regulatory standards for security equipment sourcing.
Digital Watchdog DWC-B7553WTIRW Detailed Specifications
| Feature | Details |
| Model | DWC-B7553WTIRW |
| Technology | Universal HD over Coax® |
| Sensor Type | 1/2.8" image sensor |
| Resolution | 5MP at 20fps, 4MP at real-time 30fps |
| Lens | 4.0mm fixed lens |
| Infrared Range | 70' Smart IR™ |
| Weather Rating | IP66 rated |
| Dynamic Range | True WDR |
| Noise Reduction | Smart DNR™ 3D digital |
| Dimensions | Standard model size |
| Power Supply | Standard voltage requirements |
| Compliance | NDAA compliant, UL listed |
SKU  | DWC-B7553WTIRW |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/30-1/30,000 |
| Gamma Correction | 0.45 |
| Image Device | 5MP 1/2.8" CMOS |
| IR Distance | 21.33m/70ft |
| Minimum Scene Illumination | 0.16 lux (color), 0 lux (B&W) |
| Operating Humidity | 10–90% RH (non–condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Dimensions (W x H) | 6.41" x 2.51” (163 x 67.5 mm) |
| Power Consumption | DC12V(LED OFF): 2W (176mA), DC12V(LED ON): 3.9W (333mA) |
| Scanning System | Progressive scan |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D/2D DNR |
| Angle of View | 82° |
| Auto Gain Control | Max 72dB |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
