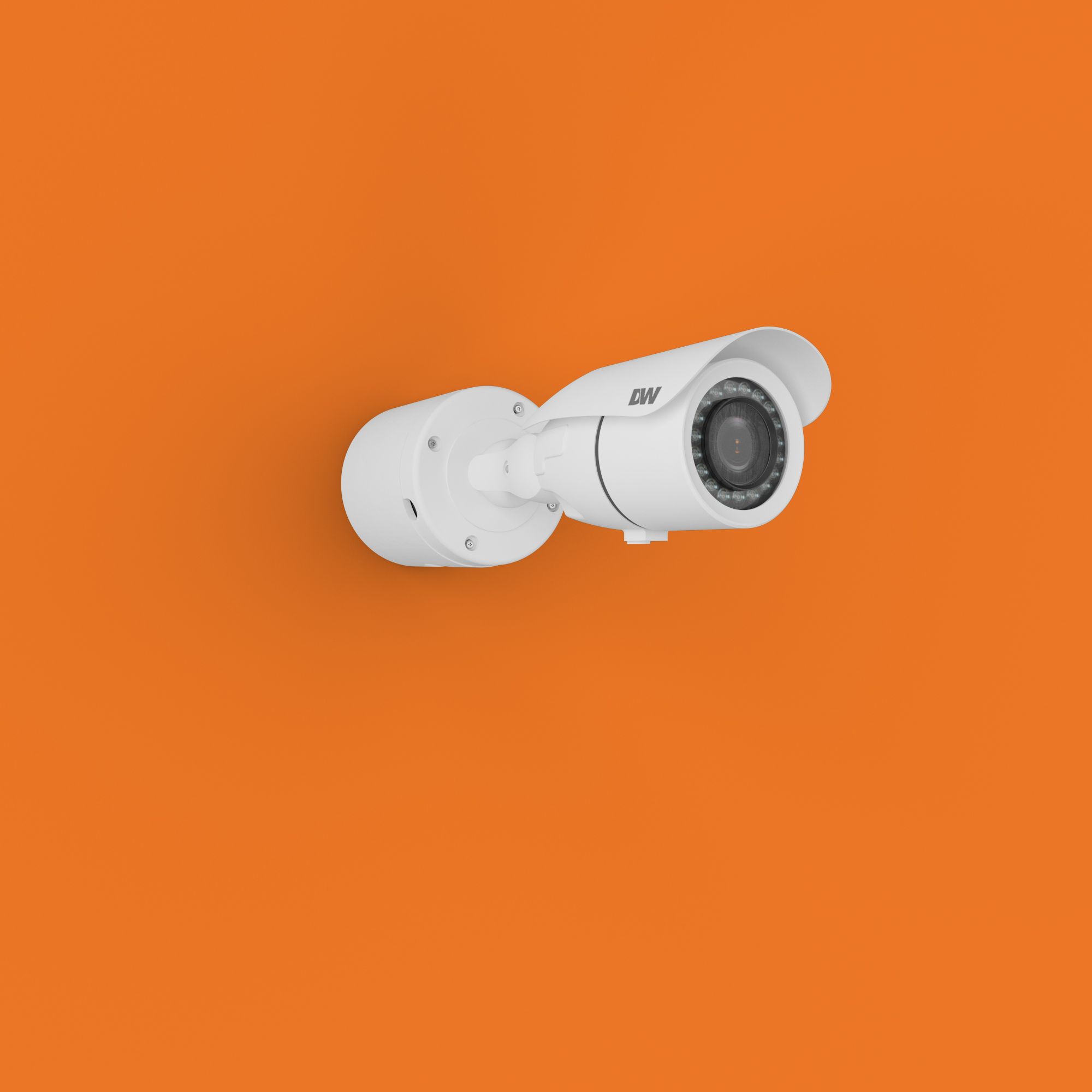

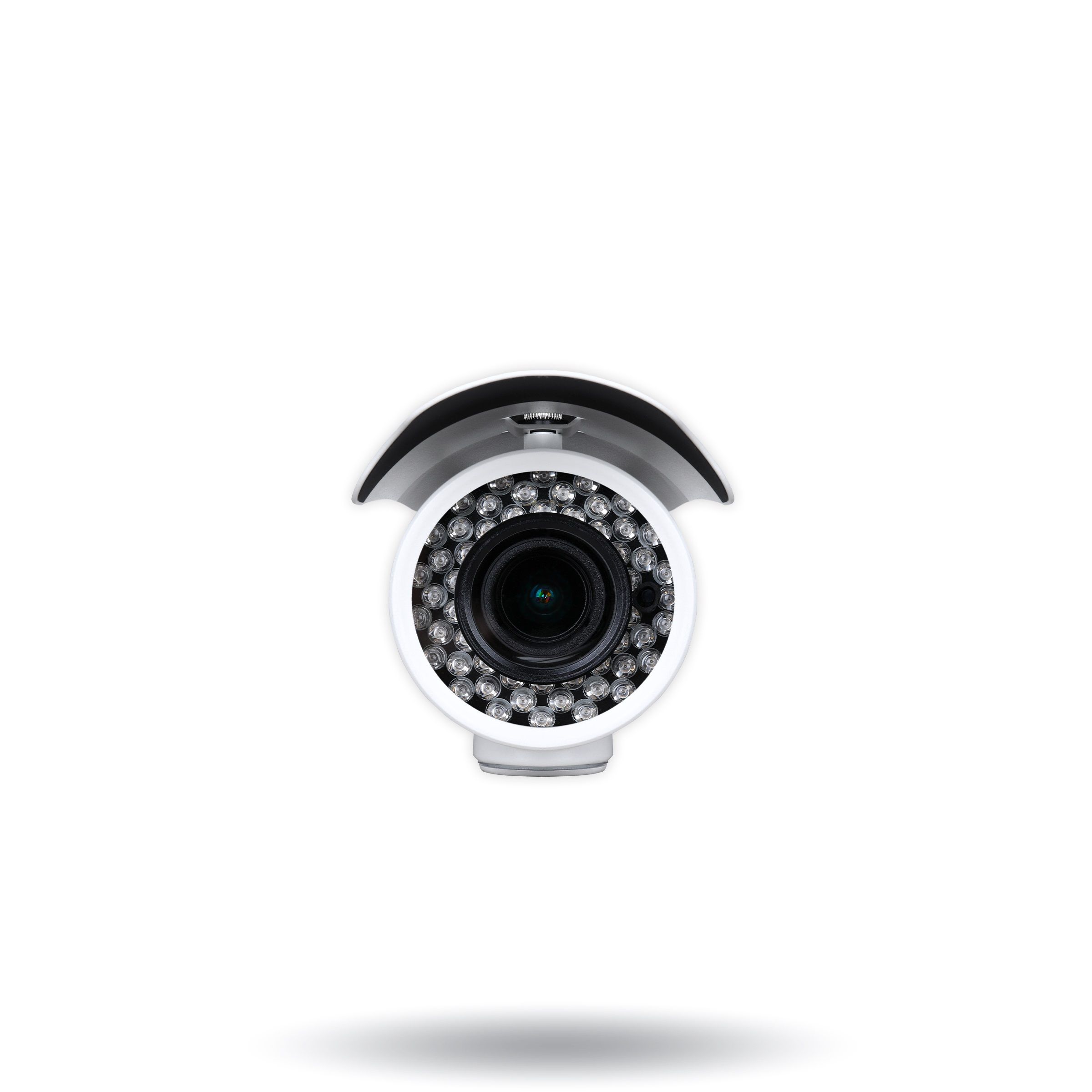

Digital Watchdog DWC-B6853WTIRW 4K Star-Light Plus UHDoC IR Bullet Camera with 2.8mm Lens

SKU
DWC-B6853WTIRW
Model No
DWC-B6853WTIRW
was $311.00 Special Price $237.65
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
  • Star-Light Plus™color in near-total darkness technology
  • 1/1.8" image sensor
  • 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
  • 2.8mm fixed lens

Featuring Star-Light Plus™ color in near-total darkness, the Digital Watchdog DWC-B6853WTIRW 4K Star-Light Plus UHDoC IR Bullet Camera with 2.8mm Lens offers exceptional surveillance capabilities with its advanced technology. This camera delivers crystal-clear images and supports a variety of signal types, making it a versatile solution for any security system. With its weather-resistant design and compatibility with existing coax infrastructure, this camera ensures high-resolution surveillance that is both cost-effective and reliable.

Digital Watchdog DWC-B6853WTIRW Camera Features

  • Universal HD over Coax®: Supports HD-Analog, HD-TVI, HD-CVI, and all legacy analog signals for versatile compatibility.
  • Star-Light Plus™ Technology: Provides full-color images in near-total darkness, enhancing low-light surveillance capabilities.
  • 1/1.8" Image Sensor: Delivers high-quality images and improves performance in various lighting conditions.
  • 4K at 15fps: Capable of 4MP or 2.1MP/1080p at real-time 30fps for superior resolution and clarity.
  • 2.8mm Fixed Lens: Offers a wide field of view, ideal for capturing more detail in surveillance footage.
  • True Wide Dynamic Range (WDR): Improves image quality in scenes with both bright and dark areas.
  • OSD Control via Coaxial (UTC): Simplifies configuration and control through a single coaxial cable.
  • 100' Smart IR™: Features intelligent camera sync to enhance night-time visibility.
  • Smart DNR™ 3D: Reduces noise in images for clearer video output.
  • True Day/Night Mechanical IR Cut Filter: Switches automatically for optimal performance in different lighting conditions.
  • De-Fog™ Technology: Compensates for extreme weather conditions to maintain clear visibility.
  • Easy Icon Driven OSD Menu: Built-in joystick provides easy navigation for settings adjustments.
  • Programmable Privacy Zones: Allows users to set areas in the camera's view that will not be recorded.
  • Auto Gain Control (AGC): Automatically adjusts the video signal for better image quality.
  • Backlight Compensation (BLC): Enhances video quality in backlit environments.
  • Auto White Balance (AWB): Ensures accurate color representation under varying lighting conditions.
  • UL Listed: Meets safety standards for electronic devices.
  • NDAA Compliant: Ensures adherence to national security standards.
  • IP66 Environmental Rating: Dust-tight and water-resistant for reliable outdoor use.

Digital Watchdog DWC-B6853WTIRW Detailed Camera Specifications

FeatureDetail
ModelDWC-B6853WTIRW
Image Sensor1/1.8" CMOS
Resolution4K at 15fps, 4MP, 2.1MP/1080p at 30fps
Lens2.8mm Fixed Lens
IR Distance100' Smart IR™
Dynamic RangeTrue WDR
Weather ResistanceIP66 Rating
Power Supply12V DC
CommunicationUTC Control via Coax
Dimensions4.8" x 2.5" x 2.6"
Weight1.4 lbs
SKU  DWC-B6853WTIRW
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Analog, HD-AHD, HD-CVI, HD-TVI
Resolution    8 Megapixel
Sensor Option    1/1.8" CMOS
Lens Type    Fixed
Lens Size    2.8mm
Infrared Distance    61~100 Feet
Durability    Weather Resistant

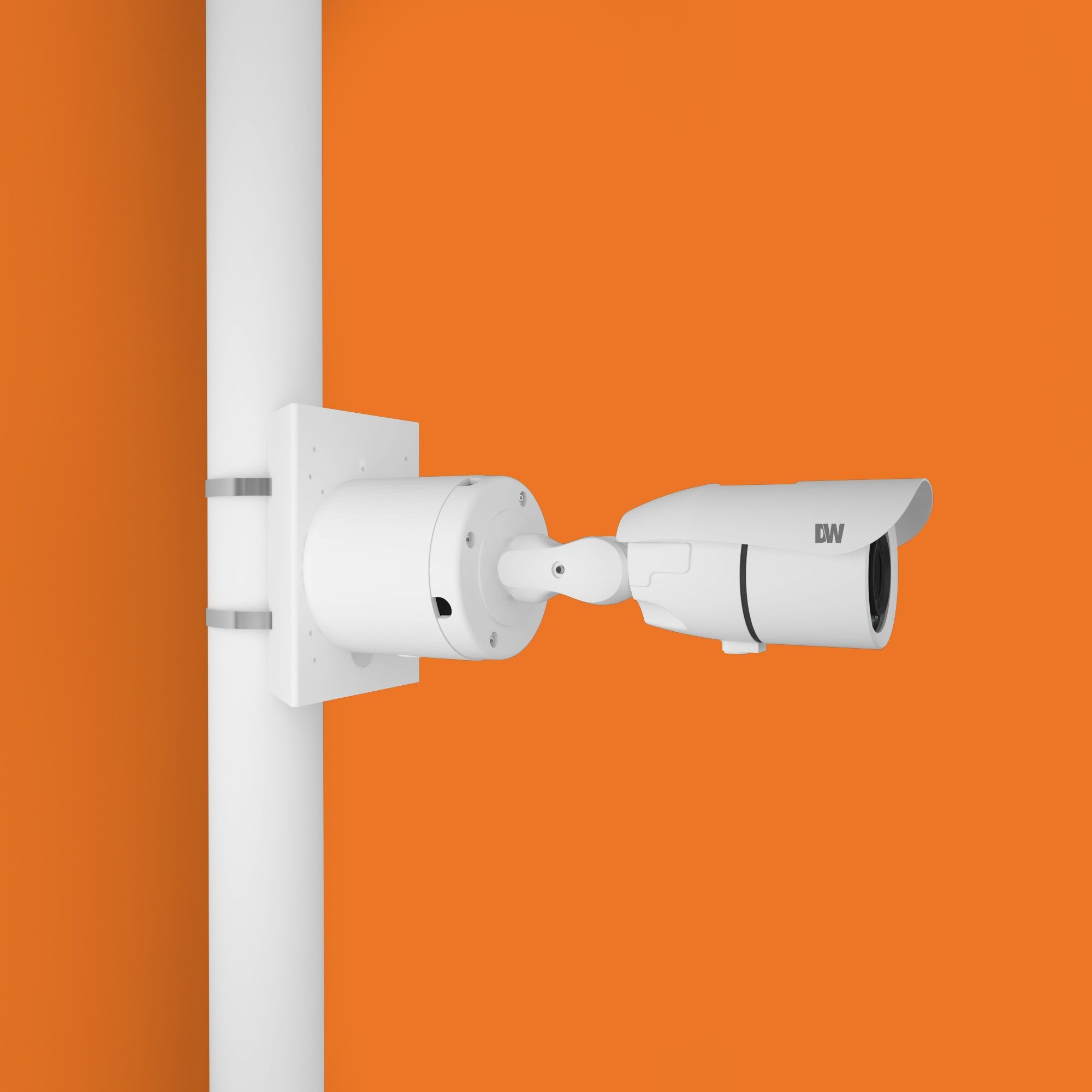

Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    1/30-1/30,000
Gamma Correction  0.45
Image Device    4K 1/1.8" CMOS
IR Distance  30.48m/100ft
Minimum Scene Illumination  0.1 lux (color), 0 lux (B/W)
Operating Humidity    10–90% RH (non–condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Dimensions (W x H)  8.83" x 3.81" (224.5 x 96.7 mm)
Power Consumption  DC12V (LED off): 3W, 250mA, DC12V (LED on): 4.2W, 352mA
Scanning System    Progressive scan
Weatherproof    IP66
Digital Noise Reduction    3D/2D DNR
Angle of View    106.5°
Auto Gain Control    Max 60dB
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
