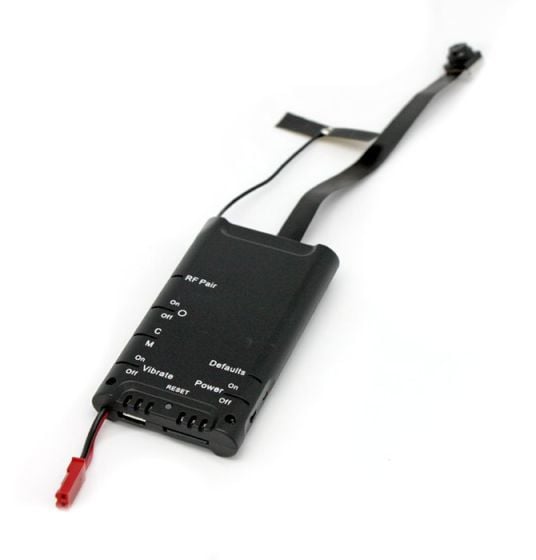

KJB DVR272WFA DIY Portable Wi-fi Module Network Covert Camera with Audio, 4mm Lens
SKU
DVR272WFA
Model No
DVR272WFA
$305.00
Product Highlights
- CMOS sensor 3MP, 1/3″ progressive
- Easy use with the included remote control
- Three resolution to choose from 1080p / 720p / WVGA
- IP feature means you can stream live video from anyway and view live
- Make your own hidden camera with this tiny DVR
Speak to an expert

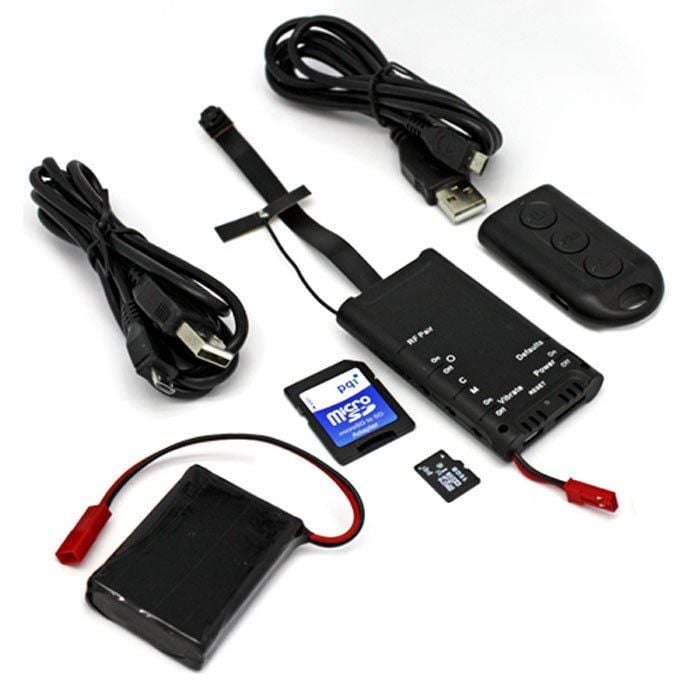

The DVR272WFA from KJB is a DIY portable Wi-fi module network covert camera with audio, 4mm lens. It lets you create a wi-fi camera in any object or appliance unique to your environment.
KJB DVR272WFA Camera Features
- CMOS Sensor: 3MP, 1/3” progressive for high-quality imaging.
- Remote Control: Easy use with the included remote control for hassle-free operation.
- Multiple Resolutions: Choose between 1080p / 720p / WVGA to suit your viewing preference.
- Live Streaming: The IP feature allows you to stream live video from anywhere and view it in real-time.
- DIY Hidden Camera: Customize your setup and make your own hidden camera with this tiny DVR.
- Flexible Installation: Install the extended hidden camera in any way you like for ultimate versatility.
- App Integration: View, operate, take pictures, and playback on the free PV Cam Viewer app.
- Long Recording Time: Up to 300 minutes of recording with a 16G card for extended surveillance.
- Battery Powered: Convenient battery operation allows easy installation and use.
- LawMate Part Number: PV-DY10i for authentic accessories and support.
KJB DVR272WFA Detailed Specifications
| Feature | Details |
| Camera Type | Portable Wi-Fi Module |
| Lens | 4mm |
| Sensor Type | CMOS |
| Image Resolution | 1080p / 720p / WVGA |
| Recording Time | Up to 300 mins |
| Power Source | Battery Powered |
| App Support | PV Cam Viewer |
| LawMate Part Number | PV-DY10i |
SKU  | DVR272WFA |
|---|---|
| Features | Self Recording |
| Manufacturer | KJB |
Camera Signal  | Network IP |
| Connection Type | Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Compression Method | JPEG |
| Durability | Indoor |
| Voltage | 5vDC |
| Image Device | Built-in image sensor 1/3" progressive CMOS sensor |
| Minimum Scene Illumination | 3.3 Lux @ F 2.0 |
| Power Consumption | 450mA-500mA（WIFI OFF)(WIFI ON+60mA) |
| Angle of View | 66° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Self Recording | Yes |
