Hikvision DS-2TP21B-6AVF-W Remperature Screening Thermographic Handheld Camera
SKU
DS-2TP21B-6AVF-W
Model No
DS-2TP21B-6AVF-W
$1,817.80
Product Highlights
- 160 × 120 resolution (thermal), and 8 MP resolution (optical)
- DDE,3D DNR, and adaptive AGC
- 640 × 480 resolution 3.5” LCD touch display
- Up to five hours continuous running
Speak to an expert

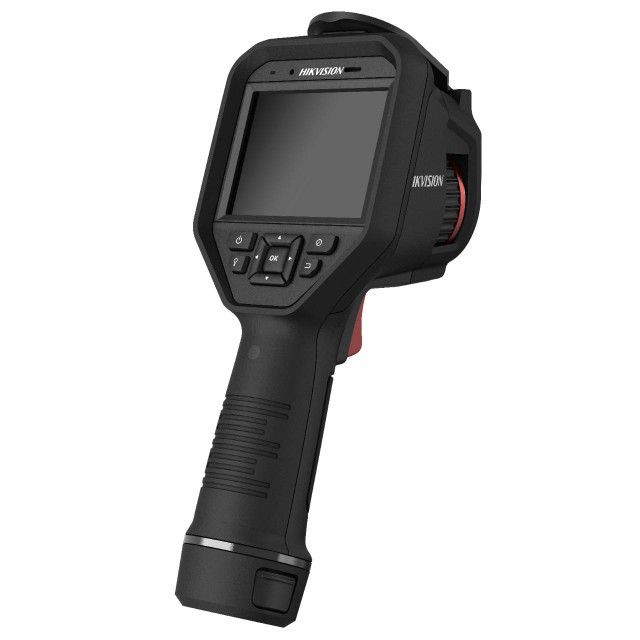

The Hikvision DS-2TP21B-6AVF-W Temperature Screening Thermographic Handheld Camera is engineered for precise surface temperature measurement, featuring a dual-channel display that fuses optical and thermal images for enhanced detection. Its portability, user-friendly interface, and long battery life make it an ideal tool for quickly identifying elevated temperature targets, although it is not intended for medical diagnostics.
Hikvision Camera Features
- 160 - 120 resolution (thermal) and 8 MP resolution (optical) for clear imaging, allowing for accurate identification of temperature anomalies.
- DDE, 3D DNR, and adaptive AGC enhance image quality in varying light conditions, providing reliable performance in diverse environments.
- 640 - 480 resolution 3.5″ LCD touch display offers intuitive operation and easy access to thermal and optical views, streamlining the user experience.
- Up to five hours of continuous running time ensures prolonged usage without interruption, making it suitable for extensive monitoring tasks.
Detailed Camera Specifications
| Model | Hikvision DS-2TP21B-6AVF-W |
| Thermal Resolution | 160 - 120 |
| Optical Resolution | 8 MP |
| Display Type | 3.5″ LCD Touch Screen |
| Display Resolution | 640 - 480 |
| Battery Life | Up to 5 hours |
| Weight | Lightweight and portable |
| Usage | Non-medical temperature screening |
SKU  | DS-2TP21B-6AVF-W |
|---|---|
| Features | Audio, Digital Zoom, Weather Resistant |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 160 X 120 |
| Lens Type | Varifocal |
| Lens Size | 6.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 5vDC |

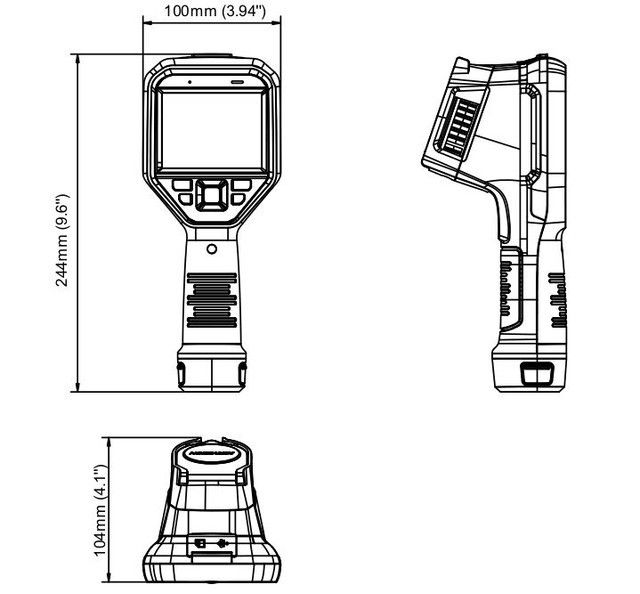

| Dimensions (W x H) | 244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″) |
| Electronic Shutter | 1 s to 1/100,000 s |
| Image Device | Uncooled Focal Plane Arrays |
| Image Pixels Total | 17 μm |
| Minimum Scene Illumination | Color: 0.0089 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | 50° to 95° F (10° to 35° C) (indoor and windless environment use only) |
| Power Consumption | 4.5 W |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Weatherproof | IP54 |
| Zoom Ratio | 1×, 2×, 4× |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 25° × 18.7° |
| IR Distance | 15m/49ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Digital Zoom | Yes |
