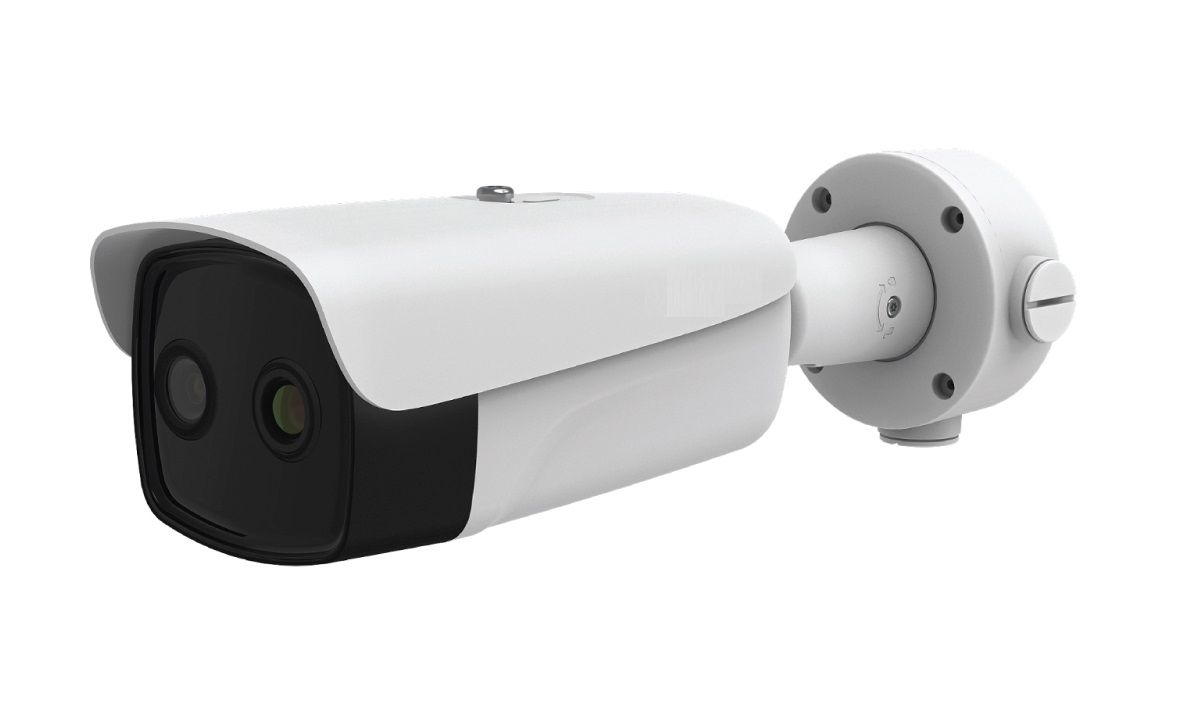

Hikvision DS-2TD2636B-13-P Temperature Screening Thermographic Bullet Camera
SKU
DS-2TD2636B-13-P
Model No
DS-2TD2636B-13-P
$6,300.00
Product Highlights
- 384 x 288 high resolution in thermal channel, high sensitivity sensor
- Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
- Reliable temperature exception alarm function
- 4MP resolution in optical channel
- 3D DNR, image detail enhancement
Speak to an expert
Hikvision DS-2TD2636B Temperature Screening Thermographic Bullet camera is designed to detect elevated skin-surface temperature with high accuracy in real time. It can be used for preliminary temperature screening in office buildings, factories, stations, airports, and other public places.
Hikvision Camera Features
- 384 × 288 high resolution in thermal channel, high sensitivity sensor - ensures precise temperature detection for effective screening.
- Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C - provides reliable temperature readings within a safe and effective range.
- Reliable temperature exception alarm function - alerts users immediately when elevated temperatures are detected, enhancing safety measures.
- 4MP resolution in optical channel - delivers clear visual monitoring alongside thermal detection for comprehensive surveillance.
- 3D DNR, image detail enhancement - improves image quality, ensuring accurate detection in various lighting conditions.
Detailed Camera Specifications
| Model | DS-2TD2636B-13-P |
| Sensor Type | Thermal + Optical |
| Thermal Resolution | 384 × 288 |
| Optical Resolution | 4MP |
| Temperature Measurement Range | 30°C to 45°C |
| Temperature Measurement Accuracy | ±0.5 °C |
| Alarm Function | Temperature exception alarm |
| Noise Reduction | 3D DNR |
SKU  | DS-2TD2636B-13-P |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 384 X 288 |
| Lens Type | Fixed |
| Lens Size | 13mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |
| Electronic Shutter | 1 s to 1/100,000 s |
| Image Device | Vanadium Oxide Uncooled Focal Plane Arrays |
| Minimum Scene Illumination | Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
| Operating Humidity | 95% or less |
| Operating Temperature | 10 °C to 35 °C（Indoor and windless environment use only） |
| Power Consumption | 18 VAC to 30 VAC: 0.38 A to 0.22 A, maximum 9 W / 9 VDC to 15 VDC: 0.63 A to 1.06 A, maximum 9 W / PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, maximum 9.5 W |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D |
| Angle of View | 51.7° × 28° (H × V) |
| IR Distance | Up to 50 m |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
