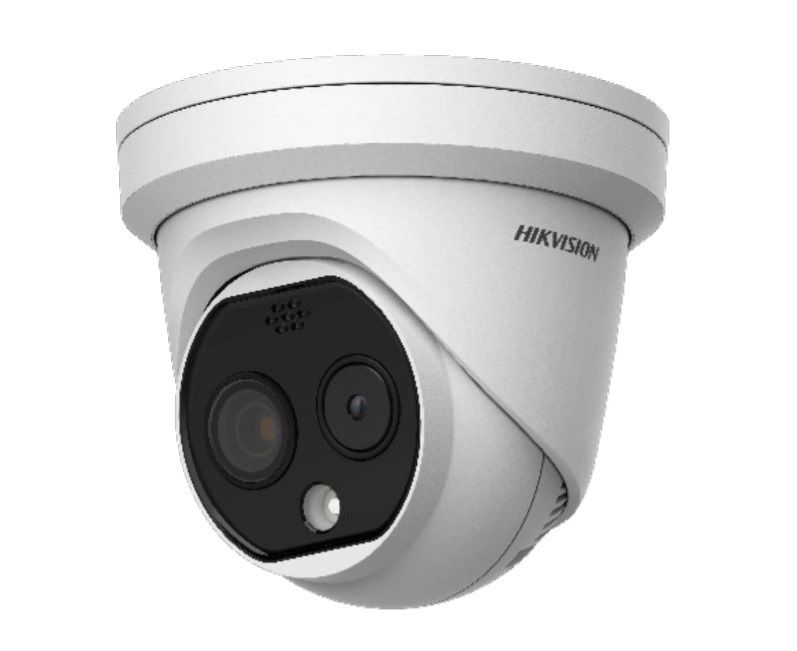

Hikvision DS-2TD1217-3-PA Thermal and Optical Network Turret Camera with 3.1mm Lens
- Line Crossing, Intrusion, Region Entrance/Exit with Human and Vehicle Filtering
- 160 x 120 Thermal Resolution (Upscaled to 320 x 240)
- 3.1 mm Thermal Lens Options
- H.265/H.264/MJPEG
- Reliable Temperature Exception Alarm Function
Thermal and Optical Network Turret Camera
- Hikvision DS-2TD1217-3-PA Thermal and Optical Turret Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision's deep learning technology.
The sensor's 160 x 120 resolution is upscaled to 320 x 240 and features adaptive AGC (Automatic Gain Control), 3D DNR (Digital Noise Reduction), and Image Detail Enhancement. The 4 MP optical sensor provides outstanding color video in very dim environments down to 0.0089 lux, and built-in IR illumination allows black and white optical surveillance in zero-light conditions up to 49 ft (15m).
This camera series features a strobe light and audio alarm, as well as a fire detection algorithm that can be used for the protection of sensitive areas.
Camera Functions
Audio
Auto Gain Control
Day/Night Vision
3D DNR
Weather Resistant
WDR
Camera Features
| Line Crossing, Intrusion, Region Entrance/Exit with Human and Vehicle Filtering | H.265/H.264/MJPEG |
| 160 x 120 Thermal Resolution (Upscaled to 320 x 240) | Reliable Temperature Exception Alarm Function |
| 3.1 mm Thermal Lens Options | PoE (802.3af), 12 VDC, Maximum 6 W |
Intelligent Awareness at Any Moment – Hikvision Thermal Cameras
Hikvision Thermal Cameras guarantee layered situational awareness across a wide range of scenarios such as perimeter protection, temperature measurement, fire detection, etc. They “see” from extended distances under virtually any light or weather condition, distinguishing people and vehicles from other objects with Deep Learning capabilities. Augmented with visible light imaging and visualized metadata, Hikvision Thermal Cameras are the ideal choice for enhanced awareness of events and emergencies 24/7.
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2TD1217-3-PA |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 160 X 120 |
| Lens Type | Fixed |
| Lens Size | 3.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.45" × 5.45" × 4.85" (138.3 mm × 138.3 mm × 123.1 mm) |
| Electronic Shutter | 1s to 1/100,000s |
| Image Device | 1/2.7" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.0089 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -40° to 149° F (-40° to 65° C) |
| Power Consumption | 12 VDC ±20%: 0.5 A, maximum 6 W, PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, maximum 6.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 50° × 37.2° (H x V) |
| IR Distance | 15m/49ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
DS-2TD1217-3-PA-Specsheet DS-2TD1217-3-PA-Quick-Start-Guide
