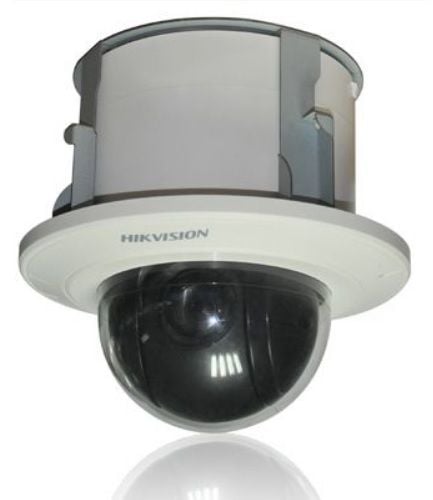

Hikvision DS-2DF5232X-AEL 2 Megapixel Outdoor Network PTZ Dome Camera, 32X
SKU
DS-2DF5232X-AEL
Model No
DS-2DF5232X-AEL
$1,371.42
Product Highlights
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- 32 × optical zoom, 16 × digital zoom
- 120dB WDR, 3D DNR, HLC
- 24 VAC & Hi-PoE
Speak to an expert
The Hikvision DS-2DF5232X-AEL 2 Megapixel Outdoor Network PTZ Dome Camera offers advanced surveillance capabilities with its exceptional optical zoom and high-resolution imaging. Perfect for outdoor environments, this camera ensures superior performance with advanced features designed to enhance safety and security in various settings.
Hikvision DS-2DF5232X-AEL Camera Features
- 1/2.8" Progressive Scan CMOS: Provides high-quality images with improved light sensitivity, ensuring clear visuals even in low-light conditions.
- Up to 1920 × 1080 Resolution: Delivers full HD video output, allowing for detailed monitoring and easy identification of objects.
- 32 × Optical Zoom, 16 × Digital Zoom: Equipped with powerful zoom capabilities, enabling users to capture fine details from great distances.
- 120dB WDR, 3D DNR, HLC: Features high dynamic range and noise reduction technologies, ensuring excellent image clarity in challenging lighting environments.
- 24 VAC & Hi-PoE: Offers flexible power options, making installation easy and convenient in various outdoor setups.
Detailed Specifications for Hikvision DS-2DF5232X-AEL
| Camera Type | Outdoor Network PTZ Dome Camera |
| Megapixels | 2 Megapixels |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | Up to 1920 × 1080 |
| Optical Zoom | 32 × |
| Digital Zoom | 16 × |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | 3D DNR |
| High Light Compensation | HLC |
| Power Supply | 24 VAC & Hi-PoE |
SKU  | DS-2DF5232X-AEL |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | HPoE |
| Automatic Gain Control (AGC) | Auto/Manual |
| Dimensions (W x H) | Φ 220 mm × 302 mm (Φ 8.66" × 11.89") |
| Electronic Shutter | 1/1 s to 1/30,000 s |
| Image Device | 1/2.8" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.002 Lux @(F1.2, AGC ON), B/W: 0.0002 Lux @(F1.2, AGC ON) |
| Operating Humidity | ≤ 90% |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Power Consumption | 24 VAC: Max. 60 W, Hi-PoE: Max. 50 W |
| Privacy Zone | 24 programmable polygon privacy masks |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D: Support |
| Angle of View | Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele) |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
