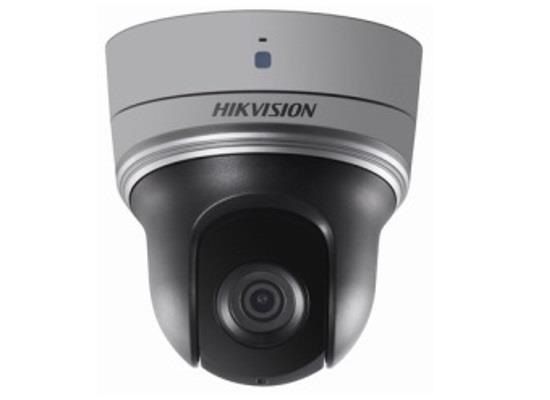

Hikvision DS-2DE2204IW-DE3 2 Megapixel Indoor Network IR Mini PTZ Camera, 4X Lens
SKU
DS-2DE2204IW-DE3
Model No
DS-2DE2204IW-DE3
$228.38
Product Highlights
- 1/2.8" Progressive Scan CMOS
- Up to 1920 x 1080 Resolution
- Up to 65 ft (20 m) IR Distance
- H.265+/H.265 Video Compression
- 4x Optical Zoom, 16x Digital Zoom
Speak to an expert
2 Megapixel Indoor Network IR Mini PTZ Camera
- Hikvision's DS-2DE2204IW-DE3 Value Series Network IR Mini PTZ Cameras are designed for indoor security applications. The embedded 1/2.8" progressive scan CMOS chip makes DWDR and 1080p real-time resolution possible. IR capability up to 65 (20 ft) supports indoor viewing in low-light conditions. The DS-2DE2204IW-DE3 IR Mini PTZ Camera also features a wide range of functions, including intrusion detection, line crossing detection, and audio exception, benefitting users with great improvements in security efficiency and, more importantly, with key events or objects recorded for further forensic needs.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Digital Zoom
Mirror
Motion Detection
Onvif
Privacy Masking
WDR
Camera Features
| 1/2.8" Progressive Scan CMOS | 4x Optical Zoom, 16x Digital Zoom |
| Up to 1920 x 1080 Resolution | Electronic Image Stabilization |
| Minimum Illumination: Color: 0.05 Lux @ (Æ’/2.0, AGC on) B/W: 0.005 Lux @ (Æ’/2.0, AGC on) 0 Lux with IR | Smart Detection: Line Cross, Intrusion, Region Enter/Exit |
| Up to 65 ft (20 m) IR Distance | Digital WDR, 3D DNR, HLC, BLC |
| H.265+/H.265 Video Compression | 12 VDC (maximum 9 W); PoE+ (802.3at) |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2DE2204IW-DE3 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 4X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Indoor |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Auto/Manual |
| Dimensions (W x H) | Φ4.9" × 5.4" (Φ125 mm × 137.2 mm) |
| Electronic Shutter | 1/1 to 1/10,000s |
| Image Device | 1/2.8" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.05 lux @ (ƒ/2.0, AGC on), B/W: 0.005 lux @ (ƒ/2.0, AGC on) |
| Operating Humidity | ≤90% non-condensing |
| Operating Temperature | -14° to 122° F (-10° to 50° C) |
| OSD Menu | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, V |
| Power Consumption | Maximum: 9 W, including maximum 4 W for IR |
| Privacy Zone | 8 programmable privacy masks |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Signal System | PAL/NTSC |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 100° to 25° (wide−tele) |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/manual/ATW (auto tracking white balance)/indoor/outdoor/daylight lamp/sodium lamp |
| IR Distance | 20m/65.62ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
