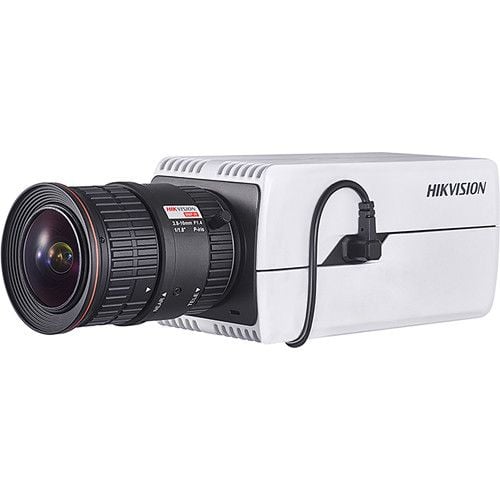

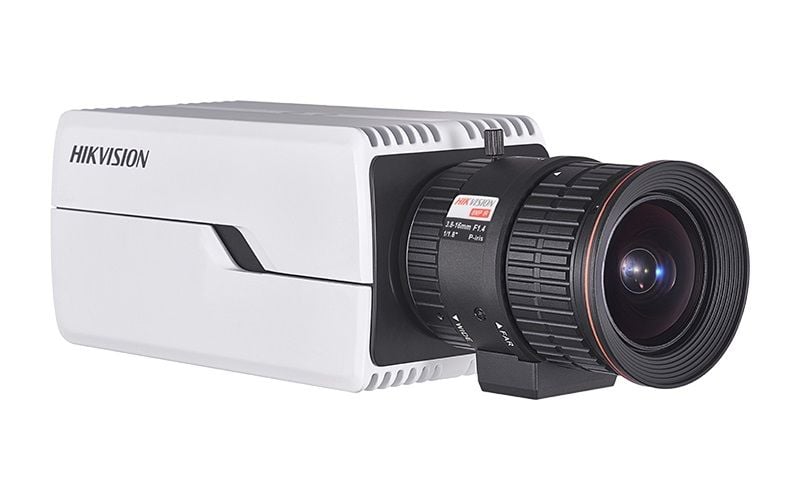

Hikvision DS-2CD7046G0-AP 4 Megapixel Indoor Network Box Camera
SKU
DS-2CD7046G0-AP
Model No
DS-2CD7046G0-AP
$582.79
Product Highlights
- 1/1.8" (4 MP) Progressive Scan CMOS
- Up to 2560 x 1440 Resolution @ 30 fps
- Human, Vehicle, and Face Detection
- Auto-Iris, DC Drive, P-Iris Lens Support
- Ultra-Low Light, 0.002 Lux (with f/1.2 Lens), Darkfighter Technology
Speak to an expert
4 Megapixel Indoor Network Box Camera
- The Hikvision DS-2CD7046G0-AP Indoor Network Box Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage. Darkfighter technology allows for viewing and recording in ultra low-light conditions. With a WDR of 140 dB and Lightfighter technology, it provides superb image quality. Advanced DeepinView features include human, vehicle, and face detection, and the ability to differentiate between specific target types.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
Onvif
Privacy Masking
WDR
Camera Features
| 1/1.8" (4 MP) Progressive Scan CMOS | H.265+, H.265, H.264+, H.264 |
| Up to 2560 x 1440 Resolution @ 30 fps | 5 Defined Streams and 5 Custom Streams |
| Human, Vehicle, and Face Detection | 140dB WDR, Lightfighter Technology |
| Auto-Iris, DC Drive, P-Iris Lens Support | Alarm Input/Output |
| Ultra-Low Light, 0.002 Lux (with f/1.2 Lens), Darkfighter Technology | 12 VDC Accessory Output |
| MicroSD Card Slot Supports 256 GB | 12 VDC and PoE (802.3af) |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2CD7046G0-AP |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Indoor |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 5.61" × 2.75" × 2.68" (142.6 mm × 69.8 mm × 68 mm) |
| Electronic Shutter | 1s to 1/100,000 s |
| Image Device | 1/1.8" (4 MP) progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.002 lux @ (f/1.2, AGC on), B/W: 0.0002 lux @ (f/1.2, AGC on) |
| Operating Humidity | 95% or less (non-condensation) |
| Operating Temperature | -22° F to 140° F (-30° C to 60° C) |
| Power Consumption | 12 VDC: maximum 9 W; 24 VAC: maximum 9 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| Scanning System | Progressive |
| Digital Noise Reduction | 3D DNR |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
