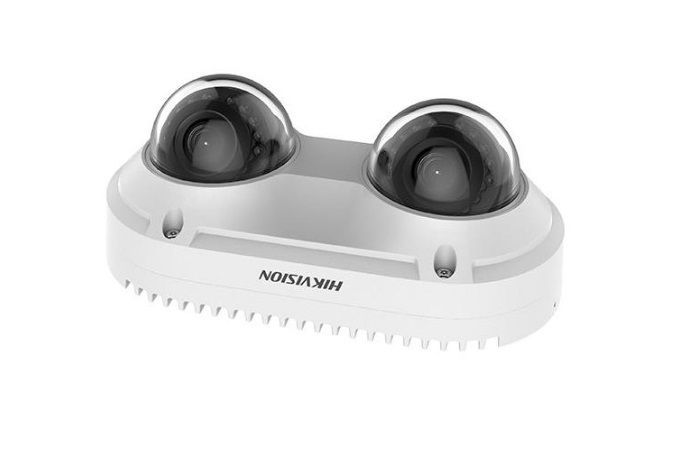

Hikvision DS-2CD6D52G0-IHS-2.8MM 5 Megapixel Outdoor Dual-Directional PanoVu Dome Camera, 2.8mm Lens
- 1/2.7" Progressive Scan CMOS
- Dual Lens
- H.265+, H.265, H.264+, H.264
- 2560 × 1920 @ 30 fps
- 120 dB WDR
5 Megapixel Outdoor Dual-Directional PanoVu Dome Camera
- The Hikvision DS-2CD6D52G0-IHS-2-8mm DualDirectional PanoVu Camera features a dual-lens design to capture two separate wide angle views. Other features include H.265+ video compression, audio I/O, an internal microSD memory card slot (up to 256 GB), and an IR range of up to 33 feet (10 meters).
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
Onvif
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 1/2.7" Progressive Scan CMOS | 2560 x 1920 @ 30 fps |
| Dual Lens | 120 dB WDR |
| Flexible Lens: P: -90° to 90°; T: 0° to 60° (2.8 mm); R: 0° to 355° | Built-in MicroSD/SDHC/SDXC Card Slot, up to 256 GB |
| H.265+, H.265, H.264+, H.264 | IP67, IK10 |
PanoVu Series Network Camera
When designing surveillance applications, more and greater requirements have become necessary for monitoring
large areas such as public plazas, arenas, airports, busy traffic intersections, and the like. In very large settings,
security personnel need to see more with just one camera - not just a panoramic image, but zoomed-in, detailed
views as well.
With that in mind, Hikvision designed the PanoVu Series all-in-one cameras to capture both excellent panorama
and close-up details. Panoramic images are captured with four or eight 2-Megapixel sensors, rendering 180° or 360°
panoramic monitoring with real-time ultra-HD resolution. The integrated design and high-speed pan-tilt-zoom action
grants the user swift positioning over expansive areas with the power to bring sharp details into focus. At the same
time, the PanoVu Series Cameras utilize Hikvision's ultra-low light Darkfighter technology, making colored images
possible in poorly lit environments.
Dual-Directional PanoVu Camera Performance Demo
Check out the functions and benefits of the Hikvision Dual-Directional PanoVu camera (DS-2CD6D52G0-IH(S))
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2CD6D52G0-IHS-2-8mm |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (6.5" × 3.3" × 2.7" (164.3 mm × 84.6 mm × 67.4 mm) |
| Electronic Shutter | 1s to 1/100,000 s |
| Image Device | 1/2.7" progressive scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.009 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on), 0 lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -40° to 140° F (-40° to 60° C) |
| OSD Menu | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, V |
| Power Consumption | 12 VDC, 0.9A, maximum 11 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, maximum 11 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV 97°, Vertical FOV 70°, Diagonal FOV 128° |
| Rotation Angle | 0 to 355° |
| IR Distance | 10m/33ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
