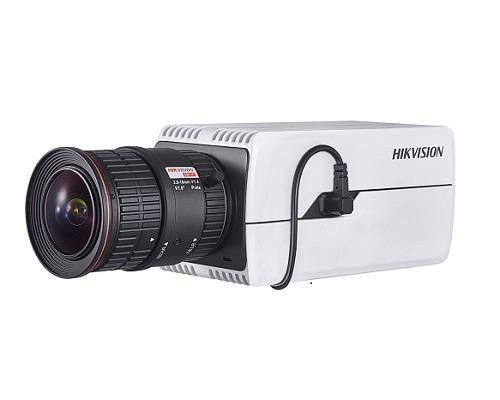

Hikvision DS-2CD5085G0-AP 8 Megapixel Indoor Smart Network Box Camera
SKU
DS-2CD5085G0-AP
Model No
DS-2CD5085G0-AP
$684.60
Product Highlights
- 1/1.8†Progressive Scan CMOS
- Color: 0.007 Lux @ (F1.2, AGC ON)
- 3840 × 2160 @ 30fps
- MJPEG up to 1920 × 1080 @ 30fps
- Color: 0.007 Lux @ (F1.2, AGC ON)
Speak to an expert
8 Megapixel Indoor Smart Network Box Camera
- The DS-2CD5085G0-AP from Hikvision is a 8 megapixel indoor smart network box camera.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
Onvif
Privacy Masking
WDR
Camera Features
| 1/1.8" Progressive Scan CMOS | H.265, H.265+, H.264, H.264+ |
| Color: 0.007 Lux @ (F1.2, AGC ON) | 120dB WDR |
| 3840 x 2160 @ 30fps | Alarm 2 inputs/2 outputs, audio 1 input/1 output, 1 RS485 (half duplex, HIKVISION, Pelco-P, Pelco-D, selfadaptive) |
| MJPEG up to 1920 x 1080 @ 30fps | 5 streams and up to 5 custom streams |
| Color: 0.007 Lux @ (F1.2, AGC ON) | 6 behavior analyses, 3 exception detection, and face detection |
| Auto-iris and P-iris optional | Built-in microSD/SDHC/SDXC card slot, up to 256 GB |
| Auto back focus (ABF) optional | Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, and object removal are supported |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2CD5085G0-AP |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 8 Megapixel |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: 142.6 × 69.8 × 68 mm (5.61ʺ × 2.75ʺ × 2.68ʺ), Package: 315 × 140 × 140 mm (12.4ʺ × 5.51ʺ × 5.51ʺ) |
| Electronic Shutter | 1 s to 1/100,000 s |
| Image Device | 1/1.8ʺ Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.007 Lux @ (F1.2, AGC ON); B/W: 0.0007 Lux @ (F1.2, AGC ON) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | With extra load: 12 VDC, 0.8 A, max. 10 W; 24 VAC, 0.7 A, max. 10 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, max. 10 W, class 3, Without extra load: 12 VDC, 0.65 A, max. 7.6 W; 24 VAC, 0.55 A, max. 7.6 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Digital Noise Reduction | 3D DNR |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
