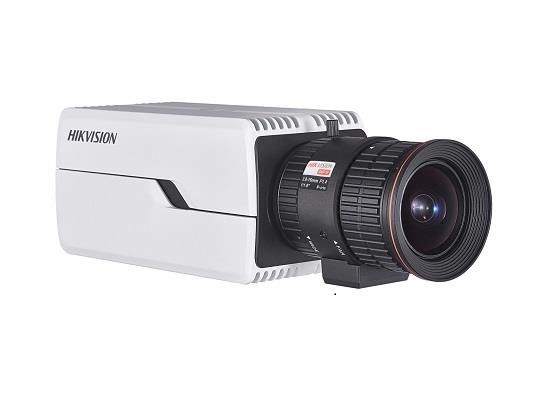

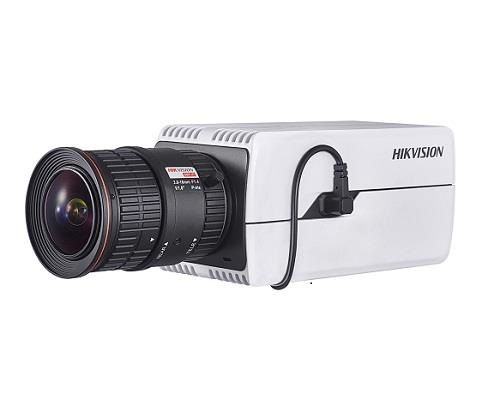

Hikvision DS-2CD5046G0 4 Megapixel Indoor Smart Network Box Camera, No Lens
SKU
DS-2CD5046G0
Model No
DS-2CD5046G0
$344.89
Product Highlights
- 1/1.8" (4 MP) Progressive Scan CMOS
- 2560 x 1440 Resolution @ 30 fps
- CS Lens Mount Options
- Ultra-Low Light, 0.002 Lux (with f/1.2 Lens), Darkfighter Technology
- H.265+, H.265, H.264+, H.264
Speak to an expert
4 Megapixel Indoor Smart Network Box Camera
- The Hikvision DS-2CD5046G0 Indoor Smart Network Box Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage. Darkfighter technology allows for viewing and recording in ultra low-light conditions. With a WDR of 140 dB and Lightfighter technology, it provides superb image quality. The camera can be equipped with up to eight different Hikvision lens options, which are installed on a standard CS mount. Smart features, such as line crossing, intrusion, and scene change detection are also supported.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
Onvif
Privacy Masking
WDR
Camera Features
| 1/1.8" (4 MP) Progressive Scan CMOS | 5 Defined Streams and 5 Custom Streams |
| 2560 x 1440 Resolution @ 30 fps | 140dB WDR, Lightfighter Technology |
| CS Lens Mount Options | 12 VDC Accessory Output |
| Ultra-Low Light, 0.002 Lux (with f/1.2 Lens), Darkfighter Technology | MicroSD Card Slot Supports 256 GB |
| H.265+, H.265, H.264+, H.264 | 12 VDC and PoE (802.3af) |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2CD5046G0 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG, H.264+ |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 5.61" × 2.75" × 2.68" (142.6 mm × 69.8 mm × 68 mm) |
| Electronic Shutter | 1 s to 1/100,000 s |
| Image Device | 1/1.8" (4 MP) progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.002 lux @ (f/1.2, AGC on); B/W: 0.0002 lux @ (f/1.2, AGC on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22° F to 140° F (-30° C to 60° C) |
| Power Consumption | 12 VDC: maximum 7 W; 24 VAC: maximum 7 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Signal System | PAL/NTSC |
| Video Output | One Vp-p composite output (75 Ω/CVBS) |
| Digital Noise Reduction | 3D DNR |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
