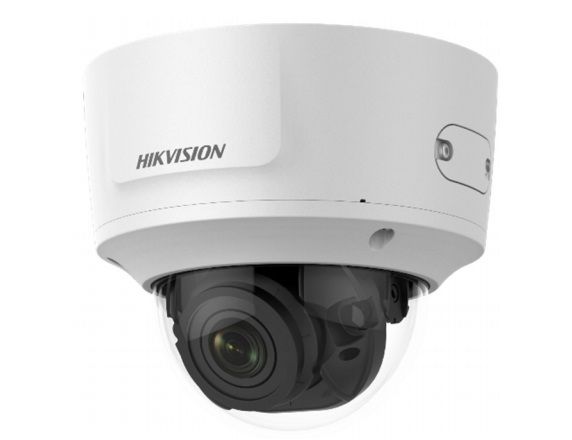

Hikvision DS-2CD2765G0-IZS 6 Megapixel Network IR Dome Camera, 2.8-12mm Lens
SKU
DS-2CD2765G0-IZS
Model No
DS-2CD2765G0-IZS
$318.38
Product Highlights
- 1/2.4" (6 MP) Progressive Scan CMOS
- Up to 3072 x 2048 Resolution @ 20 fps
- Minimum Illumination: Color: 0.011 lux @ (f/1.4, AGC on), 0 lux with IR
- Dark fighter Technology
- Up to 100 ft (30 m) EXIR 2.0 Range
Speak to an expert
6 Megapixel Network IR Dome Camera
- The DS-2CD2765G0-IZS from Hikvision is a 6 Megapixel Network IR Dome Camera with 2.8-12mm Lens. The Hikvision DS-2CD2765G0-IZS Outdoor IR Varifocal Dome Camera provides high definition network output. It supports H.265+video compression, which assures savings in bandwidth and storage. The camera is equipped with a 2.8 to 12 mmmotorized varifocal lens, and offers an EXIR 2.0 range of up to 100 ft (30 m). Smart features, such as line crossing,intrusion, unattended luggage, and scene change detection are supported.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
Onvif
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 1/2.4" (6 MP) Progressive Scan CMOS | H.265+, H.265, H.264+, H.264 |
| Up to 3072 x 2048 Resolution @ 20 fps | 120dB True WDR |
| Minimum Illumination: Color: 0.011 lux @ (f/1.4, AGC on), 0 lux with IR | MicroSD Card Slot Supports 128 GB |
| Dark fighter Technology | IP67, IK10 Protection |
| Up to 100 ft (30 m) EXIR 2.0 Range | 12 VDC and PoE (802.3af) |
| 2.8 to 12 mm Motorized Varifocal Lens |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2CD2765G0-IZS |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 6 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ 6.0" x 5.2" (Φ 153.4 mm x 133.1 mm) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/2.4" Progressive Scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.011 lux @ (f/1.4, AGC on), 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22° F to 140° F (-30° C to 60° C) |
| Power Consumption | 12 VDC, 0.9 A, maximum 10.5 W; PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, maximum 12.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Video Output | 1 Vp-p Composite Output(75Ω/BNC) |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV: 104° to 29°, vertical FOV: 55° to 17°, diagonal FOV: 125° to 34° |
| Rotation Angle | 0° to 355° |
| IR Distance | 30m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
