Hikvision DS-2CD2685G1-IZS 8 Megapixel 4K Network IR Outdoor Bullet Camera, 2.8-12mm Lens
SKU
DS-2CD2685G1-IZS
Model No
DS-2CD2685G1-IZS
$476.44
Product Highlights
- 2.8 mm to 12 mm Motorized Varifocal Lens
- Powered by DarkFighter
- H.265+, H.265, H.264+, H.264
- 120 dB WDR
- IP67, IK10
Speak to an expert
The Hikvision DS-2CD2685G1-IZS IR Varifocal Outdoor Network Bullet Camera features high-performance imaging capabilities with its 8 Megapixel resolution, a versatile 2.8-12mm motorized varifocal lens, and robust low-light performance powered by DarkFighter technology. It delivers remarkable video quality even in challenging lighting conditions, enhanced with 120 dB true Wide Dynamic Range (WDR), making it ideal for a variety of surveillance applications.
Hikvision DS-2CD2685G1-IZS Camera Features
- 2.8 mm to 12 mm Motorized Varifocal Lens: Offers adjustable focal lengths for capturing clear images at varying distances, enhancing the surveillance coverage.
- Powered by DarkFighter: Achieves exceptional low-light performance, ensuring detailed images even in near darkness.
- H.265+, H.265, H.264+, H.264 Compression: Supports advanced video compression technologies that provide high-quality imaging while optimizing storage space and bandwidth.
- 120 dB WDR: Minimizes overexposure and underexposure, providing clear images in various lighting conditions.
- IP67, IK10 Rated: Offers durability against water and dust (IP67) and protection against vandalism (IK10), suitable for outdoor installation.
- IR Range: Up to 164 ft (50 m): Enables night-time surveillance, ensuring effective monitoring in complete darkness.
- BLC/3D DNR/ROI/HLC: Advanced imaging features that enhance image clarity and quality by reducing noise and optimizing regions of interest.
- Smart Encoding: Low Bit Rate, Low Latency: Ensures efficient video streaming with reduced latency, perfect for real-time monitoring.
Detailed Camera Specifications for Hikvision DS-2CD2685G1-IZS
| Model | DS-2CD2685G1-IZS |
| Resolution | 8 Megapixel (4K) |
| Lens | 2.8 mm to 12 mm Motorized Varifocal |
| WDR | 120 dB True Wide Dynamic Range |
| IR Range | Up to 164 ft (50 m) |
| Housing Rating | IP67, IK10 |
| Compression Formats | H.265+, H.265, H.264+, H.264 |
| Smart Features | BLC, 3D DNR, ROI, HLC |
| Low Light Technology | DarkFighter |
| Application | Outdoor Surveillance |
SKU  | DS-2CD2685G1-IZS |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Heater & Fan, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø4.1"× 11.7" (Ø105 mm × 297.5 mm) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/2" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.011 lux @ (ƒ/1.4, AGC on), 0 lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22° to +140° F (-30° to +60° C) |
| OSD Menu | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, V |
| Power Consumption | 12 VDC, 1.2 A, maximum 14.5 W |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,UDP, Bonjour, SSL/TLS |
| Video Output | 1Vp-p composite output (75 ?) (for adjustment only) |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal: 112° to 46°, Vertical: 60° to 26°, Diagonal: 133° to 53° |
| Rotation Angle | 0° to 360° |
| IR Distance | 50m/164ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
DS-2CD2685G1-IZS-Specsheet DS-2CD2685G1-IZS-Quick-Start-Guide DS-2CD2685G1-IZS-User-ManualTools & Calculators
Lens Field of View Calculator
Tools & CalculatorsProduct Accessories
Customers Who Viewed This Item Also Viewed

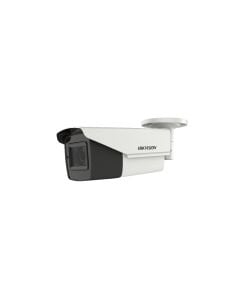

Hikvision DS-2CE19U7T-AIT3ZF 8 Megapixel 4K Ultra Low Light Motorized Varifocal Bullet Camera with 2.7-13.5mm Lens
