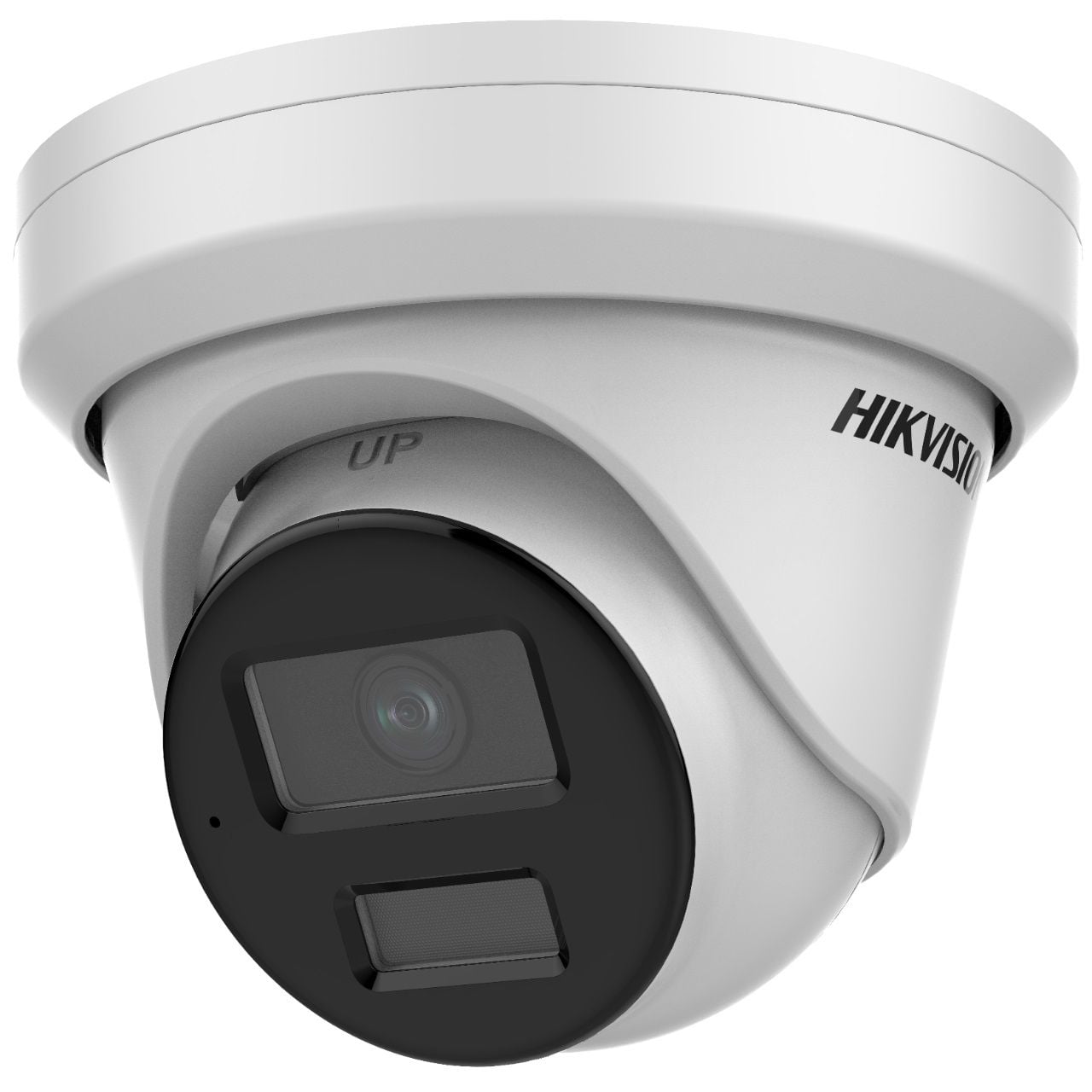

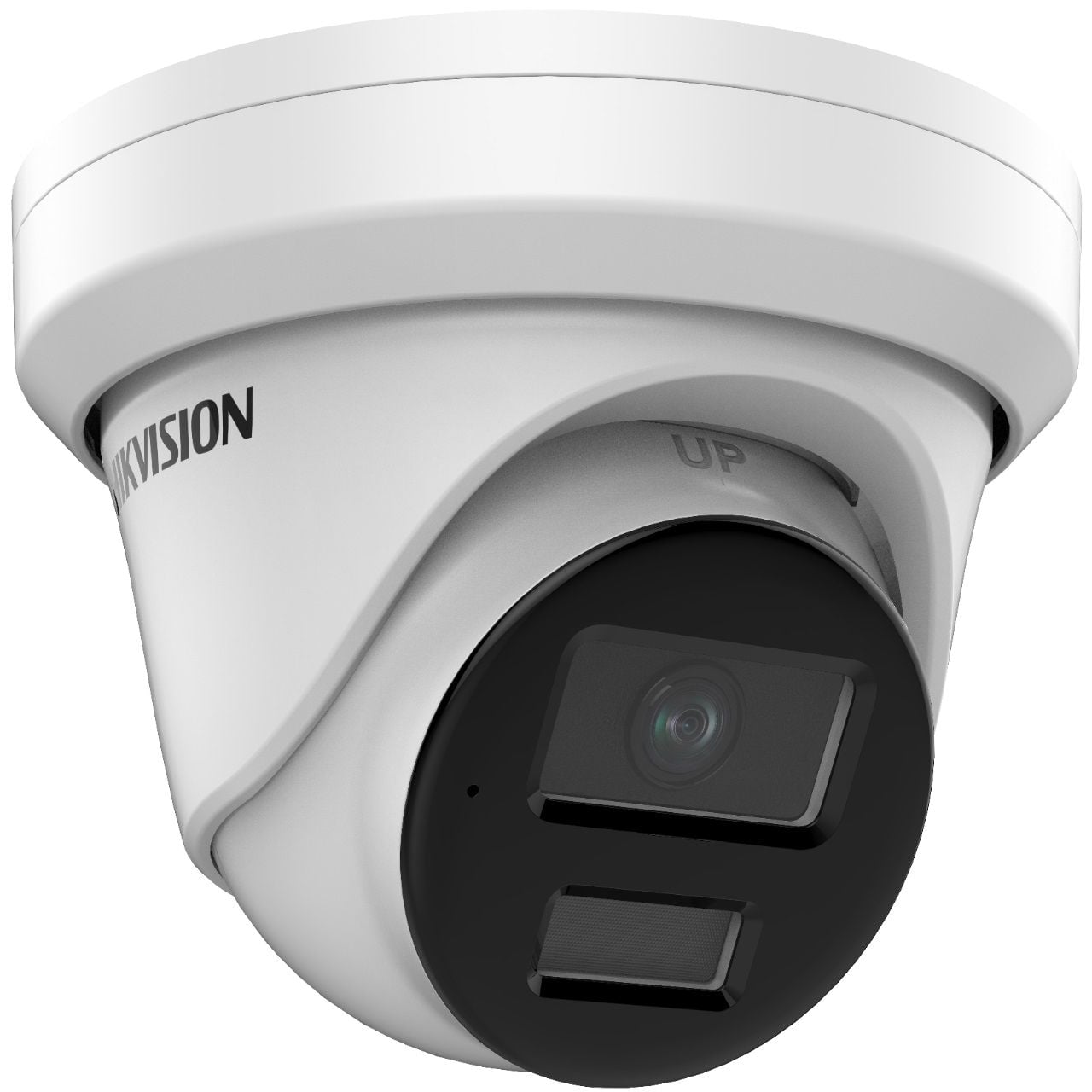

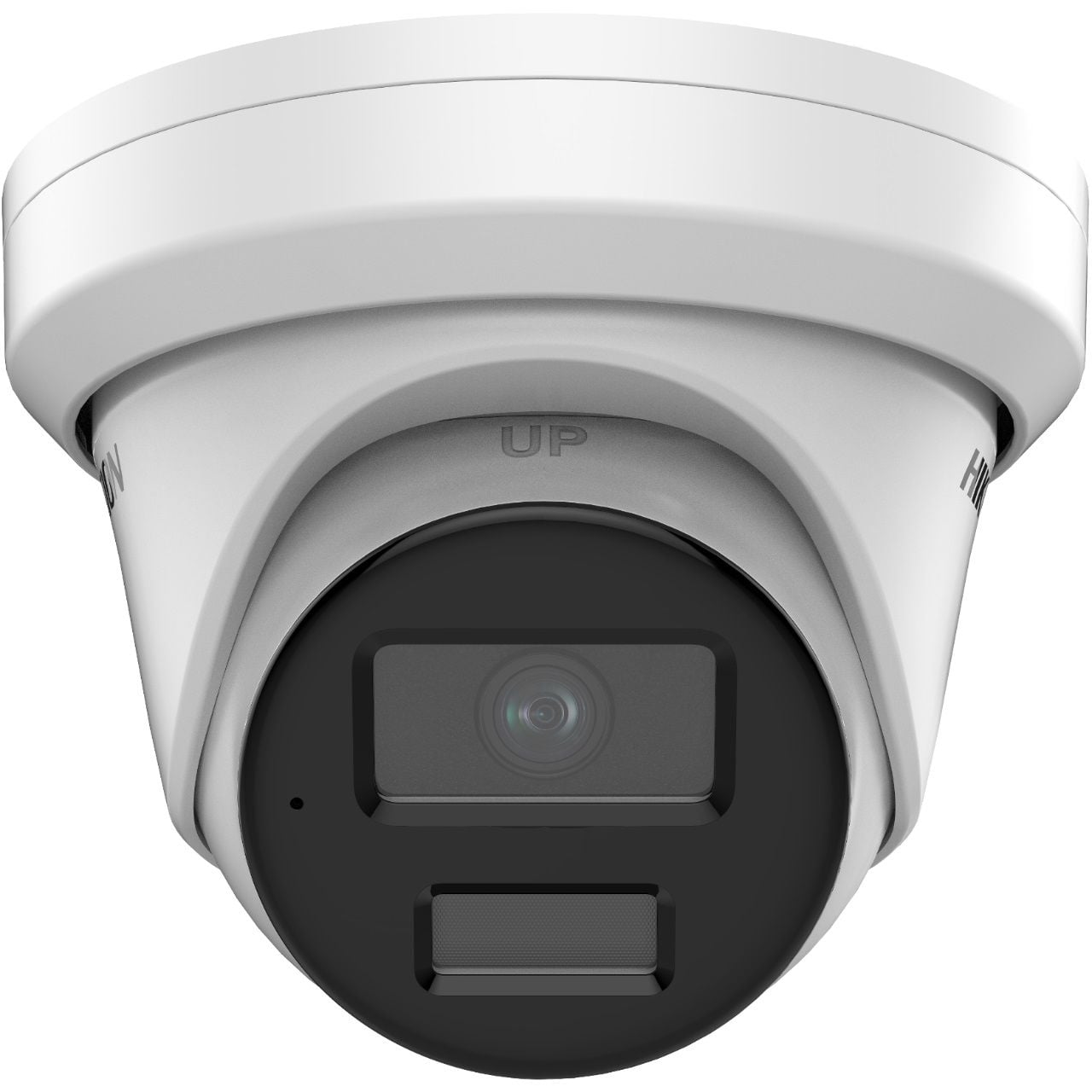

Hikvision DS-2CD2323G2-IU-2.8MM 2 Megapixel AcuSense Fixed Turret Network Camera with 2.8mm Lens
SKU
DS-2CD2323G2-IU-2-8mm
Model No
DS-2CD2323G2-IU-2.8MM
$132.54
Product Highlights
- High quality imaging with 2 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- -U: Built-in microphone for real-time audio security
- Focus on human and vehicle targets classification based on deep learning
Speak to an expert
2 Megapixel AcuSense Fixed Turret Network Camera
- Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
Onvif
Weather Resistant
WDR
Camera Features
| High quality imaging with 2 MP resolution | Built-in microphone for real-time Audio security |
| Clear imaging against strong backlight due to 120 dB WDR technology | Focus on human and vehicle targets classification based on deep learning |
| Efficient H.265+ compression technology | Water and dust resistant (IP67) |
Hikvision AcuSense Camera
With deep learning algorithm, Hikvision AcuSense Cameras kick VCA accuracy and efficiency up a notch.
AcuSense Products for Residences
Watch this video to see how AcuSense products ensure home security with intrusion detection and deterrence.
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2CD2323G2-IU-2-8mm |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø127.3 mm × 96.3 mm (Ø5 × 3.8\")""" |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/2.8" Progressive Scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| S/N Ratio | = 52 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127° |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
DS-2CD2323G2-IU-2-8mm-Specsheet DS-2CD2323G2-IU-2-8mm-User-Manual DS-2CD2323G2-IU-2-8mm-Quick-Start-GuideTools & Calculators
Lens Field of View Calculator
