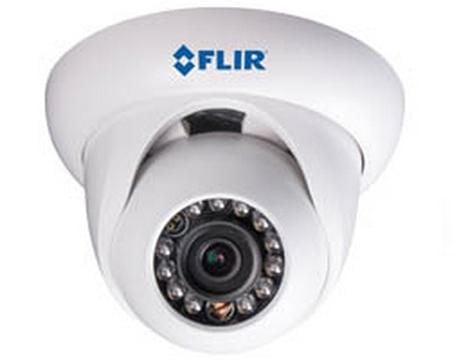

Digimerge DNE12TL2 2.1Mp Full HD Outdoor D/N Network Dome Camera
- 2.1 MP HD, 1/3" CMOS Progressive Scan
- 1080p picture quality at real time (30 fps)
- ONVIF 2.1 compliant (backwards compatible)
- Compatible with popular third party VMS software
- Dual-streaming (H.264/MJPEG)
The 2.1 MP IR Dome IP Camera packs impressive performance into a compact and economical form factor. DNE12TL2 provides stunning video quality that rivals your home entertainment system with 2.1MP HD resolution (real-time 1080p) plus a wide angle 3.6mm lens, True Day/Night with ICR, 62ft IR night vision, PoE operation, and dual-streaming. Future-proof Onvif 2.1 compliance enables compatibility with industry leading VMS solutions. A 64 channel CMS software is included and advanced mobile apps for iPhone, Android & iPad are available at no charge. The IP66 rated weatherproof housing utilizes a 3-Axis bracket for versatile wall/ceiling mounting options. The combination of outstanding video quality and ease-of-use makes DNE12TL2 an obvious choice for a wide variety of applications.
Features
- 2.1 MP HD, 1/3" CMOS Progressive Scan
- 1080p picture quality at real time (30 fps)
- ONVIF 2.1 compliant (backwards compatible)
- Compatible with popular third party VMS software
- Dual-streaming (H.264/MJPEG)
- 64 channel CMS by FLIR included
- Power-over-Ethernet (PoE), 14Watt max/12V operation
- Mobile Apps – iPhone, iPad, Android
- IP66 weatherproof rating
- 3.6mm wide angle lens
- 62 ft (19 m) IR Night Vision/TDN
- 3-Axis design for Wall/Ceiling mounting
- Free DDNS service by FLIR
- Multi-browser support: IE, Firefox, Safari, Chrome
- Advanced Digital Noise Reduction
SKU  | DNE12TL2 |
|---|---|
| Features | Auto Gain Control, Day/Night, Digital Noise Reduction, ONVIF, Privacy Masking, Weather Resistant |
| Manufacturer | Digimerge |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2.1 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto/Manual |
| Dimensions (W x H) | 5.4 × 5.4 × 4.5” |
| Electronic Shutter | Auto/Manual, 1/4~1/10000s |
| Image Device | 1/3" CMOS Progressive Scan |
| IR LEDs | 12 LEDs |
| Minimum Scene Illumination | Color: 0.1 [email protected]/0 Lux IR LED On |
| Operating Humidity | 10% - 85% RH |
| Operating Temperature | 14°F to 122°F/-20°C to 60°C |
| Power Consumption | <5W |
| S/N Ratio | >50dB |
| Video Output | RJ45 |
| Digital Noise Reduction | 2D |
| Back Light Compensation | BLC / HLC / DWDR |
| Automatic White Balance | Auto |
| IR Distance | 62 feet/19 Meters |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
