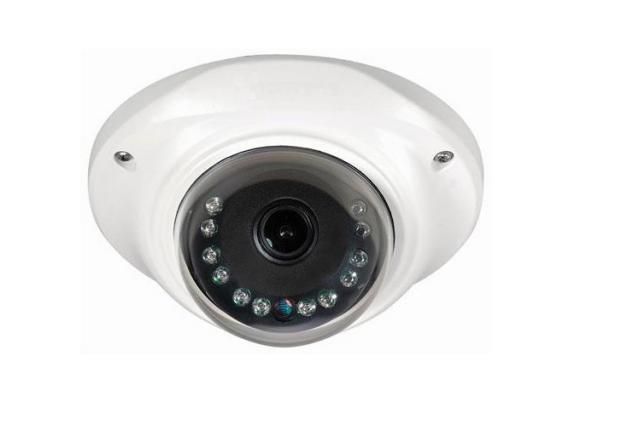

Dedicated Micros ICE2-MW-720-3M6-I Ice2 720 HD Analogue Mini Wedge Camera, 10m IR
SKU
ICE2-MW-720-3M6-I
Model No
ICE2-MW-720-3M6-I
$235.60
Product Highlights
- 1.3 Megapixel Sony IMX225 Sensor
- Up-the-coax control of camera menus
- Utilise Existing Legacy Cabling
- 3.6mm Fixed Lens
- Up The Coax On Screen Menu Control
Speak to an expert
The ICE2-MW-720-3M6-I from Dedicated Micros is a high performance HD analog video surveillance camera. This mini wedge dome camera features a Sony IMX225, D-WDR enabled sensor and a 3.6mm fixed lens with 10m IR, delivering either standard definition or HD 720p video. Simple to install and capable of using existing analog cabling, the Ice2 cameras allow for an efficient upgrade to high definition video recording without the complexity and cost of traditional IP solutions.
Dedicated Micros ICE2-MW-720-3M6-I Camera Features
- 1.3 Megapixel Sony IMX225 Sensor: Provides sharp and clear video quality for enhanced surveillance.
- Up-the-coax control of camera menus: Simplifies configuration and adjustments from the DVR/NVR without additional wiring.
- Utilise Existing Legacy Cabling: Allows seamless upgrades from standard definition to HD without replacing infrastructure.
- 3.6mm Fixed Lens: Offers a wide field of view ideal for monitoring large areas.
- IP65 rated: Ensures camera is protected against dust and water, suitable for outdoor use.
- Live Tracking Due To Speed Of Transmission: Enables real-time monitoring and response with minimal delay.
- MultiMode – Save Up To 50% On Recording: Reduces storage costs by optimizing video recording settings.
- TransCode – Optimised Remote Playback: Facilitates efficient remote access to recorded footage without extensive bandwidth use.
- 720p HD Video Over Coax: Delivers high definition video quality through standard coaxial cables.
- Up To 500m Coax Cable Length: Extends range of installation without compromising video quality.
- 10M IR Distance: Ensures visibility in low light conditions, enhancing nighttime surveillance.
- Next To Zero Latency On Local System: Guarantees instantaneous video transmission for critical monitoring tasks.
- D-WDR: Dynamic Wide Range Technology enhances visibility in challenging lighting conditions.
- Alarm Handling (With SD Advanced DVR/NVR): Integrates seamlessly with alarm systems for improved security management.
- Auto Gain Control: Automatically adjusts brightness levels for optimal video clarity.
Detailed Camera Specifications for ICE2-MW-720-3M6-I
| Sensor Type | Sony IMX225 (1.3 Megapixel) |
| Resolution | HD 720p / Standard Definition |
| Lens | 3.6mm Fixed Lens |
| IR Distance | 10 meters |
| Coax Cable Length | Up to 500 meters |
| IP Rating | IP65 |
| Weight | Lightweight for easy installation |
| Latency | Next to zero on local system |
| Special Features | D-WDR, Auto Gain Control, Alarm Handling |
SKU  | ICE2-MW-720-3M6-I |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Dedicated Micros |
Camera Signal  | HD-AHD |
| Resolution | 720p |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | PAL:1/25 ~ 1/50,000sec; NTSC:1/30 ~ 1/50,000sec ; Auto / FLK / ManualMax X 30 |
| Gamma Correction | 0.45 |
| Image Device | 1/3” Sony IMX225 1.3MP |
| IR Distance | 10m/32ft |
| Minimum Scene Illumination | Colour: 0.001 Lux / F2.0: B/W: 0 Lux / F2.0 (IR on) |
| Operating Temperature | -10C~ +50C RH95% Max |
| OSD Menu | ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR |
| Privacy Zone | 4 Zones |
| S/N Ratio | ≥ 48 dB |
| Scanning System | 2:1 Interlace |
| Signal System | PAL / NTSC |
| Video Output | High Definition Analogue 720p / CVBS 700TVL |
| Weatherproof | IP65 |
| Synchronization | Internal |
| Digital Noise Reduction | 2D / 3D-Low/Middle/High |
| Backlight Compensation | Off / BLC / HSBLC |
| Automatic White Balance | AWB / AWC→SET / Indoor Mode / Outdoor Mode / Manual Mode |
| Auto Gain Control | 0-15 |
| Motion Detection | 4 Zones / Alarm |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
