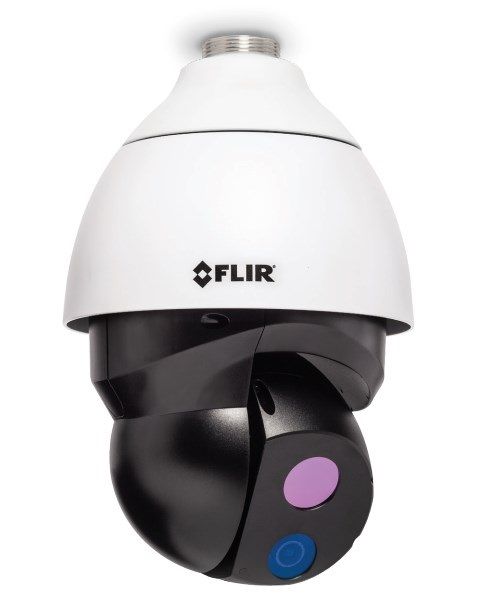

Flir DM-392 Multispectral IP PTZ Thermal Camera, 2.3mm Lens

SKU
DM-392
Model No
DM-392
$8,128.72
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Delivers market-leading images in tough conditions, including darkness, glaring light, and through obscurants
  • Onboard 4K visible light camera with e-zoom and low light capability
  • Available 640 × 512 and 320 × 256 thermal resolutions
  • End-to-end encryption for setup, web, and video streams
  • Eliminates the need for port-forwarding

The FLIR Saros DM-392 Multispectral IP PTZ Thermal Camera is an advanced surveillance solution designed to enhance security in diverse environments. With industry-leading thermal imaging capabilities and a built-in 4K visible light camera, this camera excels at capturing detailed video in challenging conditions, including complete darkness and bright sunlight. Its seamless integration with video management systems, along with multiple lens options and robust cybersecurity features, ensures superior performance and control for users.

Features

FLIR Saros DM-392 Camera Features

  • Industry-Leading Thermal: Delivers market-leading images in tough conditions, including darkness, glaring light, and through obscurants.
  • 4K Visible Light Camera: Onboard 4K visible light camera with e-zoom and low light capability enhances detail capture in low visibility.
  • Multiple Thermal Resolutions: Available in 640 - 512 and 320 - 256 thermal resolutions for flexibility based on surveillance needs.
  • Multiple Lens Options: Choose from eight high-performance lenses, ranging from 95° - 72° to 12° - 9° FOV for optimal detection.
  • Athermalized Lenses: Focus-free design ensures simplicity and efficiency in setup and operation.
  • Cybersecurity Focus: End-to-end encryption for setup, web, and video streams protects against unauthorized access.
  • No Port-Forwarding Required: Enhances security and accessibility with configuration lockdown after initial setup for tamper prevention.

Detailed Specifications for FLIR Saros DM-392

ModelFLIR Saros DM-392
Resolution640 - 512 or 320 - 256 thermal
Lens OptionsEight lenses, 95° - 72° to 12° - 9° FOV
Visible Light Camera4K with e-zoom capabilities
EncryptionEnd-to-end for web and video streams
Field of ViewVaries with lens selection
SetupConfiguration lockdown after initial setup
SKU  DM-392
Features  Audio, Auto Gain Control, ONVIF, Weather Resistant
Manufacturer  Flir
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    320 X 256
Lens Type    Fixed
Lens Size    2.3mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  Diameter: 207mm (8.15 in) Height: 300mm (11.8 in)
Image Device    Long-Life, Uncooled VOx Microbolometer
Operating Humidity    10 – 90%
Operating Temperature    -40°C – 55°C
Power Consumption  12VDC, 2.5A, 30W, 24VAC, 2.36A, 57VA, 55VDC (PoE), 0.62A, 34W
Protocols  IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Weatherproof    IP66
Angle of View    92° × 69°
AudioYes
Auto Gain Control    Yes
ONVIF  Yes
