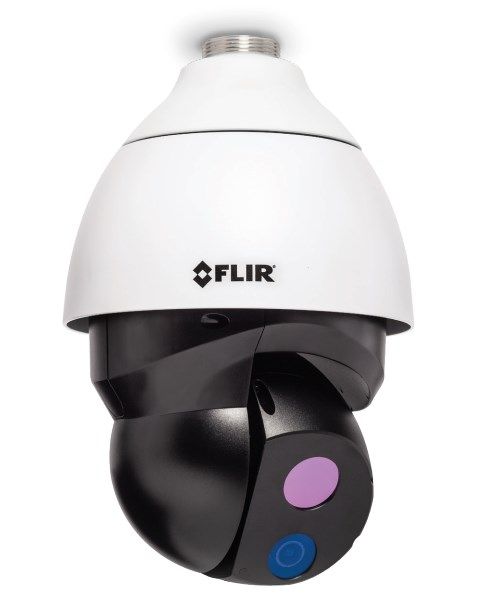

Flir DM-312 Multispectral IP PTZ Thermal Camera, 18mm Lens

SKU
DM-312
Model No
DM-312
$7,317.62
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Delivers market-leading images in tough conditions, including darkness, glaring light, and through obscurants
  • Onboard 4K visible light camera with e-zoom and low light capability
  • Available 640 × 512 and 320 × 256 thermal resolutions
  • End-to-end encryption for setup, web, and video streams
  • Eliminates the need for port-forwarding

The FLIR DM-312 Multispectral IP PTZ Thermal Camera is an advanced surveillance solution that seamlessly integrates thermal and high-definition visible light imaging. With its superior image capture capabilities in extreme conditions, it is ideal for comprehensive perimeter protection. The camera boasts enhanced cybersecurity features and offers a variety of lens options, making it a versatile choice for various monitoring applications.

Features

FLIR DM-312 Camera Features

  • Industry-Leading Thermal: Delivers market-leading images in tough conditions, including darkness, glaring light, and through obscurants.
  • Integrated 4K Camera: Onboard 4K visible light camera with e-zoom and low light capability enhances detail capture in dim environments.
  • Multiple Thermal Resolutions: Available in 640 - 512 and 320 - 256 thermal resolutions for customizable video quality.
  • Wide Range of Lenses: Choose from eight high-performance lenses, ranging from 95° - 72° to 12° - 9° FOV to meet specific surveillance needs.
  • Focus-Free Lenses: Athermalized, focus-free lenses ensure optimal performance without the need for manual adjustments.
  • Robust Cybersecurity: End-to-end encryption for setup, web, and video streams to safeguard against security threats.
  • Port-Forwarding Elimination: Eliminates the need for port-forwarding, simplifying installation and enhancing security.
  • Tamper Prevention: Configuration lockdown after initial setup to increase tamper prevention.

Detailed Specifications for FLIR DM-312

FeatureDetails
Thermal Resolution640 - 512 or 320 - 256
Visible Light Camera4K with e-zoom
Field of View Options95° - 72° to 12° - 9° FOV
Lens TypeAthermalized and focus-free
Cybersecurity ProtocolsEnd-to-end encryption, port-forwarding elimination
Integration CompatibilityFLIR United Video Management System (UVMS) and ONVIF-compliant systems
SKU  DM-312
Features  Audio, Auto Gain Control, ONVIF, Weather Resistant
Manufacturer  Flir
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    320 X 256
Lens Type    Fixed
Lens Size    18mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  Diameter: 207mm (8.15 in) Height: 300mm (11.8 in)
Image Device    Long-Life, Uncooled VOx Microbolometer
Operating Humidity    10 – 90%
Operating Temperature    -40°C – 55°C
Power Consumption  12VDC, 2.5A, 30W, 24VAC, 2.36A, 57VA, 55VDC (PoE), 0.62A, 34W
Protocols  IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Weatherproof    IP66
Angle of View    12° × 9°
AudioYes
Auto Gain Control    Yes
ONVIF  Yes
