Dahua DH-IPC-PDBW5831N-B360 Multi-flex™ 4x2 Megapixel Network Camera

SKU
DH-IPC-PDBW5831N-B360
Model No
DH-IPC-PDBW5831N-B360
$1,130.20
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Four (4) Independent 1/2.8-in 2MP STARVIS™CMOS Sensors
  • Flexible Multi-directional IR Dome with four (4) 2.7 mm to 12 mm Motorized Zoom Lenses
  • Dual-strem Encoding per Channel
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 2MP at 25 fps Maximum Resolution per Sensor

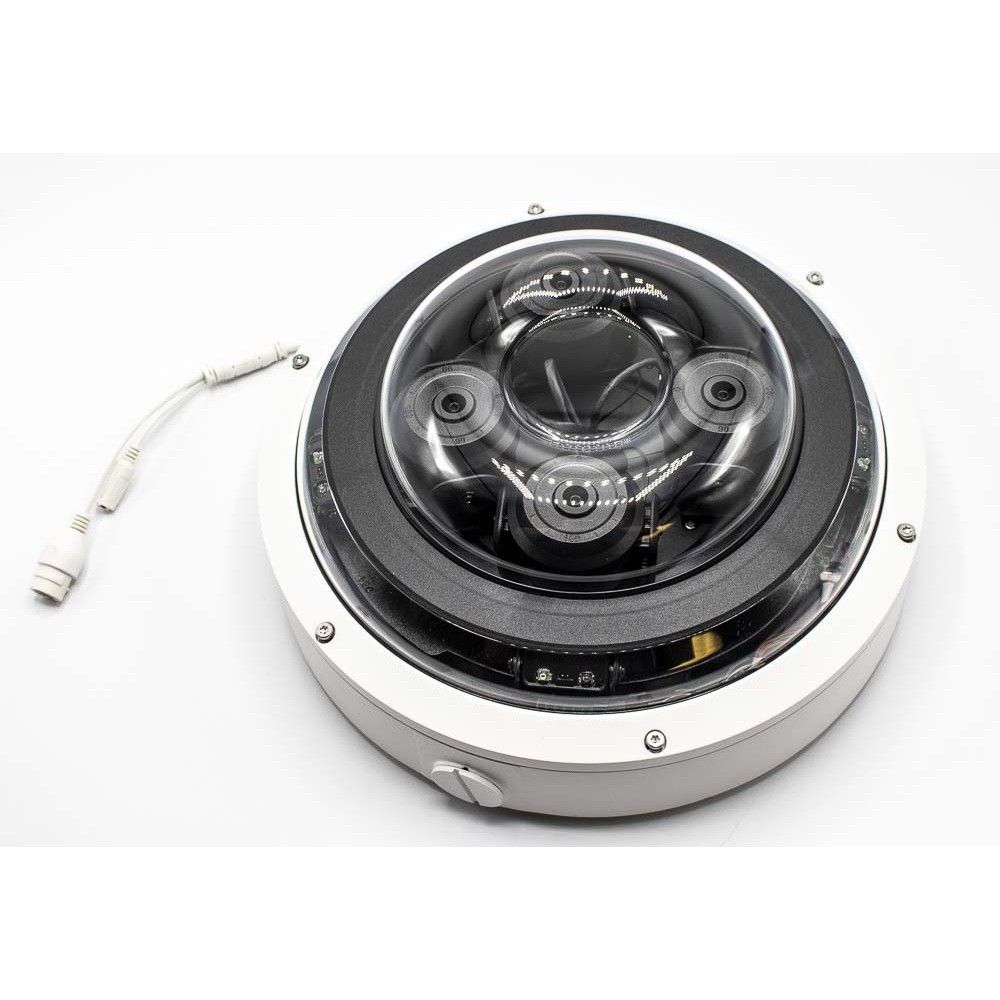

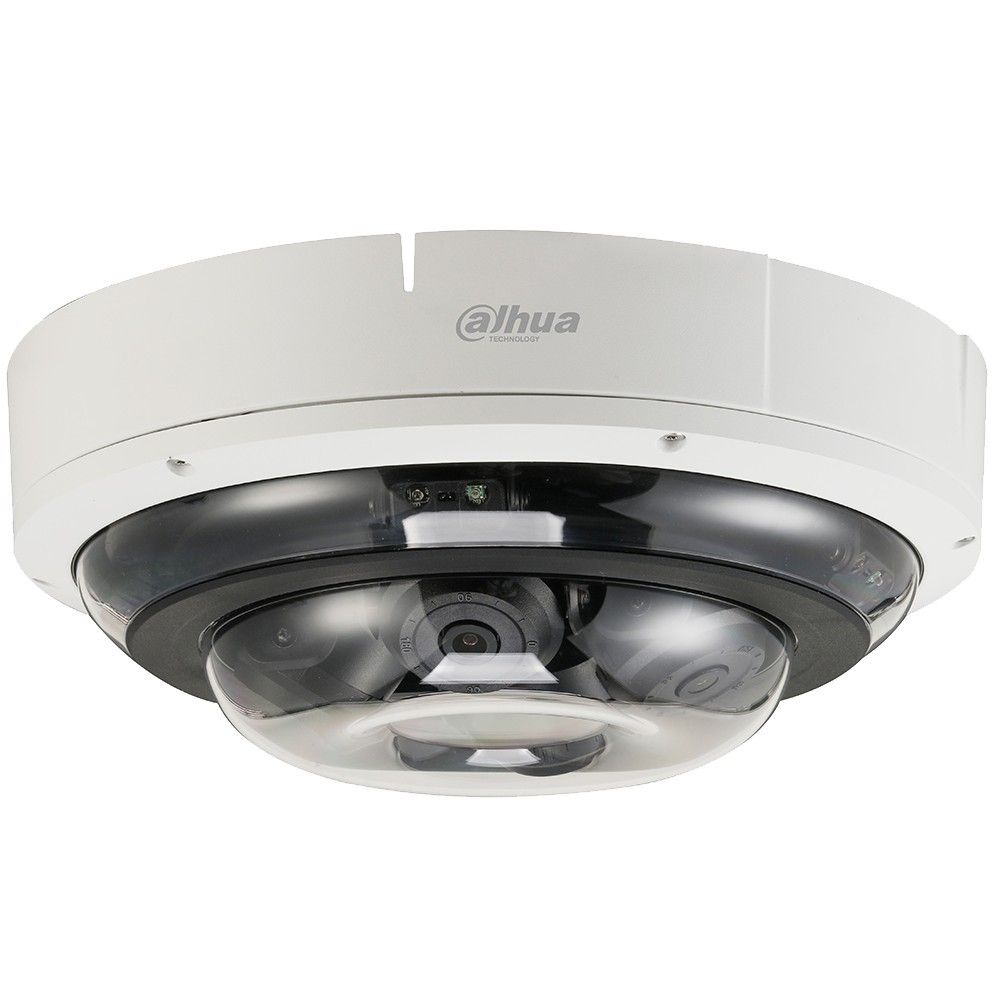

The Dahua DH-IPC-PDBW5831N-B360 Multi-sensor Dome Camera features four (4) 1/2.8-in. 2MP Progressive-scan STARVIS™ CMOS Sensors each with a 2.7 to 12 mm motorized lens. Each sensor can be positioned and configured independently of the others allowing flexible, multi-directional video security that replaces multiple single-sensor cameras and is ideal for monitoring large areas. The camera offers Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.

Features

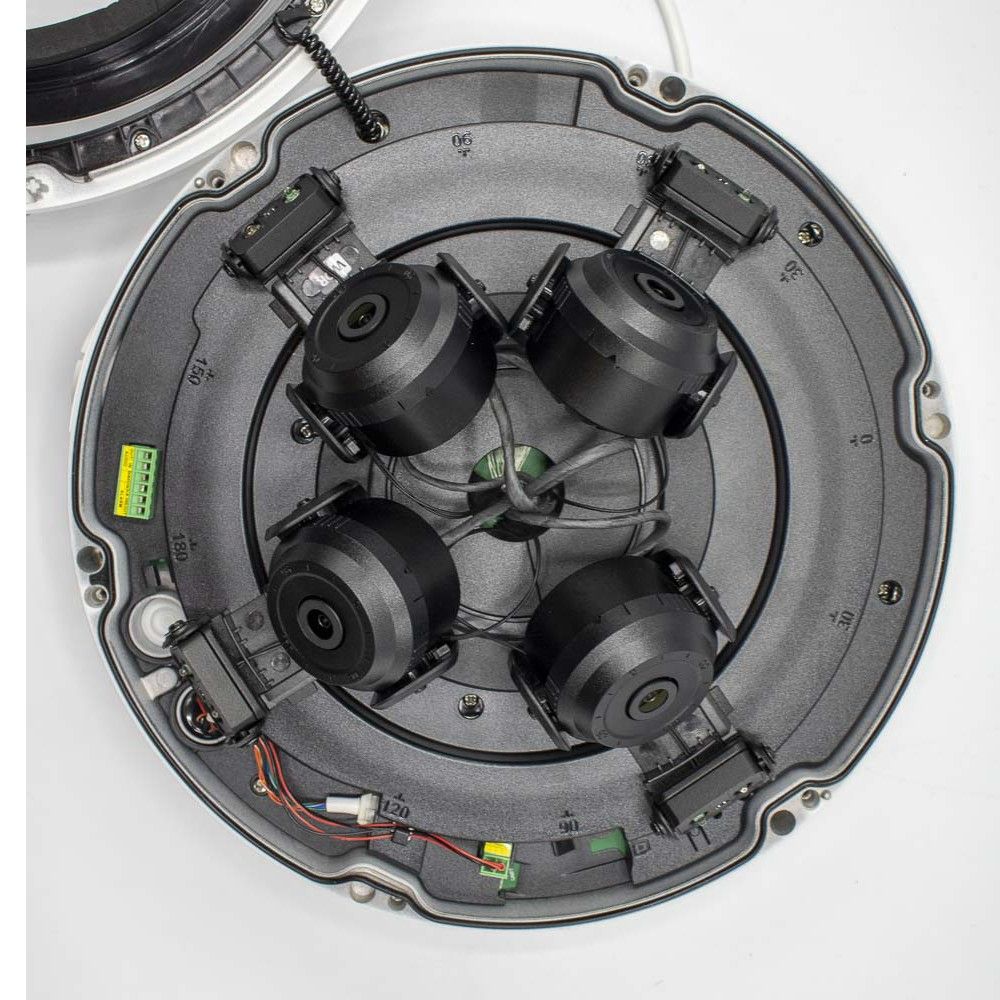

  • Four (4) Independent 1/2.8-in 2MP STARVIS™ CMOS Sensors: Offers flexible, multi-directional video coverage, reducing the need for multiple cameras.
  • Flexible Multi-directional IR Dome with four (4) 2.7 mm to 12 mm Motorized Zoom Lenses: Allows tailored viewing angles to capture a wide area of surveillance.
  • Dual-stream Encoding per Channel: Facilitates efficient bandwidth management with simultaneous streaming.
  • Smart H.265+ and Smart H.264+ Dual Codec: Provides high-quality video while optimizing storage resources.
  • 2MP at 25 fps Maximum Resolution per Sensor: Delivers clear and sharp images for accurate identification.
  • Starlight Technology for Low Light Sensitivity: Ensures high-performance image capture even in low-light conditions.
  • Ultra Wide Dynamic Range (Channel 1) and True Day/Night (ICR): Enhances image quality in varying lighting conditions.
  • Intelligent Video System: Incorporates advanced analytics for smarter surveillance solutions.
  • Maximum IR LED Distance 30 m (98 ft): Provides effective night vision capabilities for extended surveillance range.
  • IP67 Ingress Protection and IK10 Vandal Resistance: Ensures durability and reliability in tough environments.
  • 5-year Warranty (for products sold through an authorized Dahua dealer): Offers peace of mind with long-term coverage.

Dahua DH-IPC-PDBW5831N-B360 Camera Specifications

Sensor Type1/2.8-in. STARVIS™ CMOS
Resolution2MP
Lens2.7 mm to 12 mm Motorized Lens
Video CompressionSmart H.265+, Smart H.264+
Frame RateMaximum 25 fps per sensor
IR Distance30 m (98 ft)
Ingress ProtectionIP67
Vandal ResistanceIK10
Operating Temperature-40 °C to +60 °C
Warranty5 years (authorized dealer)
SKU  DH-IPC-PDBW5831N-B360
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Dahua
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264B, M-JPEG, H.265, H.264+, H.265+
Voltage  24vAC, PoE
Automatic Gain Control (AGC)    Auto, Manual, Gain Priority, Shutter Priority
Dimensions (W x H)  ø286.10 mm x 111.30 mm (ø11.26 in. x 4.38 in.)
Electronic Shutter    Auto, Manual, 1/3 s to 1/100000 s
Image Device    Four (4) 1/2.8-in. 2MP STARVIS™ CMOS
Image Pixels-Effective1920(H) x 1080(V), per sensor
Minimum Scene Illumination  Color: 0.005 lux at F1.8 (1/3 s, 30 IRE), Color: 0.06 lux at F1.8 (1/30 s, 30 IRE) 0 lux at F1.8 (IR on)
Operating Humidity    Less than 95% RH
Operating Temperature    –30° C to +60° C (–22° F to +140° F)
Privacy Zone    Off, On (4 Area, Rectangle)
Protocols  HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP
S/N Ratio  More than 50 dB
Scanning System    Progressive
Digital Noise Reduction    3D DNR
Angle of View    Horizontal: 105° to 44°, Vertical: 54° to 25°
Back Light Compensation  BLC, HLC, Ultra WDR (140 dB, channel 1 only), DWDR (channels 2, 3, and 4
Automatic White Balance    Auto, Manual, Natural, Street Lamp, Outdoor,Regional Custom
IR Distance  30m/98ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
