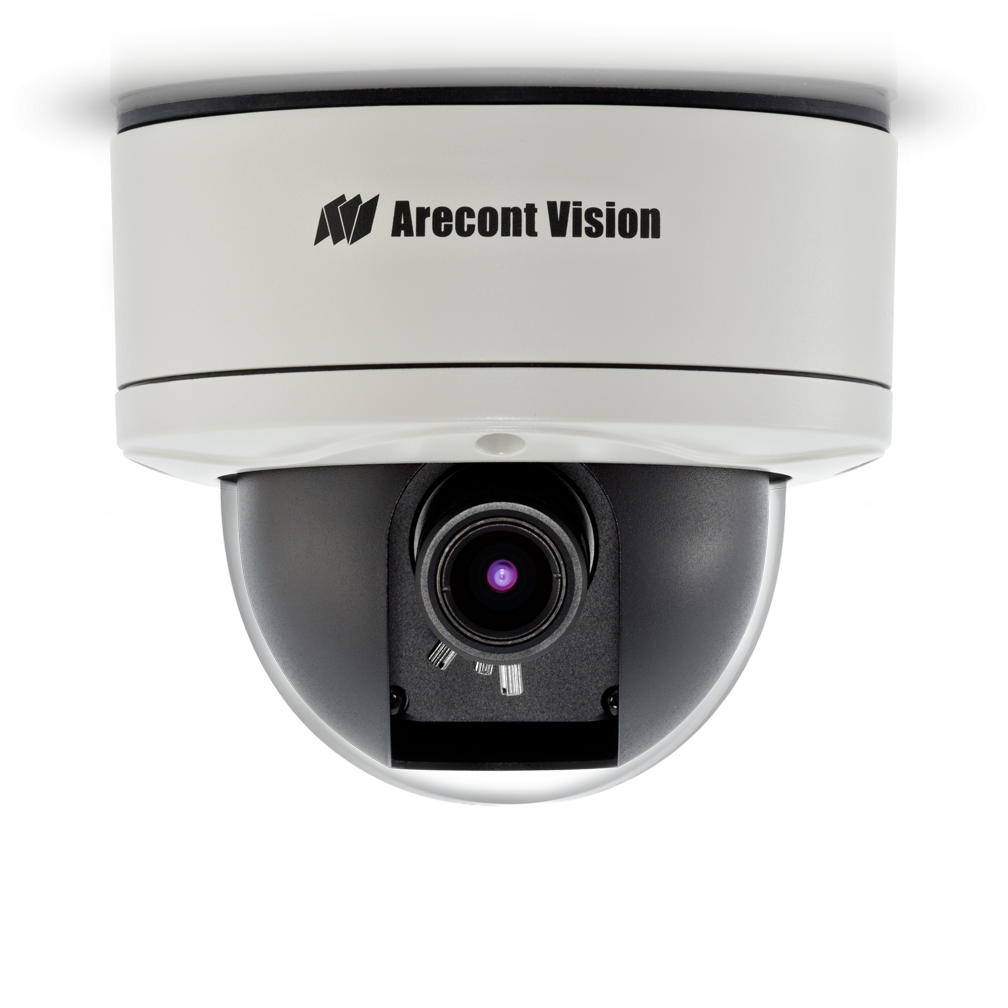

Arecont Vision D4SO-AV3115DNv1-3312 Surface Mount Outdoor Dome Camera
SKU
D4SO-AV3115DNv1-3312
Model No
D4SO-AV3115DNv1-3312
$649.75
Product Highlights
- Dual Encoder H.264 (MPEG Part 10) and MJPEG
- Fastest MegaPixel Image Rates at 21 fps
- PSIA Compliance
- Multi-Streaming, Flexible Cropping and Bit Rate Control
- Privacy Mask, Extended Motion Detection Grid and Forensic Zooming
Speak to an expert
The Arecont Vision D4SO-AV3115DNv1-3312 surface mount outdoor dome camera combines advanced imaging technology with robust design for superior surveillance. Boasting a 3 megapixel resolution and a versatile 3.3-12mm vari-focal lens, this camera ensures high-quality imagery even in challenging lighting conditions. With features like dual encoding, multi-streaming, and IP66 weather resistance, it delivers flexibility and reliability for outdoor applications.
Arecont Vision D4SO-AV3115DNv1-3312 Camera Features
- All-In-One Outdoor Dome Solution: Includes the AV3115v1 camera, 2-axis gimbal, and IR corrected lens for comprehensive surveillance capabilities.
- Dual Encoder: Supports H.264 and MJPEG formats, providing flexibility in streaming options while ensuring high-quality video output.
- Fast Image Rates: Achieves up to 21 fps for sharp, clear video, ideal for monitoring fast-moving subjects.
- PSIA Compliance: Ensures seamless integration with third-party software and systems, enhancing compatibility and performance.
- Multi-Streaming: Offers flexible cropping and bit rate control for customized video management tailored to user needs.
- Advanced Privacy Features: Includes privacy mask, extended motion detection grid, and forensic zooming for enhanced security and surveillance precision.
- Power Options: Utilizes PoE and auxiliary power input, allowing versatile installation options with 12-48 VDC or 24 VAC.
- Low Light Performance: Binning mode significantly improves video quality in low light conditions, ensuring continuous monitoring.
- Outdoor Design: Specifically engineered for outdoor applications, ensuring durability and reliability in various weather conditions.
- Vandal Resistant: Built to withstand physical attacks, enhancing the security of your surveillance investment.
- IP66 Rating: Provides excellent protection against dust and water ingress, making it suitable for outdoor environments.
Arecont Vision D4SO-AV3115DNv1-3312 Detailed Specifications
| Camera Resolution | 3 Megapixels |
| Lens Type | 3.3-12mm Vari-Focal |
| Image Rate | Up to 21 fps |
| Encoding Formats | H.264, MJPEG |
| Power Supply | 12-48 VDC / 24 VAC |
| Weather Resistance | IP66 |
| Dimensions | Varies by installation |
| Weight | Varies by configuration |
SKU  | D4SO-AV3115DNv1-3312 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Arecont Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.3-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12-48vDC, 24vAC, PoE |
| Dimensions (W x H) | 5.5" (140.3mm) x 4.9" H (124.6mm) |
| Image Device | 1/2.5” CMOS |
| Minimum Scene Illumination | 0 Lux, IR sensitive |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Temperature | -20°C (-4 °F) to +60°C (140 °F) |
| Power Consumption | 4.5 Watts maximum |
| Protocols | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP |
| S/N Ratio | 44.1 dB |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Rotation Angle | 180 degree |
| Motion Detection Tracking | 1024 detection zones |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
