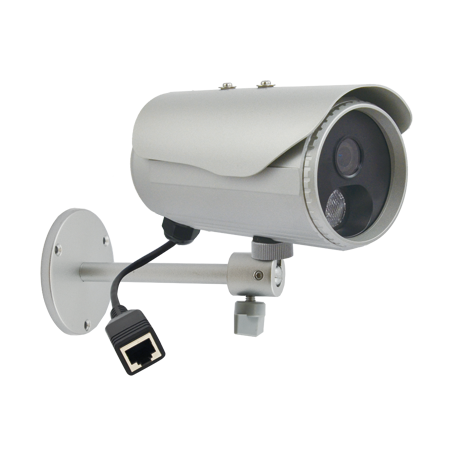

ACTi D32 3 Megapixel IR Outdoor Day/Night Bullet Camera, 4.2mm Lens
Model No
D32
$214.65
Product Highlights
- 3 Megapixel with 720p
- Day & Night with IR LED
- Fixed Lens with f4.2mm/ F1.8
- 30 fps at 1920 x 1080
- Weatherproof (IP66)
Speak to an expert
The ACTi D32 3 Megapixel Day/Night IR Bullet Camera with Fixed Lens is designed to provide high-quality surveillance in various lighting conditions. With its powerful Progressive Scan CMOS image sensor, it captures stunning images at a high resolution of 2048 x 1536, ensuring optimal performance and reliability.
ACTi D32 Camera Features
- 3 Megapixel Resolution: Capture detailed images for effective surveillance with a crystal-clear resolution of 2048 x 1536 and 720p support.
- Day & Night Functionality: Equipped with IR LED, this camera delivers excellent performance in low-light conditions, ensuring 24/7 surveillance.
- Fixed Lens: The 4.2mm lens with an F1.8 aperture allows for wide field-of-view and enhanced light sensitivity, facilitating versatile monitoring setups.
- High Frame Rate: Supports 30 fps at 1920 x 1080 resolution for smooth video playback, making it ideal for capturing fast-moving subjects.
- Weatherproof Design: With an IP66 rating, the camera is protected against dust and rain, making it suitable for outdoor installations in various weather conditions.
Detailed Camera Specifications - ACTi D32
| Feature | Details |
|---|---|
| Model | ACTi D32 |
| Resolution | 2048 x 1536 (3 Megapixel) |
| Lens | Fixed, 4.2mm, F1.8 |
| Frame Rate | 30 fps at 1920 x 1080 |
| IR Night Vision | Yes, with IR LED |
| Weatherproof Rating | IP66 |
| Sensor Type | Progressive Scan CMOS |
| Day/Night Capability | Yes |
SKU  | D32 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 77 mm x 176 mm (3.0" x 6.9'') |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| IR LEDs | 1 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 4.88 W (IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP66 |
| Angle of View | 62.7° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 20m |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
